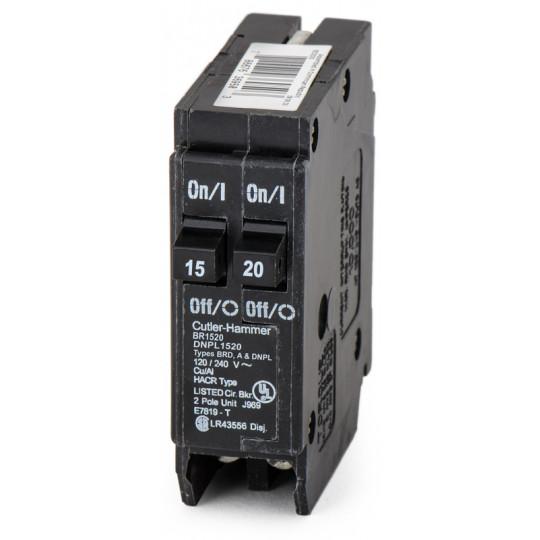

Cutler & Hammer BR1520 Tandem Circuit Breaker

Product Description

The Cutler & Hammer BR1520 is a single-pole tandem circuit breaker suitable for installation in Type BR load centers. This thermal-magnetic circuit breaker offers protection against overloads and short circuits. It features a ten kAIC interrupt rating and is compatible with copper or aluminum wire sizes ranging from fourteen to four AWG. The product meets UL 489 standards and is CSA certified.

• Single-pole design
• For 120/240V systems
• Easy plug-on mounting

Product Highlights

Reliable protection for residential and commercial electrical systems with an easy installation process.

Product Information

Standard Information

• Product Name: Eaton BR thermal magnetic circuit breaker
• Manufacturer Part Number: BR1520

Technical Specifications

• Certifications: UL 489
• Interrupt Rating: 10 kAIC
• Voltage Rating: 120/240 V
• Amperage Rating: (1) 20A, (1) 15A
• Number Of Poles: Single-pole
• Wire Size: #14-4 AWG Cu/Al
• Mounting Method: Plug-on
• Used With: Type BR Loadcenters
• Type: Type BR 1-Inch plug-on circuit breaker
• Product Length/Depth: 1 in
• Product Height: 2.5 in
• Product Width: 2.9 in
• Product Weight: 0.4 lb
• UPC: 786676370103
