Product Description

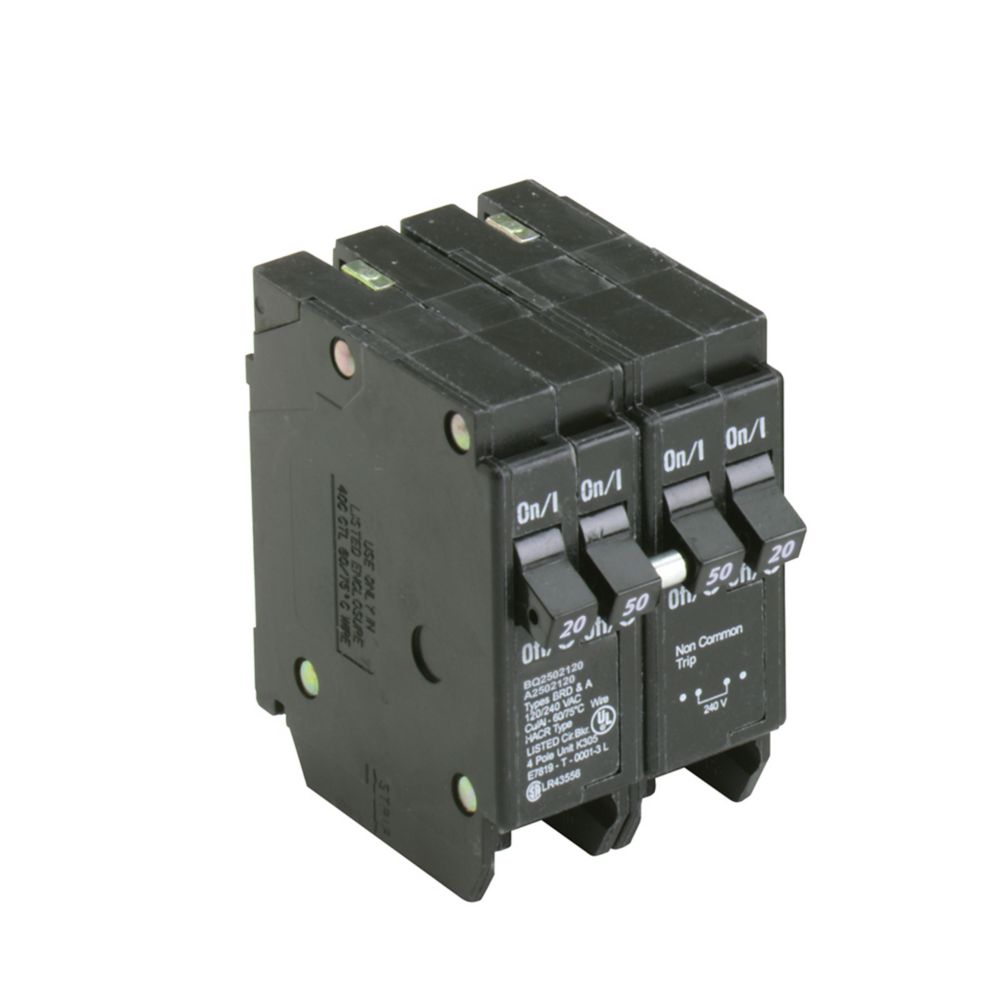

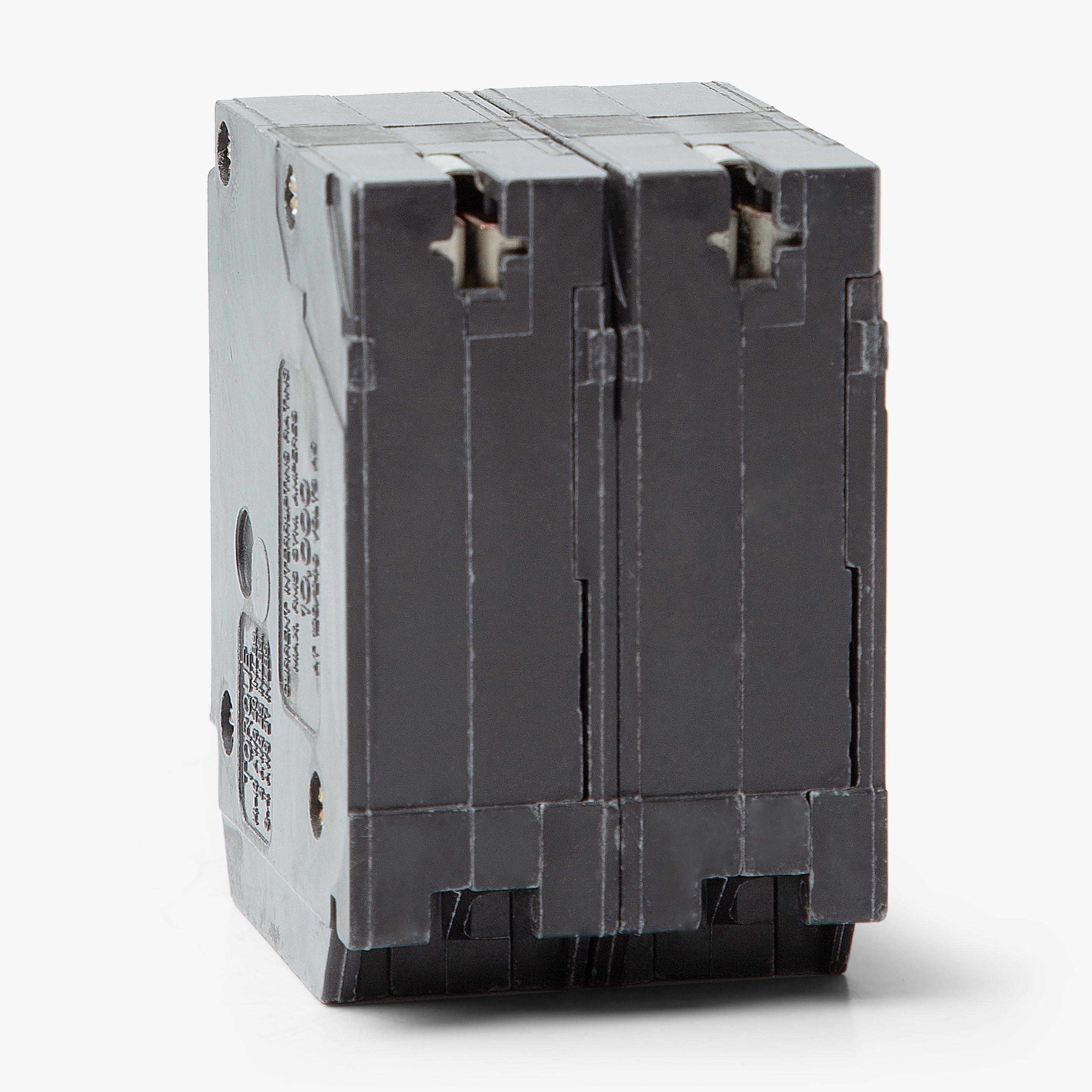

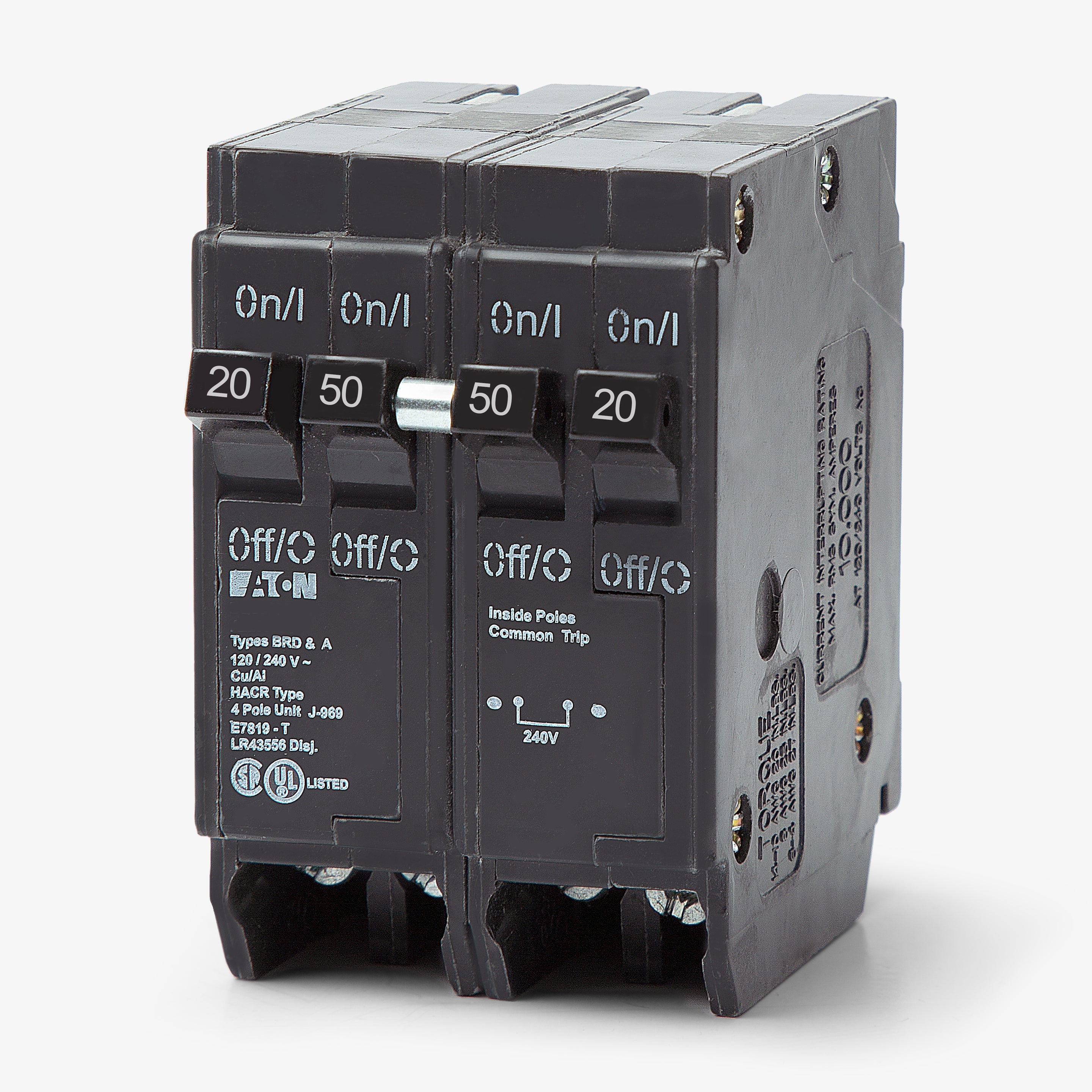

The CUTLER & HAMMER BQ2502120 is a 4-pole tandem circuit breaker rated at 120/240 volts and 20/50 amps. It is designed for use with all type BD duplex and BQ quadplex and is listed for HACR applications. This quadplex breaker delivers high-density circuit protection and fits into a standard two-pole space.
- 4-pole tandem circuit breaker
- Rated at 120/240 volts
- 20/50 amps
Product Highlights
The Cutler-Hammer BQ2502120 circuit breaker provides reliable circuit protection in residential and commercial applications.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: BQ2502120
Technical Specifications
-
Brand: CUTLER & HAMMER
-
MPN: BQ2502120
-
Type: Thermal Magnetic Circuit Breaker
-
Application: HACR
-
Voltage: 120/240 VAC
-
Amperage: 20/50A
-
Series: BQ
-
Poles: 4
-
Phase: 1
-
AIC Rating: 10kA @ 120/240VAC
-
Special Classification: Quadplex
-

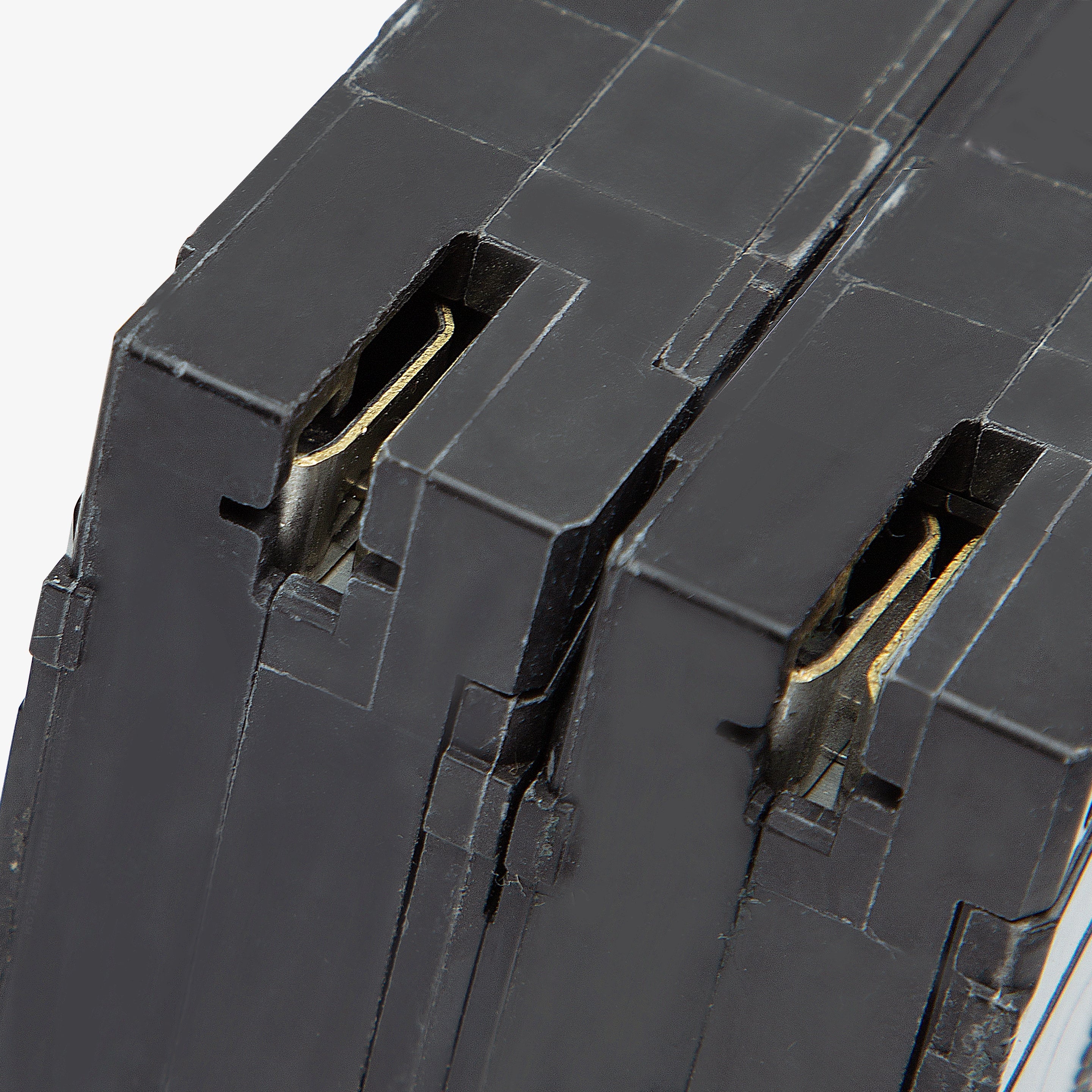

Mounting Style: Plug-On
-

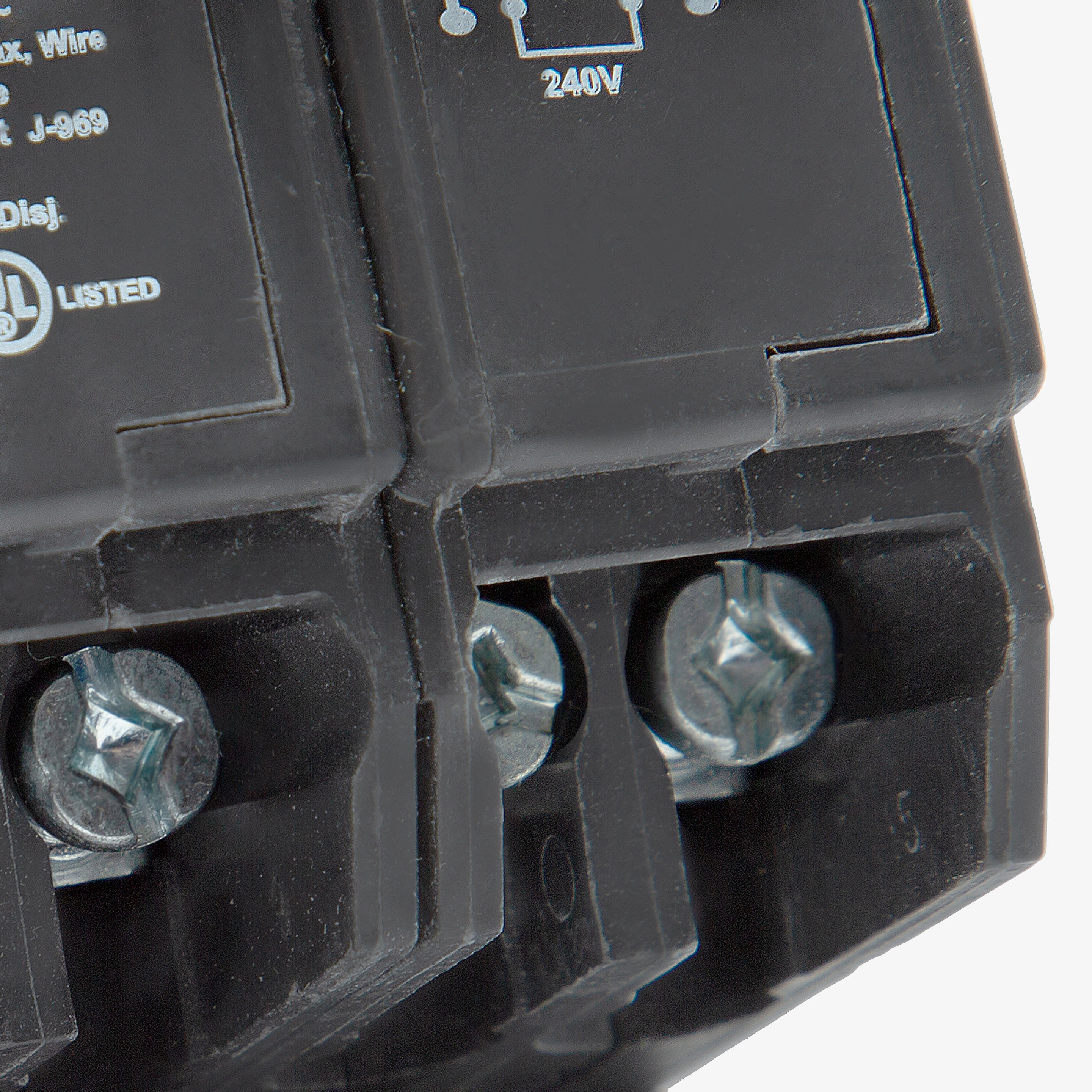

Terminal Type: Box Lugs
-
For Use With: Eaton BR Load Centers, Westinghouse Load Centers, Bryant Load Centers, Challenger Load Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-4 AWG
-
Max Wire: 4 AWG
-
Min Wire: 14 AWG
-
Available Options: Padlock Attachment
-
Accessories: Rejection Tab
-
Standards: CSA C22.2 No. 5, Federal Specification W-C375, UL 489
-
Approval: UL, CSA. CE
-
Temp Rating: 60C to 75C
-
Interrupting Rating (kA): 10
-
HACR Rated: Yes
-
OEM: Eaton Cutler-Hammer
-
Model: BQ2502120
-
Connection: Plug-on
-
Interrupting Capacity: 10k rated @ 240VAC
-
Trip: Fixed Trip
-
Manufacturer: Eaton Cutler-Hammer
-
Volt: 120/240V at 50A, 120V at 20A
-
Category: Quad Breakers
-
Trip Type: Independent
-
Circuit Breaker Type: BQ
-
Interrupt Rating: 10 kAIC
-
Special Features: Includes rejection tab feature
-
Used With: Type BR Loadcenters
-
Product Name: Eaton BR thermal magnetic circuit breaker
-
Catalog Number: BQ2502120
-
UPC: 786676371759
-
Compliances: Federal Specifications Classification W-C375
-
Certifications: UL 489
-
Product Type: Thermal magnetic circuit breakers
-
Wire size: #14-4 AWG Cu/Al
