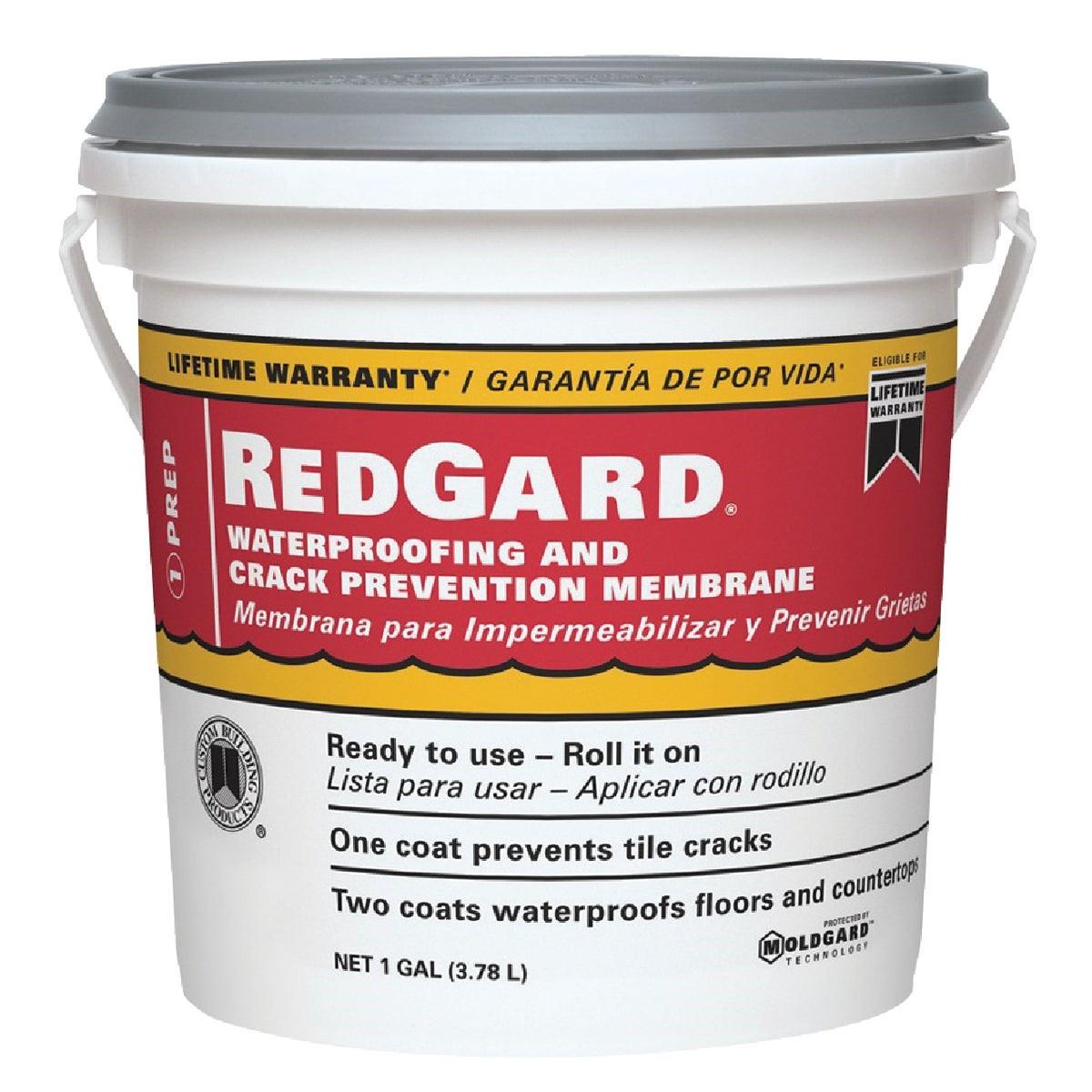

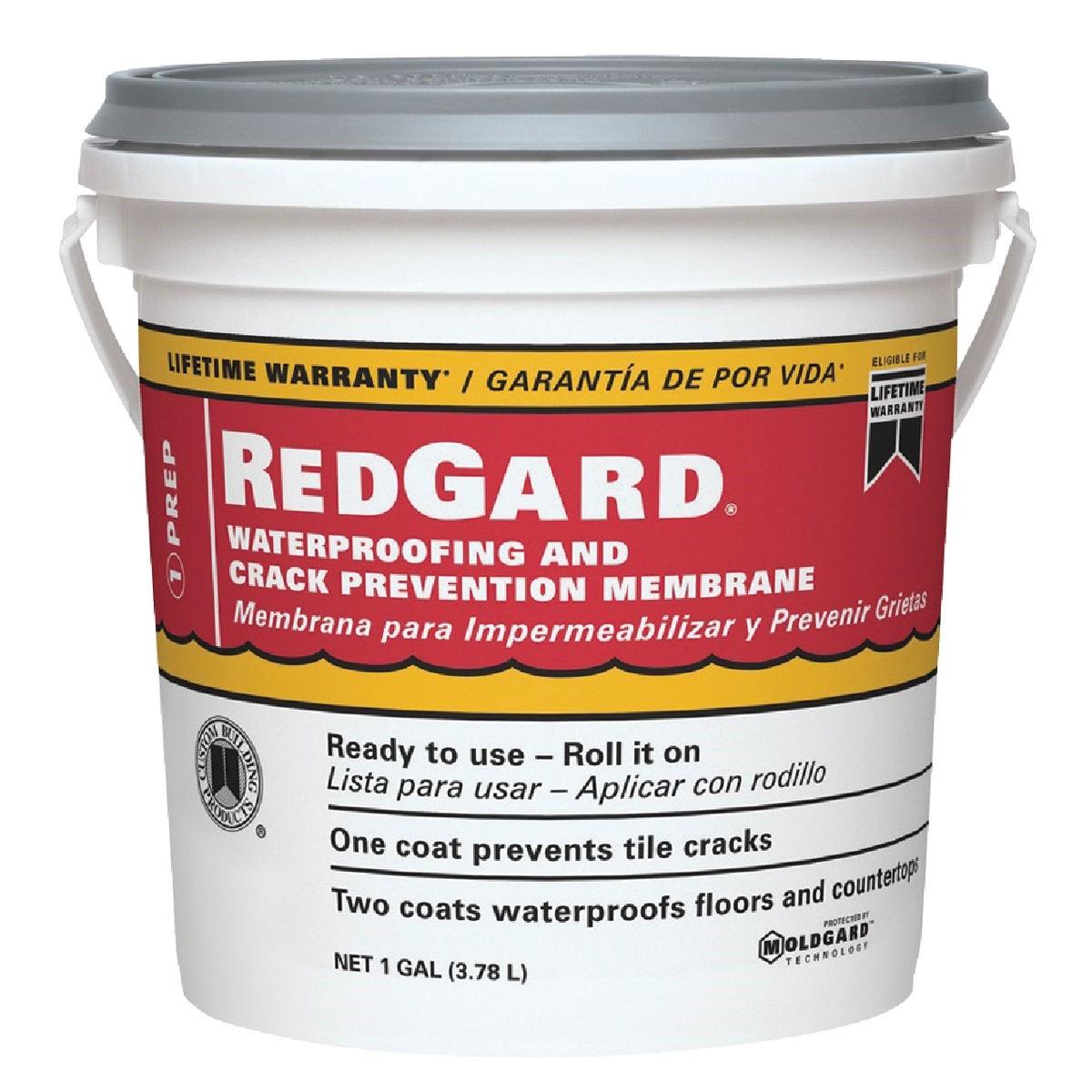

Custom Building Products LQWAF1-2 Redgard Waterproofing Membrane 1 Gal

Product Description

The CUSTOM BUILDING PRODUCTS LQWAF1-2 RedGard is a ready-to-use elastomeric waterproofing and crack prevention membrane for tile and stone installations. Applied by roller, trowel, or sprayer, it forms a continuous moisture barrier with strong adhesion to a range of substrates. As a waterproofing membrane, one gallon covers 35 to 40 square inches at 93 mil wet thickness and 47 mil dry thickness. As a crack prevention membrane, coverage extends to 110 square feet at 30 mil wet thickness. The product meets ANSI A118.10 for waterproofing membranes and the Uniform Plumbing Code specification for use as a shower pan liner. It is listed with IAPMO R and T, file No. 4344 UPC, and carries ICC-ES ER-6014 approval.

RedGard LQWAF1-2 is suited for both interior and exterior commercial and residential tile and stone installations. Approved substrates include concrete, cement backer boards, Wonderboard, exterior-grade plywood in interior dry areas for crack isolation only, exterior decks, and gypsum drywall. It can also serve as a slab-on-grade moisture barrier under resilient flooring when installed per the Custom E-Cap moisture barrier system technical bulletin. Typical applications include shower assemblies, wet areas, and floor crack isolation membranes.

Key Features

• Meets ANSI A118.10 waterproofing membrane standard
• Meets Uniform Plumbing Code specification for shower pan liner use
• ICC-ES ER-6014 listed; IAPMO R and T listed, file No. 4344 UPC
• Applicable by roller, trowel, or sprayer for continuous coverage
• Functions as crack prevention membrane at 30 mil wet or waterproofing membrane at 93 mil wet
• Compatible with slab-on-grade moisture barrier applications under resilient flooring

Compatibility

Designed for use on concrete, cement backer boards, Wonderboard, exterior-grade plywood (interior dry areas, crack isolation only), exterior decks, and gypsum drywall in residential and commercial tile and stone installations.

Installation Notes

Installation is typically performed by a licensed tile setter or flooring contractor. Shut off water supply and ensure substrate is clean, dry, and structurally sound before application. Apply in accordance with ANSI A108 installation standards and local plumbing code requirements. For slab-on-grade moisture barrier use under resilient flooring, follow the Custom E-Cap moisture barrier system technical bulletin for specific application instructions.

Technical Specifications

• Coverage (Crack Prevention Membrane): 110 square feet per gallon at 30 mil wet thickness
• Coverage (Waterproofing Membrane): 35 to 40 square feet per gallon at 93 mil wet thickness, 47 mil dry thickness
• Container Size: 1 gallon
• Weight: 11.275 pounds
• Standards: ANSI A118.10, Uniform Plumbing Code, ICC-ES ER-6014, IAPMO R and T file No. 4344 UPC

Standard Information

• Brand: CUSTOM BUILDING PRODUCTS
• Manufacturer Part Number: LQWAF1-2
