Crouse Hinds TP275 Steel Ceiling Fan Box 1-1/2-Inch 15.5-Cubic-Inch

Product Description

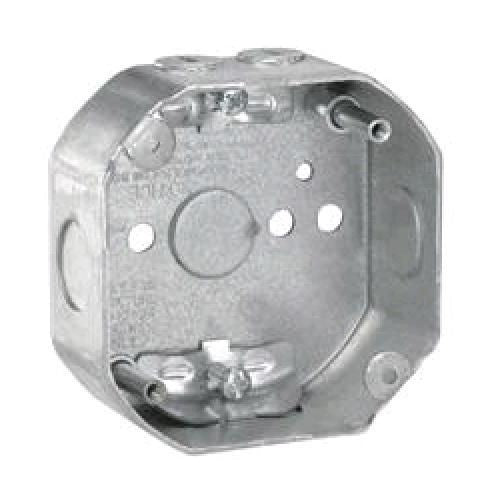

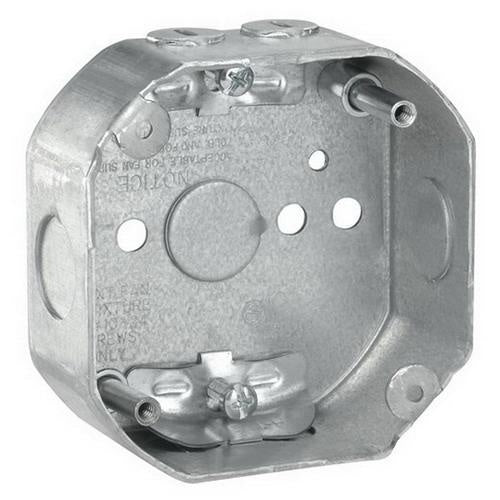

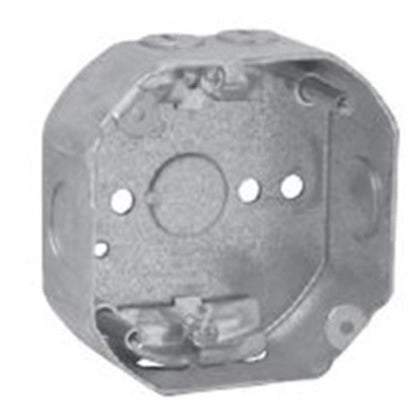

The Crouse-Hinds TP275 ceiling fan box has a maximum capacity of 15.5 cubic inches and features steel construction. The box has a depth of 1-1/2 inches and includes polybagged clamps. It mounts directly to the stud for a secure installation. The box has four cable end knockouts, two 1/2-inch knockouts at the sides, and one 1/2-inch knockout at the bottom.

• Knockouts Size: (4) Cable End, (2) 1/2-Inch Side, (1) 1/2-Inch Bottom
• 70 lb Maximum for fans, 90 lb maximum for fixtures
• Has maximum capacity of 15.5-Cubic-Inch

Product Highlights

The Crouse-Hinds TP275 is a steel ceiling fan box with a 15.5 cubic inch capacity and multiple knockouts for easy installation. UL listed.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP275
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Shape: Octagonal
• Number of Knockouts: 7.0000
• Mounting: Screw
• Knockouts: (4) Cable End, (2) 1/2 Inch Side, (1) 1/2 Inch Bottom
• Cubic Capacity: 15.5
• Depth: 1.5
• Item Name: Ceiling Fan Box
• Includes: Polybagged Clamps
• UPC: 78618910275
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP275
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121316
• GTIN: 00786189102758
• Box size: 4"
• Capacity: 15.5 cubic in
• Cable knockouts: 4
• Side knockouts: (2) 1/2 in
• Bottom Knockouts: (1) 1/2 in
• Built-in clamps: Yes
• Special features: Fan rated, fixture rated
• Cubic Inches: 15.500 in³
