Crouse Hinds RE32 Reducer 1 x 3/4 Inch

Product Description

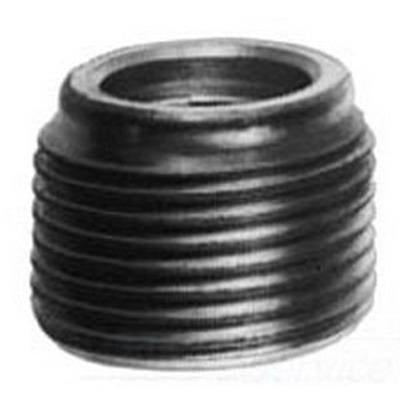

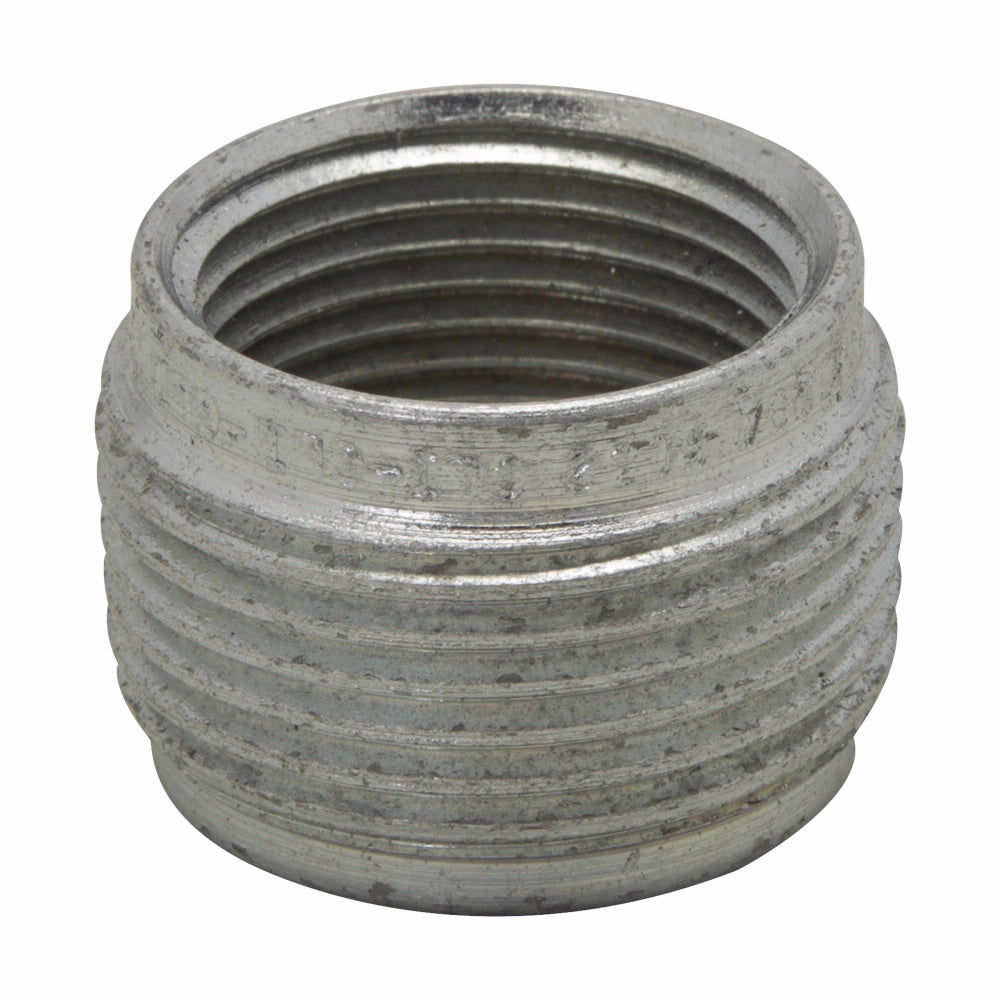

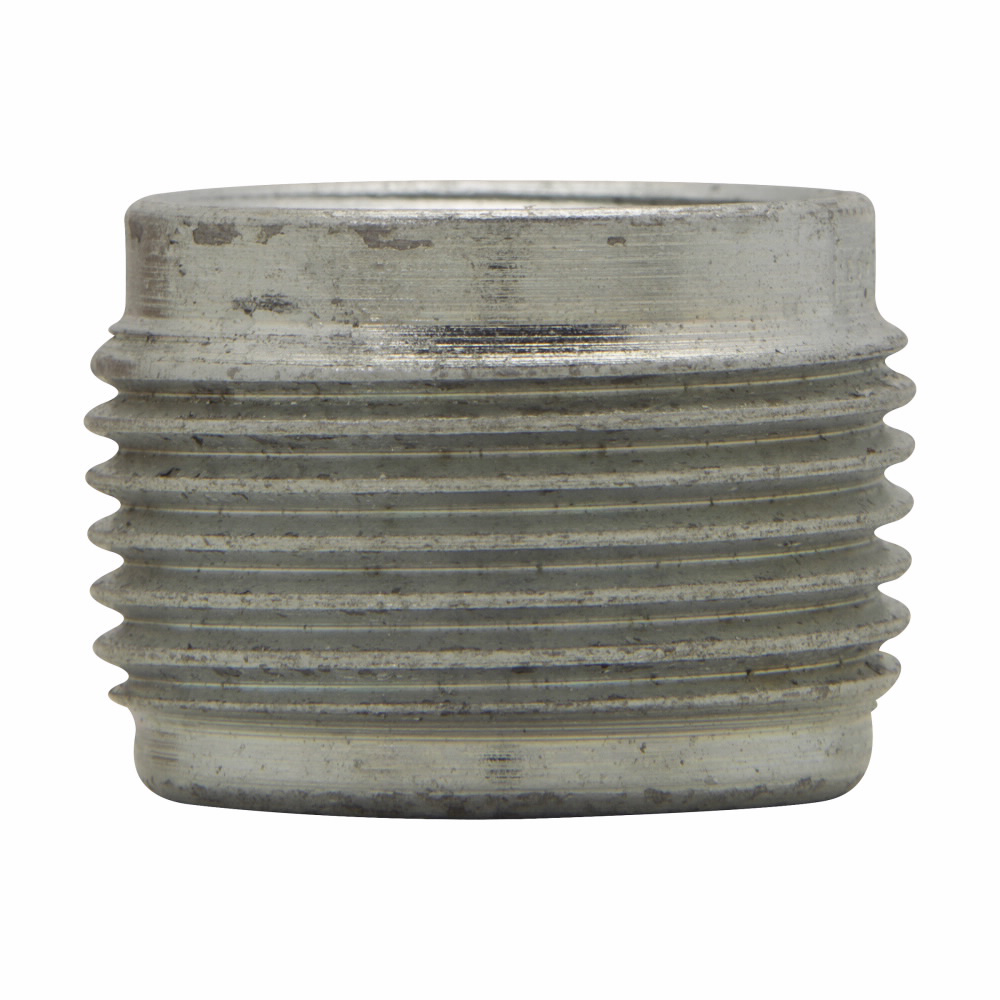

The CROUSE HINDS RE32 is a reducer designed for Rigid/IMC conduit systems. It features a 1-inch NPT end and a 3/4-inch NPT end, constructed from steel with a chromate treatment electro-galvanized finish. This bushing is suitable for use in threaded heavy wall conduit systems.

• Steel construction with chromate treatment electro-galvanized finish
• Integral bushing prevents damage to wire
• Full, clean cut tapered threads for easy connection

Product Highlights

Explosion-proof and dust-ignition-proof, this reducer is UL listed, CSA certified, and meets NEC/CEC standards. It reduces conduit hubs to a smaller size.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: RE32
• Country of Origin: United States of America

Technical Specifications

• Brand: CROUSE HINDS
• MPN: RE32
• Trade Size: 1-Inch x 3/4-Inch
• Construction: Steel
• Finish: Chromate treatment electro-galvanized
• Type: Explosionproof, Dust-Ignitionproof
• Standards: NEC/CEC Class I, Division 1 and 2, Groups A, B, C, D, Class II, Division 1, Groups E, F, G, Class II, Division 2, Groups F, G, Class III, UL Listed: 1203, 886, CSA C22.2 No.30
• Country Of Origin: United States of America
• Material: Steel
• Item Name: Reducing Bushing
• For Use With: Threaded Heavy Wall Conduit System
• Connection Type: Threaded
• Brand Name: Crouse-Hinds
• Manufacturer Name: Cooper Crouse-Hinds
• UPC: 78227458970
• Size: 1 To 3/4 In
• Reducer Type: Reducer
• Standard: UL 886; CSA C22.2
• Enclosure: Class I Div 1 2 Group A B C D; Class II Div 1 Group E F G; Class II Div 2 Group F G; Class III
• Application: Ind Facilities -N- Factories - Industrial Facilities/Factories - Other
• Family group: FITTINGS
• Manufacturer: CROUSE HINDS
• Special Features: Reducing fitting
• Product Name: Eaton Crouse-Hinds series RE reducer
• Catalog Number: RE32
• Product Length/Depth: 1.29 in
• Product Height: 1.29 in
• Product Width: 0.92 in
• Product Weight: 0.1 lb
• Product Type: Reducer
• Area classification: Hazardous/Classified Locations
• Standards type: NEC/CEC
• NEC hazardous rating: Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
• Conduit type: Rigid/IMC
• End 1 Size: 1"
• End 1 Type: NPT
• End 2 Size: 3/4"
• End 2 Type: NPT
• Applications: Threaded Heavy Wall Conduit
• TC Connection: Threaded
• Sub Brand: Reducer
• 12-Digit UPC: 782274589701
