Description

Product Description

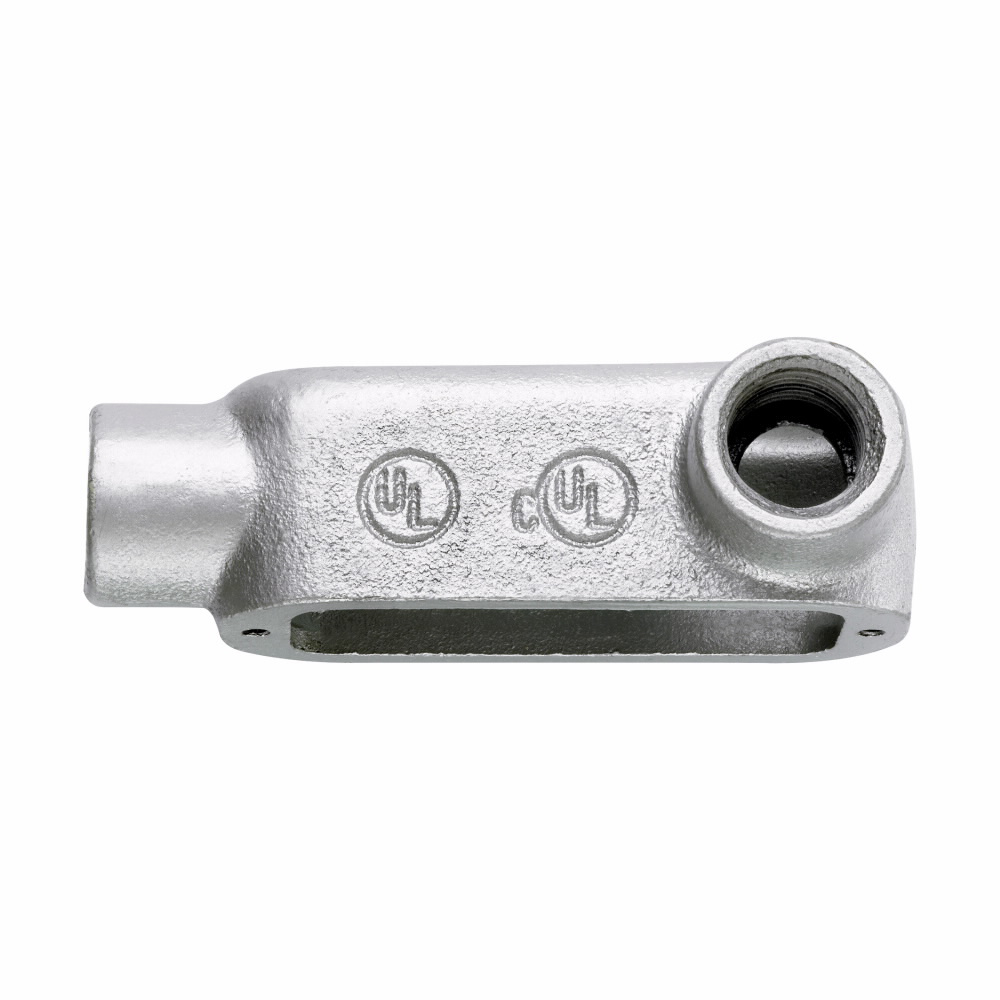

The Eaton Crouse-Hinds series LR100M Condulet Form 5 conduit outlet body is made of malleable iron and has an LR shape with a 1-inch hub size. It is designed for threaded rigid/IMC conduit systems in commercial and industrial applications. It makes 90-degree bends in conduit runs and serves as pull outlets.

  • Features malleable iron construction
  • Has trade size of 1-Inch
  • Measures 6.2-Inch x 2.65-Inch x 1.9-Inch

Product Highlights

The conduit outlet body offers easy access to conductors, high impact resistance, and corrosion resistance. It is UL listed and CSA certified.

Product Information

Standard Information

  • Brand: Crouse Hinds
  • Manufacturer Part Number: LR100M
  • Country of Origin: Multiple Countries
Technical Specifications
Form
Form 5
IGCC
5563
Type
Conduit outlet body
Width
2.65 in
Finish
Aluminum
Height
1.9 in
Length
6.20 In
Hub Size
1 in
Material
Malleable Iron
Standard
UL 514B; CSA C22.2; CUL
Sub Brand
Condulet
Brand Name
Eaton
Dimensions
6.2000 IN X 1.9000 IN X 2.6500 IN
Application
Commercial / Institutional Buildings / Structures - Commercial / Institutional B
Family group
FITTINGS
Manufacturer
CROUSE HINDS
Trade Size
1 Inch
Standards
UL 514B Listed, CSA C22.2 No.18, Federal Specification: W-C-586D
Conduit Body Style
Type LR
Conduit Body Form
Form 5
NEMA Rating
NEMA 3R
Number of Hubs
2.0000
Cover Type
Screw-On
Access
Right Side
Conductor Capacity
4 AWG
Connection Type
Threaded
Cubic Capacity
12.5
Electrogalvanized with Aluminum Acrylic Painted
Electrogalvanized with Aluminum Acrylic Painted
For Use With
Rigid Conduit
Hub Placement
90 Degree
Item Name
Conduit Outlet Body
Country Of Origin
Multiple Countries
Manufacturer Part Number
LR100M
UPC
78227475605
Manufacturer Name
Cooper Crouse-Hinds
GTIN
00782274756059
UNSPSC
39131708
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LR100M
Product Length/Depth
6.2 in
Product Height
2.65 in
Product Width
1.9 in
Product Weight
1.57 lb
Product Type
Conduit outlet body
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Trade size
1"
Applications
Rigid/IMC Conduit
Form Type
5
Brand
Crouse-Hinds
12-Digit UPC
782274756059
Product UPC
78227475605
ECCN
EAR99
Capacity
12.5
