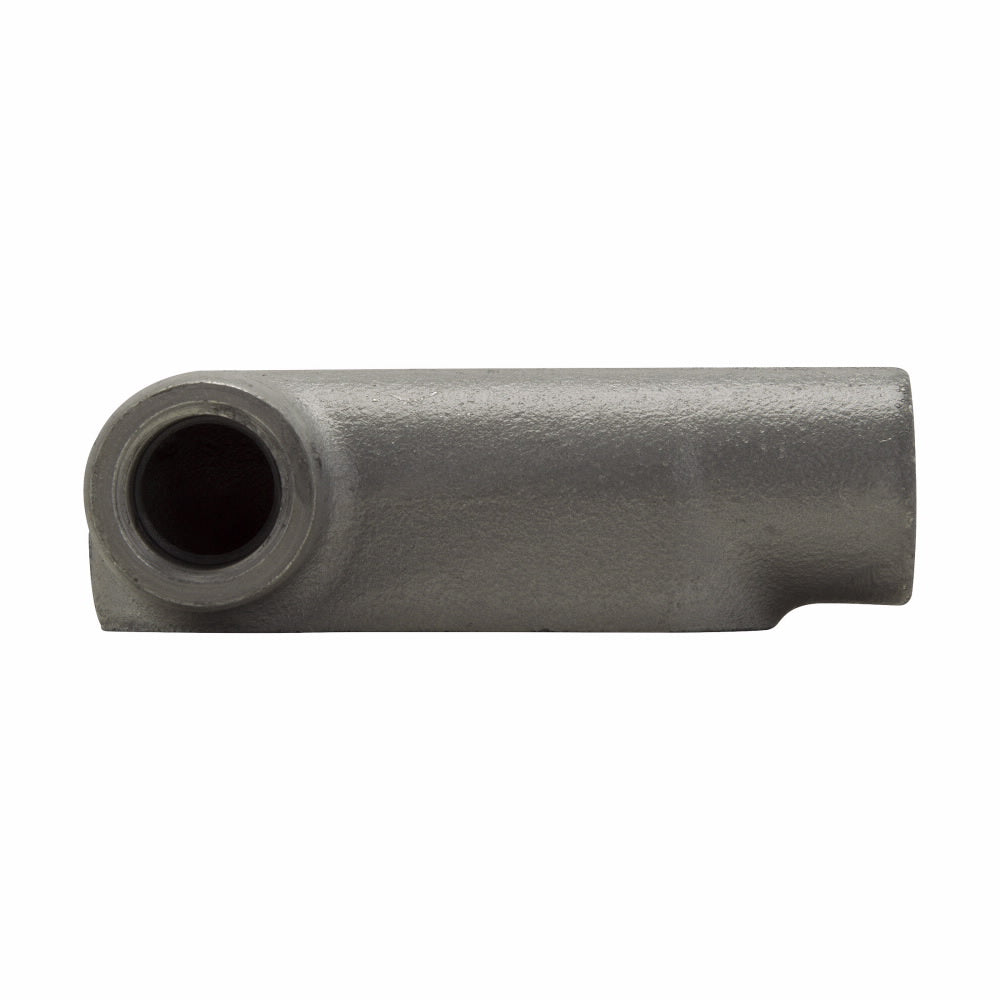

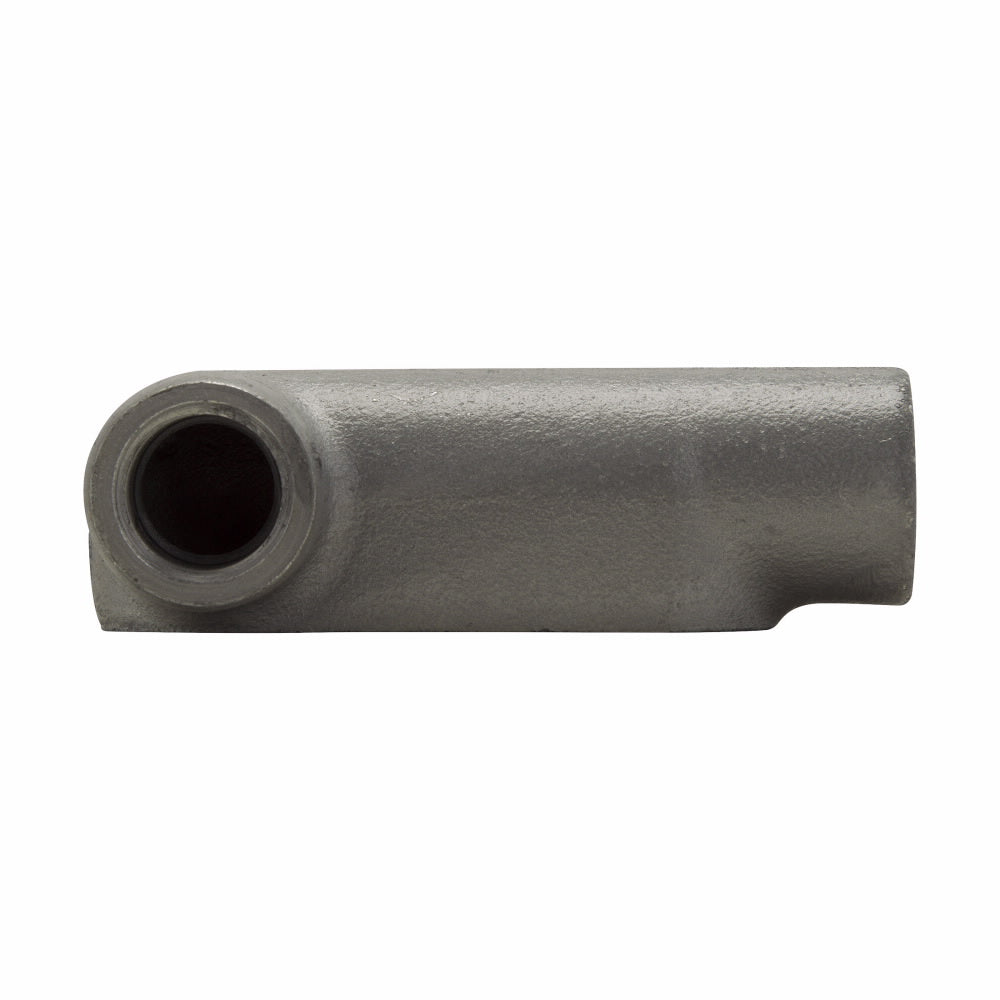

Crouse-Hinds LL17 Conduit Outlet Body 1/2 in Hub Type LL

Product Description

The Crouse-Hinds LL17 is a conduit outlet body with a half-inch hub. The product is made from Feraloy iron alloy and designed for rigid conduit applications. It serves as a pull outlet for conductors, allowing for splices and taps. This model includes two hubs and follows an exclusive Form 7 design.

• Application suitable for rigid conduit installations.
• Comes with tapered threaded hubs for wire insulation protection.
• Features exclusive Snaptight cover for easy access.

Product Highlights

Reliable outlet body for electrical installations in various environments.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer Part Number: LL17

Technical Specifications

• Material: Feraloy iron alloy
• Finish: Aluminum acrylic painted/electro-galvanized
• Hub Size: half inch
• Number of Hubs: 2
• Dimensions: four and nine-sixteenths inches long x two and one-fourth inches wide x one and three-eighths inches high
• Connection Type: Threaded
• Standards/Approvals: UL 514B, CSA C22.2 No. 18, Federal Specification W-C-586D, NEC Compliant, CEC Certified
• Application: Designed for use as pull outlets for conductors, providing openings for splices and taps.
