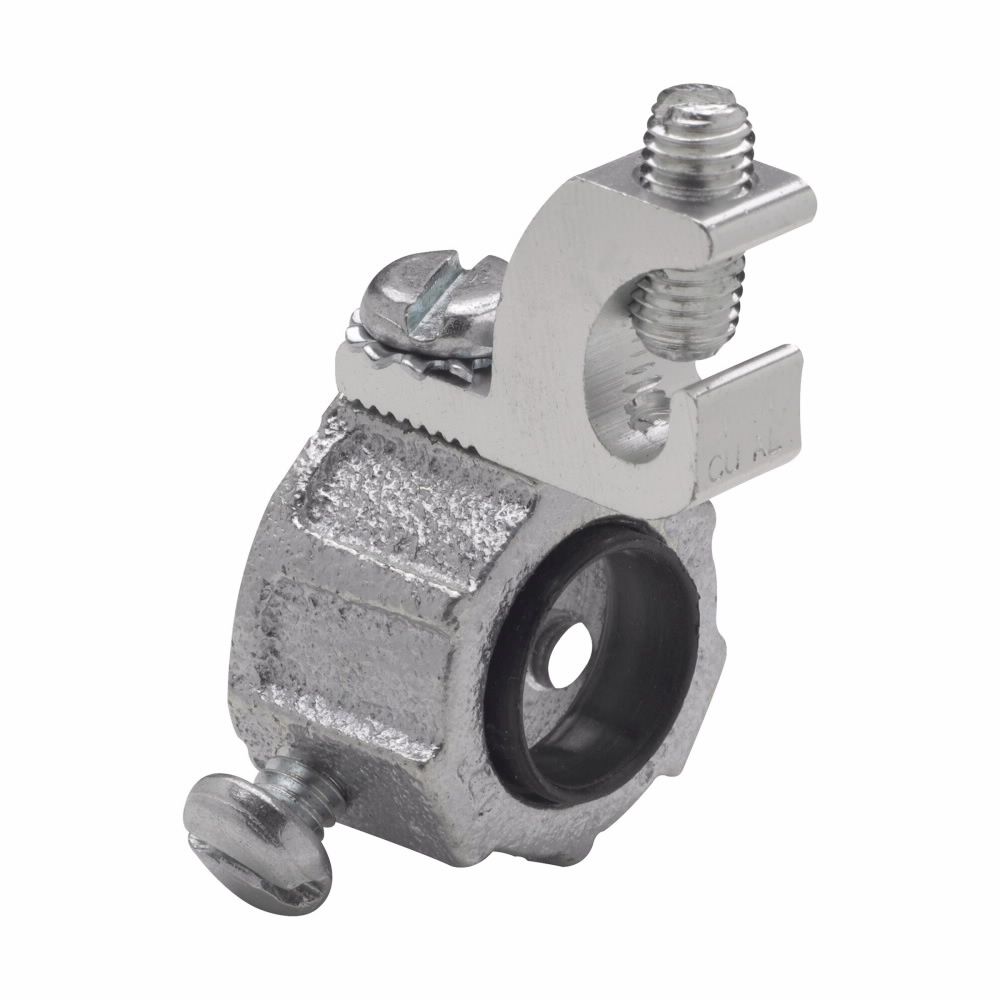

Crouse-Hinds HGLS2 Grounding Bushing 3/4 Inch Set Screw

Product Description

The Crouse-Hinds HGLS2 is a grounding bushing made from malleable iron. This product has a set screw connection and is suitable for use with both threaded and threadless rigid and IMC conduit. It is designed to provide reliable grounding through its insulated bushing. The HGLS2 is rated for a maximum temperature of one hundred fifty degrees Celsius and is compatible with aluminum lugs for copper and aluminum grounding conductors.

• Grounding bushing for rigid and IMC conduit
• Rated for a maximum temperature of one hundred fifty degrees Celsius
• Made from malleable iron with a zinc finish

Product Highlights

The Crouse-Hinds HGLS2 is ideal for commercial and institutional applications, providing effective grounding solutions for electrical systems.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Brand: Crouse-Hinds

Technical Specifications

• Catalog Number: HGLS2
• Trade Size: 3/4 Inch
• Material: Malleable Iron Body, Plastic Throat Liner
• Connection: Set Screw
• Finish: Zinc Plated
• Height: 1-1/2 Inch
• Length: 2-1/4 Inch
• Weight: 0.1 lb
• Temperature Rating: 150 Degrees C
• UPC: 784564113764
