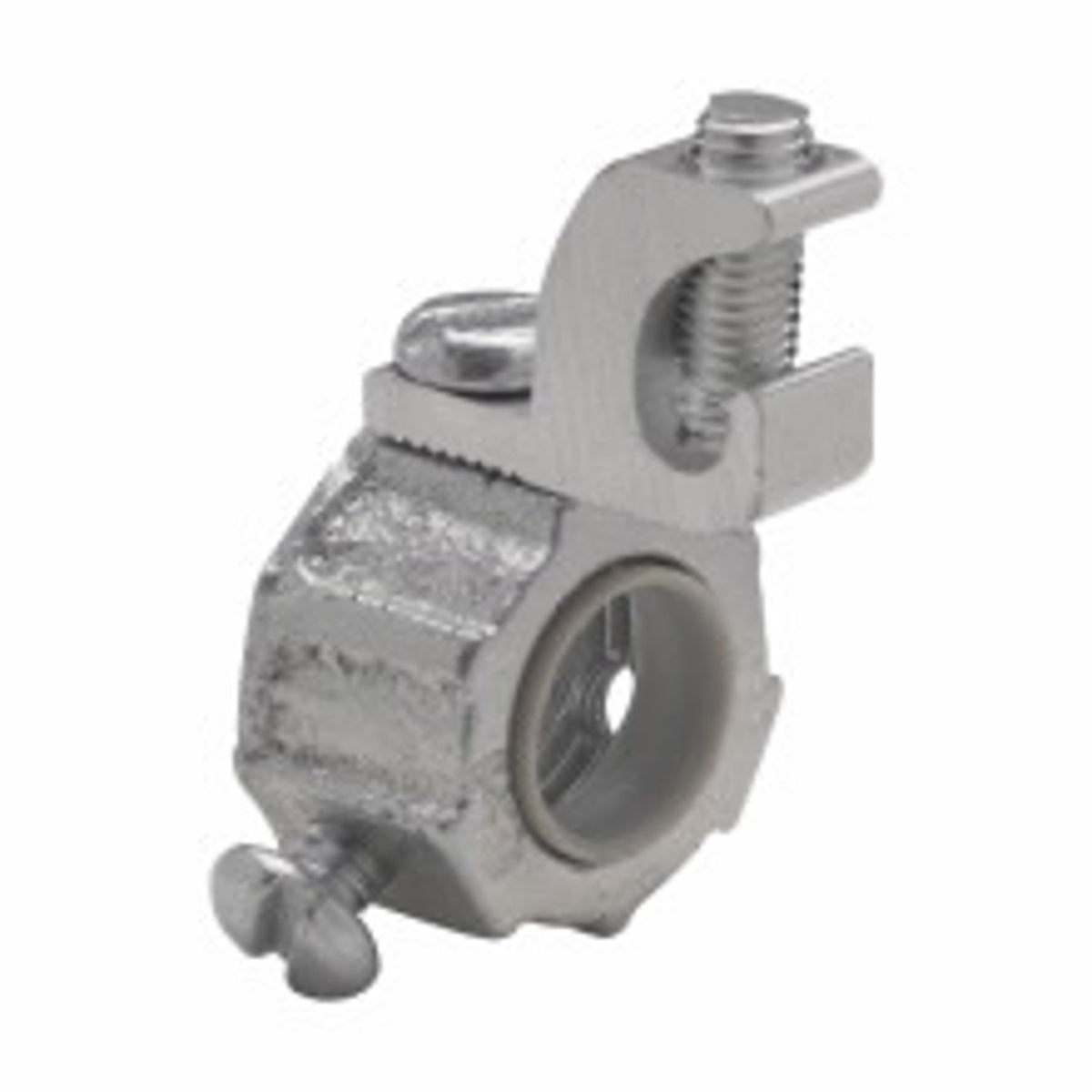

Crouse-Hinds GLL11250 Ground Bushing 5 inch

Product Description

The Crouse-Hinds GLL11250 is a 5-inch insulated grounding bushing designed for use with rigid and IMC conduit. It features an aluminum lug and is constructed from malleable iron for durability and reliable grounding. This bushing is rated for a temperature of 105°C and is suitable for ordinary/non-hazardous locations.

• Insulated grounding bushing
• Aluminum lug
• Malleable iron construction
• Suitable for rigid and IMC conduit

Product Highlights

Provides a secure connection for conductors ranging from 250 kcmil to #6 AWG. Threaded design allows for easy installation.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: GLL11250

Technical Specifications

• Part Number: GLL11250
• Manufacturer: Crouse-Hinds
• Brand: Crouse-Hinds
• Trade Size: 5 inch
• Conduit Type: Rigid/IMC
• Lug Size: 250 kcmil-#6 AWG
• Lug Material: Aluminum
• Material: Malleable Iron
• Temperature Rating: 105°C
• Mounting Type: Threaded
• Standards: NEC/CEC
• Area Classification: Ordinary/Non-Hazardous Locations
• Insulated: Yes
• Finish: Zinc-plated
• Connection Type: Threaded
• Wire Size: 6 - 250 MCM
• Fitting Type: Grounding Bushing
• Threaded: Yes
• Ground Lug Material: Aluminum
