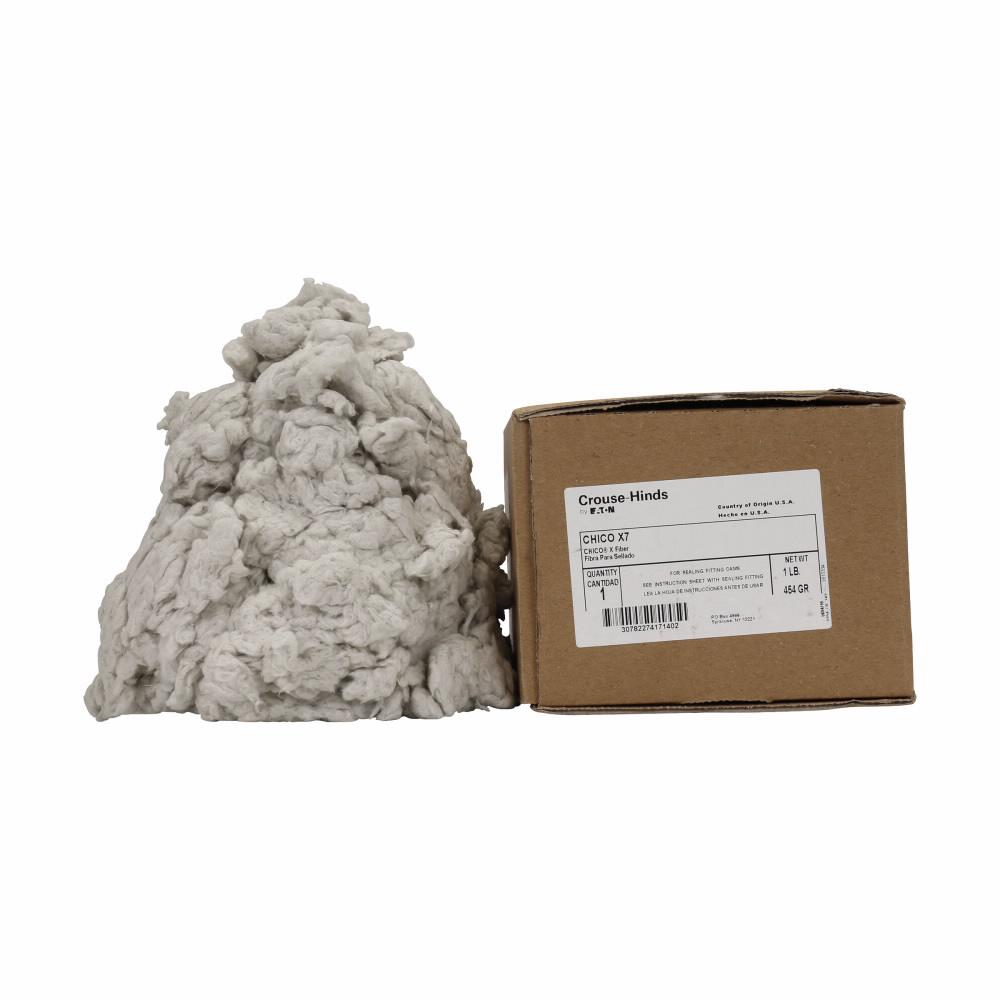

Crouse-Hinds CHICOX7 Sealing Compound 1lb Box

Product Description

The Crouse-Hinds CHICO X7 is a sealing fiber compound designed for electrical applications. This product is made from refractory ceramic fiber and comes in a one-pound box. It effectively seals around electrical conductors and within sealing fittings. The sealing compound restricts the passage of gases, vapors, and flames, ensuring safety in hazardous locations.

• Weight: 1 lb
• Material: Wool
• Application: Used to join two electrical fittings.

Product Highlights

This fiber sealing compound forms a dam between the integral bushing of the sealing fitting and the end of the conduit. It packs easily, adjusting around each conductor.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton Crouse-Hinds

Technical Specifications

• Catalog Number: CHICO X7
• UPC: 782274171401
• GTIN: 00782274171401
• Sub Brand: Chico
• Height: 6.1 inches
• Length: 6 inches
• Weight: 1.35 lb
• Temperature Rating: -40 to 165 degrees F
• Drying Time: 5 minutes
• Flammability Rating: Non-Flammable
• Specific Gravity: 3
• Application: Where two fittings need to be joined
• Standards/Approvals: Class I, Division 1, Groups A, B, C, D and Class II, Division 1, Groups E, F, G
