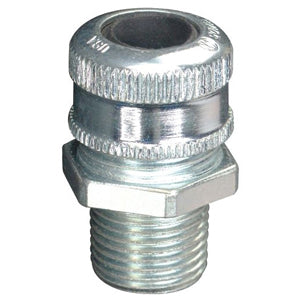

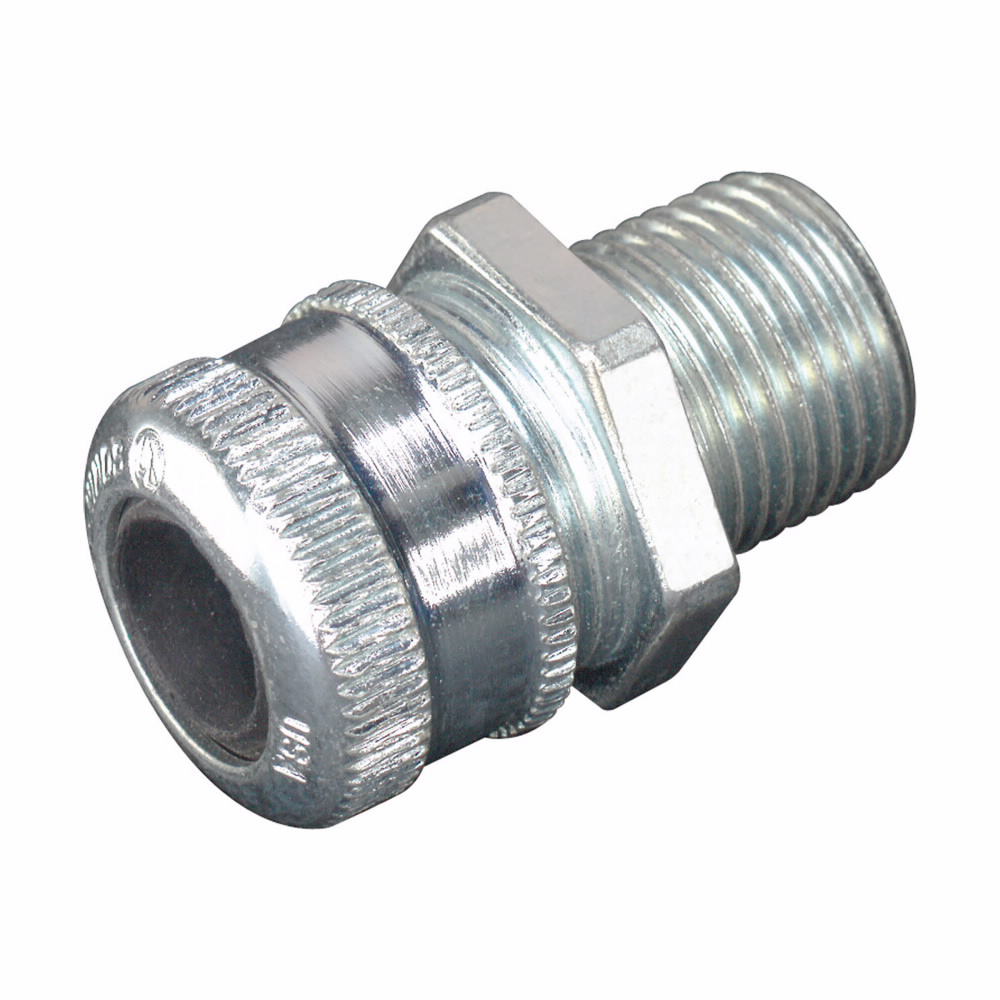

Crouse-Hinds CGB195 Non-Armoured Cord & Cable Fitting 1/2 NPT

Product Description

The Crouse-Hinds CGB195 is a non-armoured cord and cable fitting made by Eaton. It is designed for cord sizes between zero point five to zero point six two five inches and features a one half inch NPT thread. This fitting is suitable for use with non-armoured and tray cables. It is constructed from steel with zinc electroplating for added durability.

• Cable range: zero point five to zero point six two five inches
• Thread: one half inch NPT
• Application: general purpose in hazardous locations

Product Highlights

Ideal for passing cords or flexible conduits into enclosures. It offers a weatherproof seal and grounding continuity.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• UPC: 782274131306

Technical Specifications

• Catalog Number: CGB195
• Connection Type: Male NPT
• Material: Steel with Neoprene Seal
• Finish: Zinc Electroplated
• Enclosure Rating: Class I Div 2
• Operating Temperature: -25 to 40 degrees Celsius
• Approval: UL Listed, CUL
• Trade Size: 1/2 inch
