Crescent CDDS63N 1/2 inches Drive 6 Point Deep SAE Socket 15/16 inches

Product Description

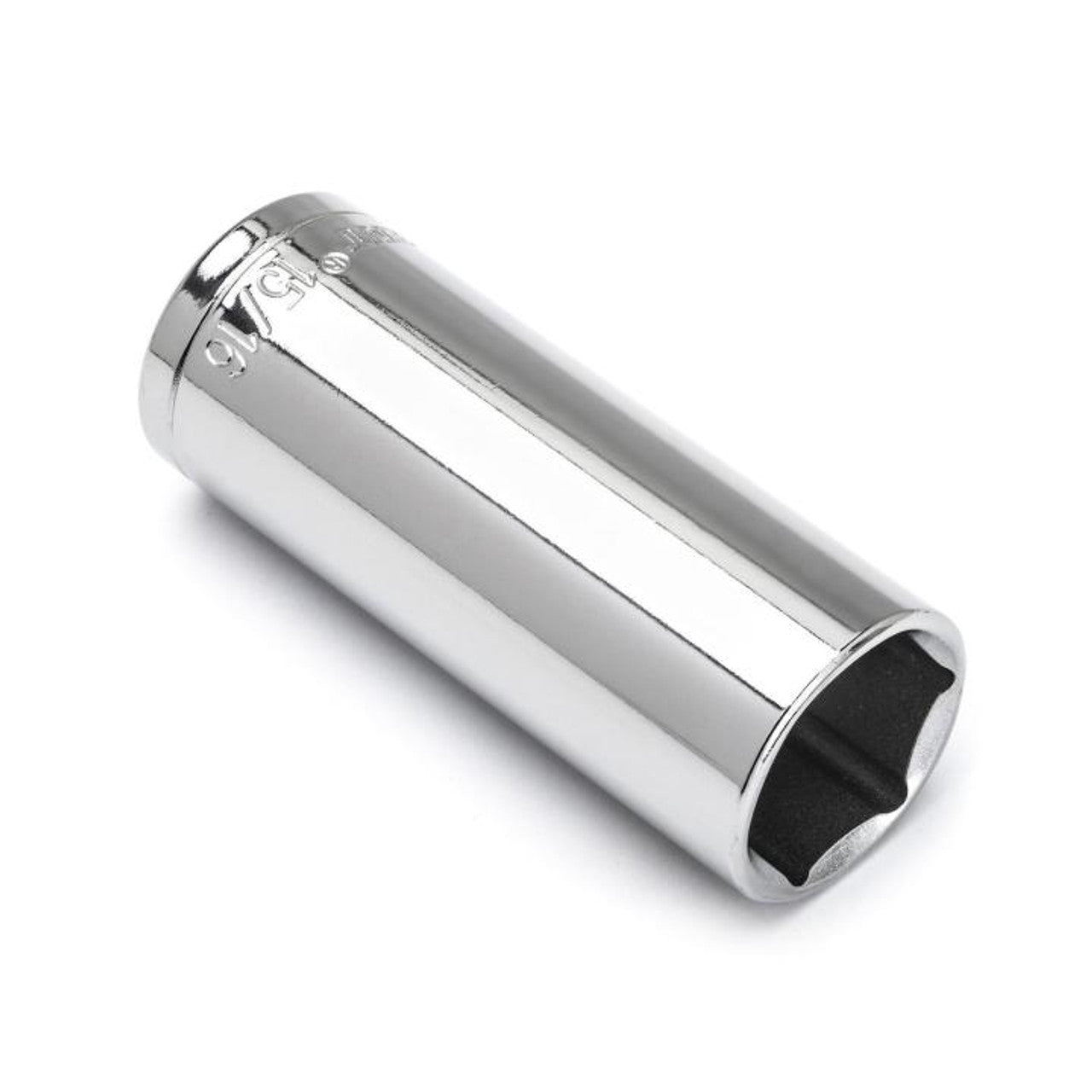

The Crescent CDDS63N 1/2" Drive 6 Point Deep SAE Socket 15/16" is designed for use with a socket wrench. Constructed from alloy steel with a polished, nickel-chrome plated finish. Features stamped size markings for quick identification and off-corner loading technology to reduce fastener rounding. Meets or exceeds ASME specifications.

• Manufactured from chrome alloy steel for better strength and longer tool life
• Off-corner loading technology to virtually eliminate fastener rounding
• Size markings stamped on socket for quick size identification

Product Highlights

This deep socket is made from chrome alloy steel with a polished finish and features off-corner loading technology.

Product Information

Standard Information

• Brand: CRESCENT
• Manufacturer Part Number: CDDS63N
• Country of Origin: CN

Technical Specifications

• Color: No Color
• Finish: Polish Finish,Mirror,Nickel Chrome Plated
• Material: Chrome Vanadium Alloy Steel
• Batteries Included?: No
• Batteries Required?: No
• Included Components: DEEP SOCKET,1/2" DRIVE,15/16",6PT
• Compatible Fastener Range: 0.5 inch
• Size: One Size
• Item Model Number: CDDS63N
• Part Number: CDDS63N
• Number of Pieces: 1
• Brand: CRESCENT
• Drive Size: 1/2"
• Socket Size: 15/16"
• Number of Points: 6
• Drive Type: 6 Point
• Measuring System: SAE
• Opening Size [Nom]: 15/16 in
• Tip Size [Nom]: 15/16 in
• Tip Type: 6 Point
• Type: Socket
• Width [Nom]: 1.25 in
• Drive Tang Size: 1/2 in
• Socket Size (SAE): 15/16 in
• Overall Length: 3.27 in
• SAE/Metric/Torx: SAE
• Fastener Size: 15/16 in
• Impact: No
• Length Format: Deep
• ASME Specification: B107.1-2002
• Dim. B : Wrench End: 1.25 in
• Dim. A : Drive End: 1.25 in
• Dim. E : Wrench Depth: 1.4 in
• Dim. D : Bolt Clearance: 1.338 in
• Product Type: Socket
• Product Type Compatibility: Socket wrench
• Deep Well: Yes
• Socket Type(s): Deep
• Approvals: ASME
• Torx: No
• Quantity: 1
• Item length: 3.27 Inches
• Finish type: Polished
• Drive system: Square
• Drive Bit Shank Style: Square
• Manufacturer: Crescent
• Drive End Shape: Square
• Drive End Size: 1/2 Inch
• Socket End Size: 15/16 Inch
