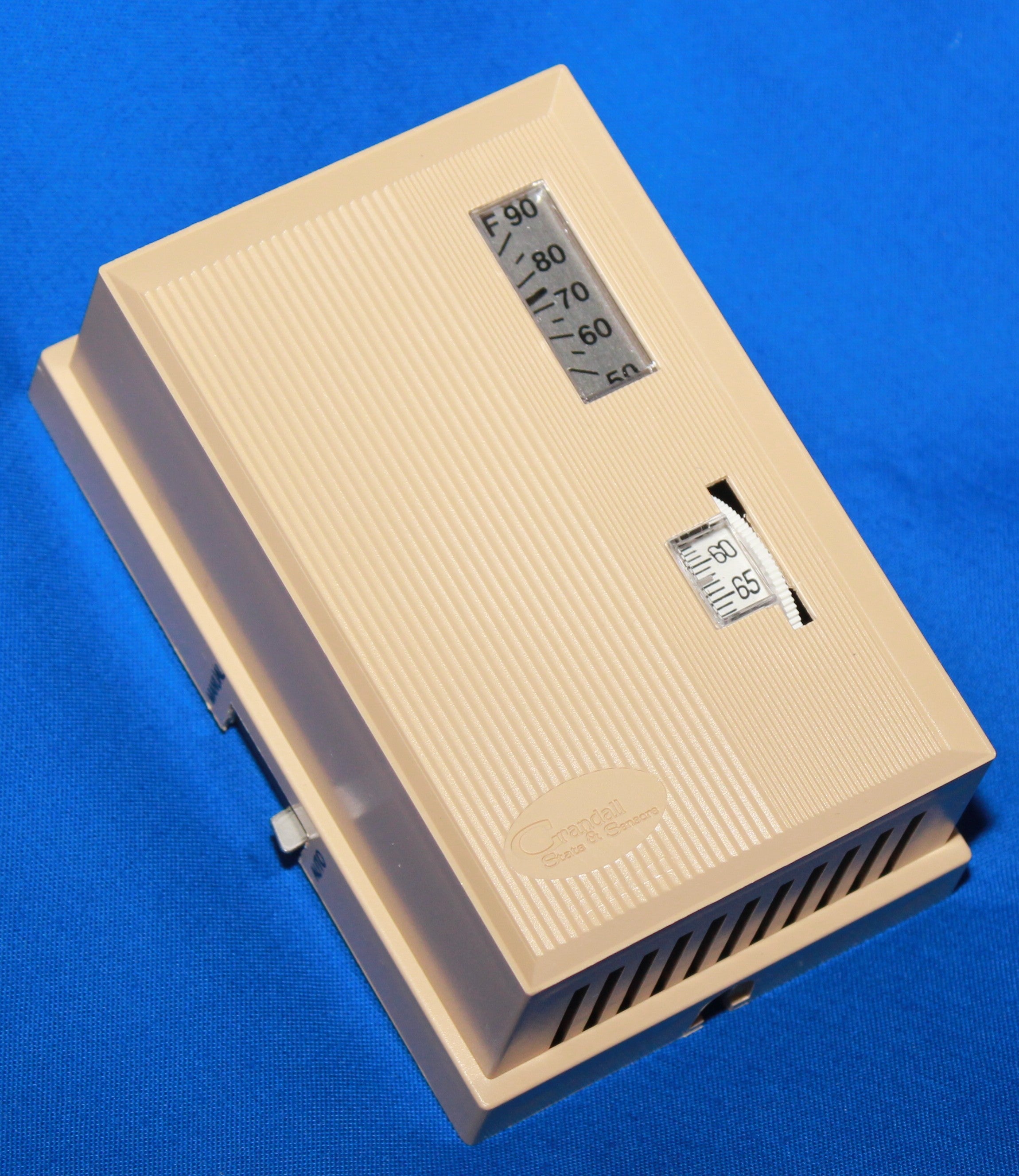

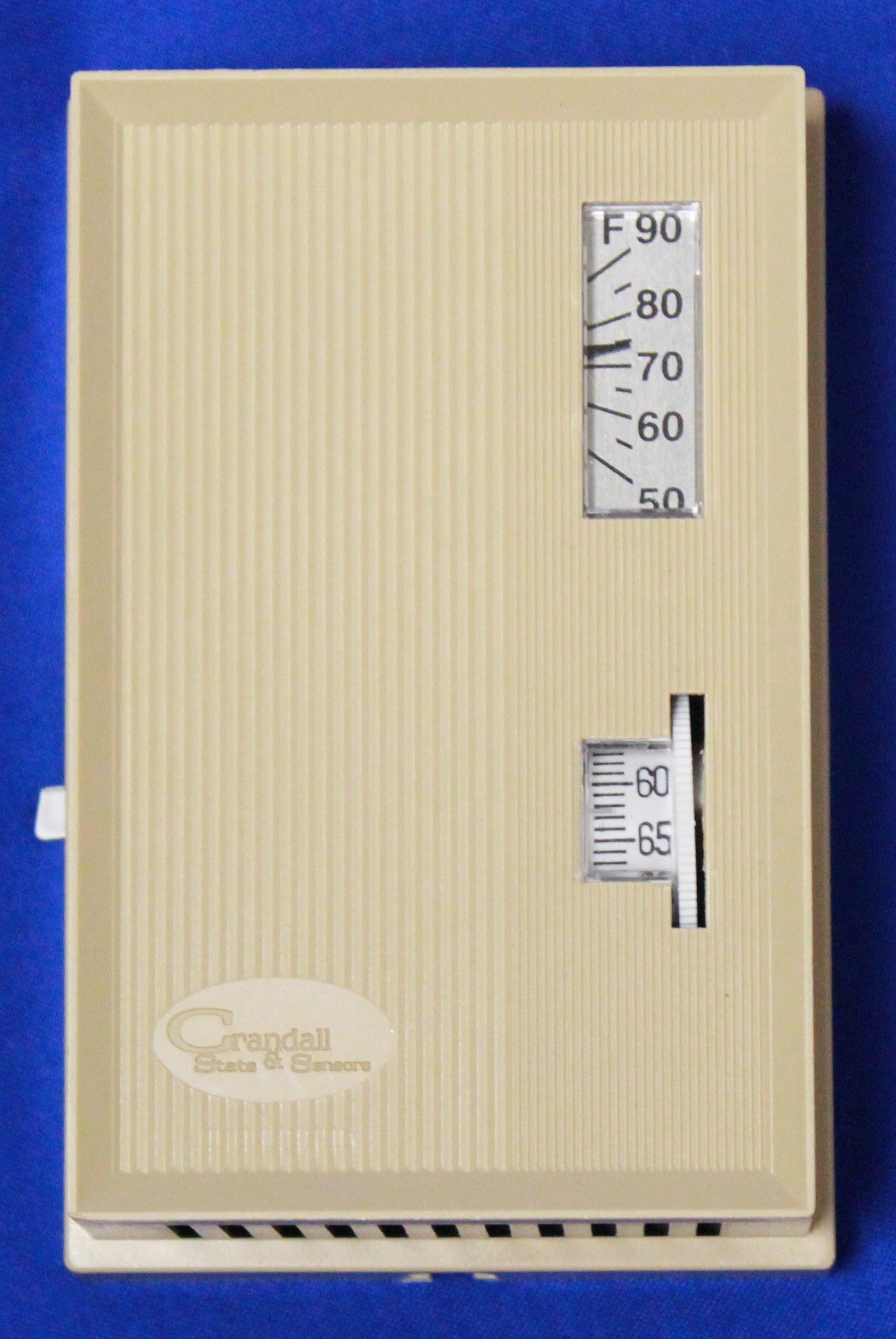

Crandall TK-1381-0-CS&S Single Temp – Reverse Acting

Product Description

The Crandall TK-1381-0-CS&S is a pneumatic thermostat designed for control in heating and cooling systems. It features a single temperature setting and allows for manual override, making it suitable for various applications. This model operates within a range of fifty-five to eighty-five degrees Fahrenheit and supports two or three pipe systems.

• Manual override functionality for operational flexibility
• Temperature range: 55F to 85F
• Compatible with multiple pipe configurations

Product Highlights

This thermostat is ideal for applications where precise temperature control is necessary. It can handle day pressure of fifteen PSIG and night pressure of twenty PSIG, making it versatile for different system requirements.

Product Information

Standard Information

• Brand: Crandall
• Part Number: TK-1381-0-CS&S

Technical Specifications

• Weight: 1 lbs
• Dimensions: 6 x 3 x 6 inches
• Temperature Range: 55F to 85F
• Day Pressure: 15 PSIG
• Night Pressure: 20 PSIG
