Crandall HC-201-CSS Duct Humidistat

Product Description

The Crandall HC-201-CSS is an electric duct humidistat designed for precise humidity control in duct systems. This device operates in a range from fifteen to ninety-five percent relative humidity. It features a single pole-double throw switch rated for three point six FLA and twenty-one point six LRA. The humidistat is suitable for both low and line voltage applications.

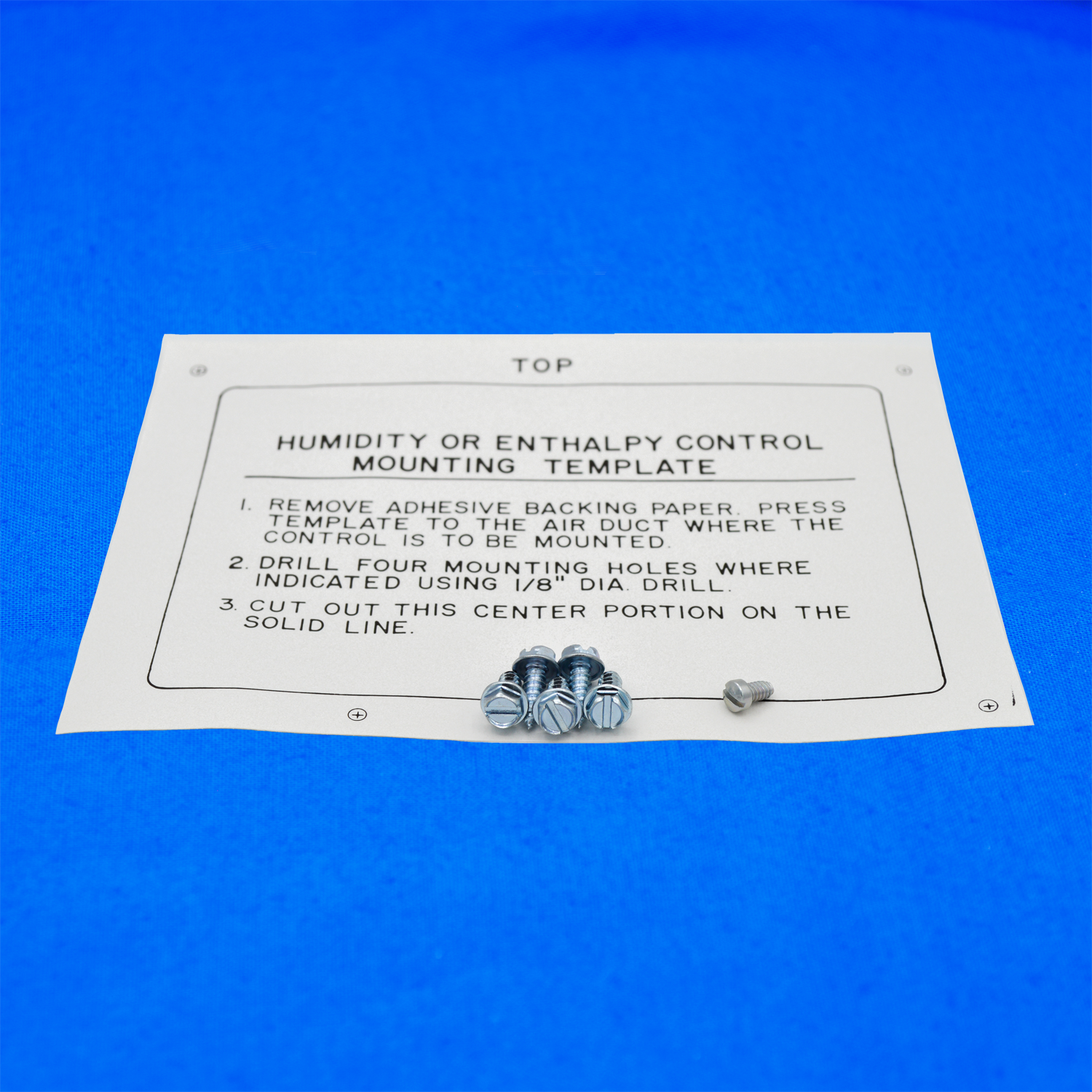

• Mounting requires a duct installation.
• Constructed from durable steel and aluminum.
• Ambient temperature range is forty degrees Fahrenheit to one hundred twenty-five degrees Fahrenheit.

Product Highlights

This humidistat is ideal for maintaining consistent humidity levels, aiding in energy efficiency and comfort in HVAC systems.

Product Information

Standard Information

• Brand: Crandall
• Part Number: HC-201-CS&S

Technical Specifications

• Weight: 2.05 lbs
• Dimensions: 7.000 x 3 x 3.625 inches
• Humidity Range: 15% to 95%
• Switch Rating: 3.6 FLA, 21.6 LRA
• Mounting Type: Duct
• Operating Temperature: 40°F to 125°F

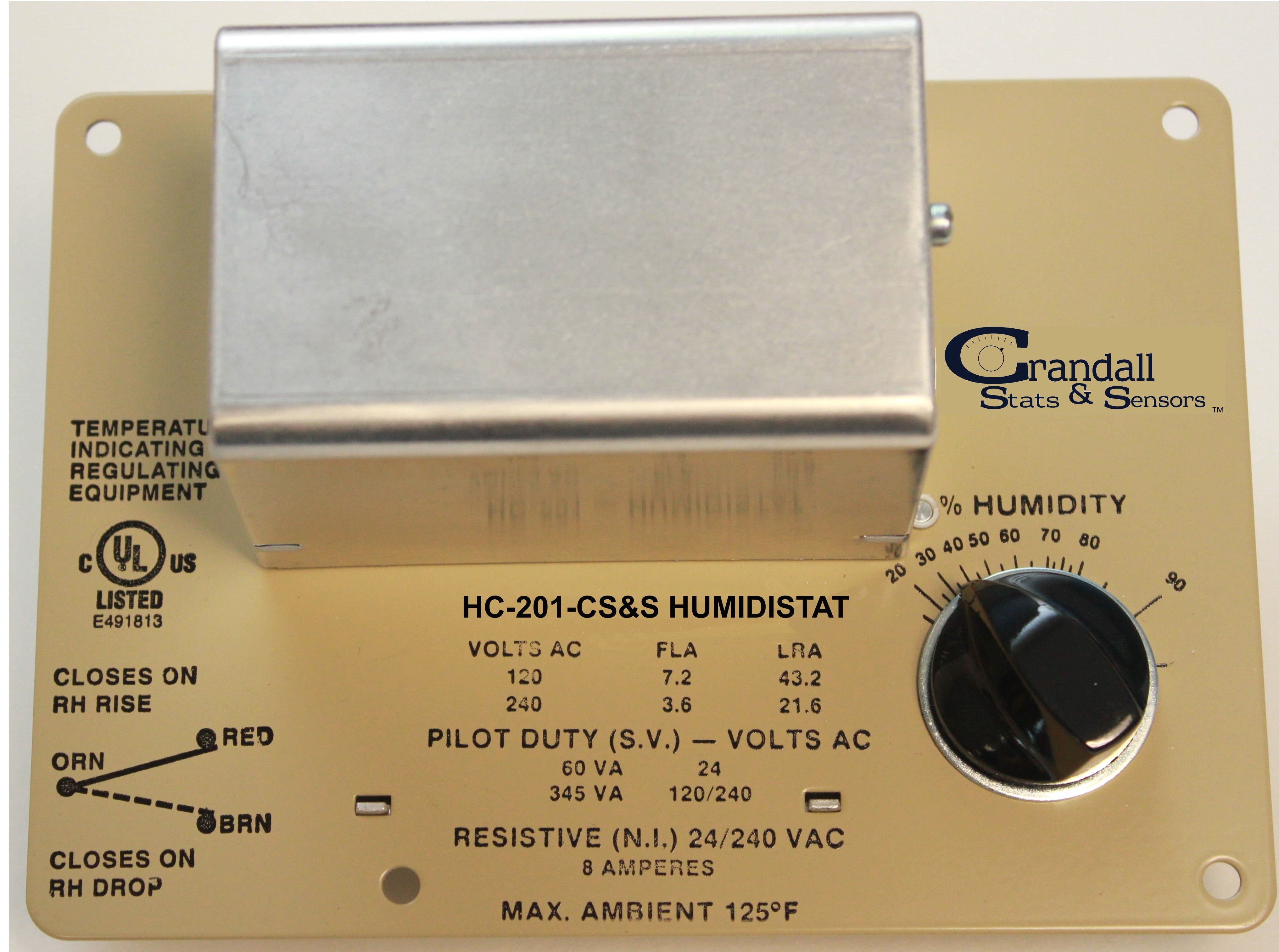

• Contacts: NO marked as Brown, NC marked as Red, Common marked as Orange
• Ground Wire: Green
