Crandall 2218-301-CS&S Summer-Winter – Two-pipe

Product Description

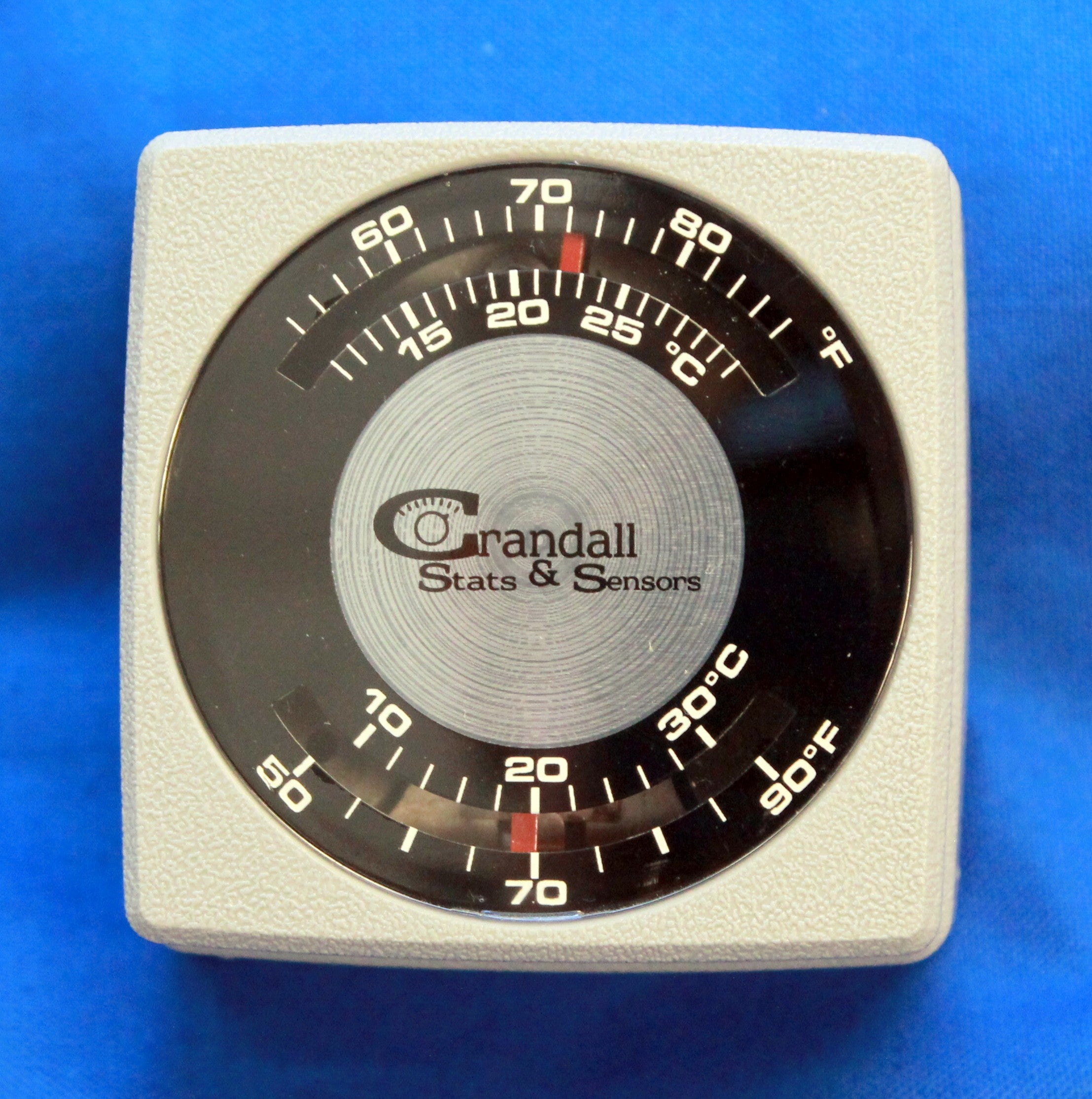

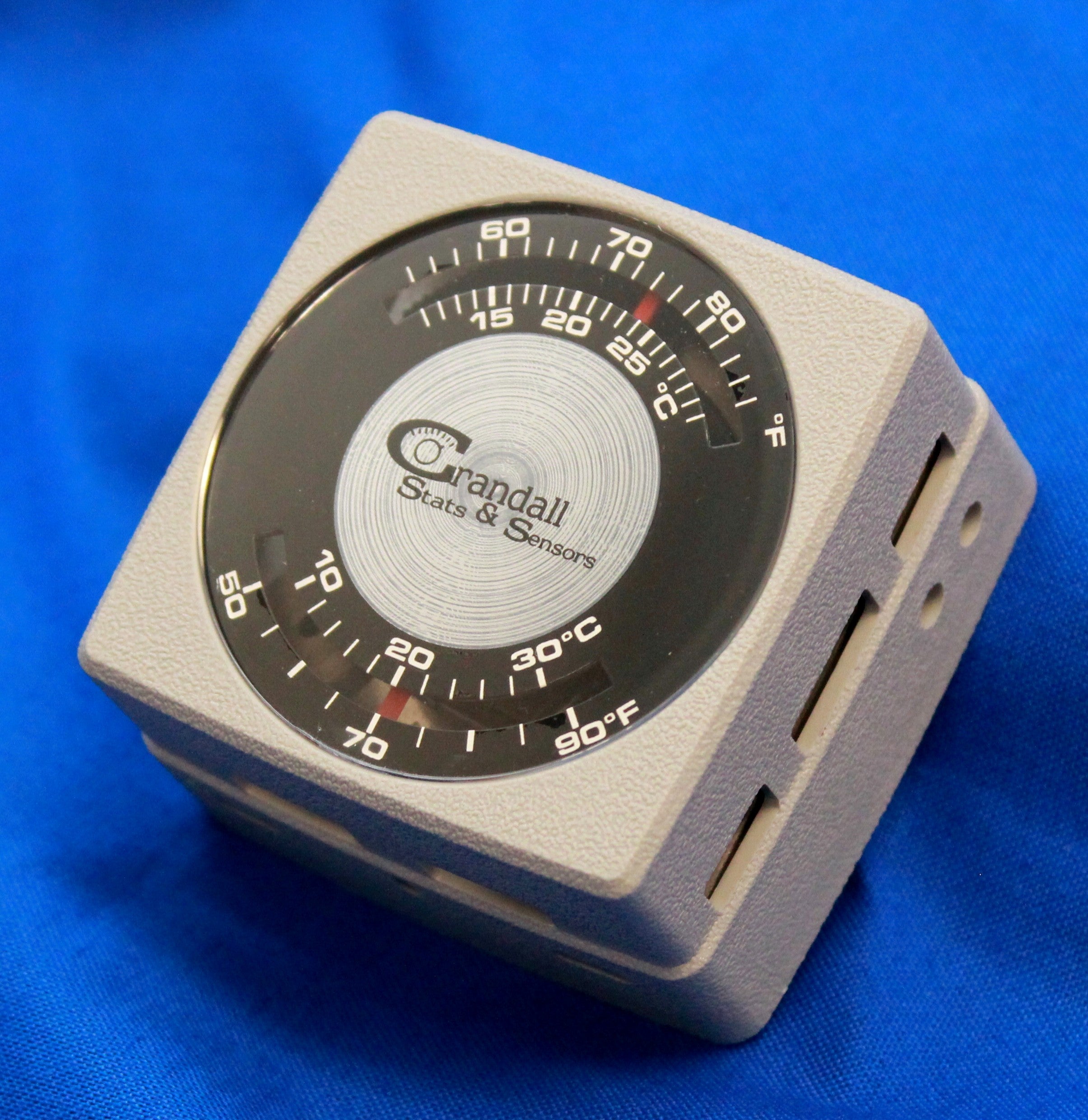

The Crandall 2218-301-CS&S is a summer-winter two-pipe thermostat designed for HVAC applications. It controls temperature by managing hot and cold water flows depending on seasonal needs. The thermostat offers reverse acting at fifteen PSI with a temperature setting range from seventy-six to eighty-five degrees Fahrenheit. It also provides direct acting at twenty PSI and operates between forty-four and seventy-four degrees Fahrenheit.

• Compatible with two-pipe systems.
• Adjustable temperature ranges for different seasons.
• Offers reliable performance under pressure conditions.

Product Highlights

This thermostat is suitable for both heating and cooling applications, providing an efficient way to maintain comfortable indoor temperatures year-round.

Product Information

Standard Information

• Brand: Crandall
• Part Number: 2218-301-CS&S

Technical Specifications

• Weight: 1 lbs
• Dimensions: 6 inches x 3 inches x 6 inches
• Pressure Range: 15 PSI Reverse Acting
• Temperature Range (Heating): 76°F to 85°F
• Temperature Range (Cooling): 44°F to 74°F
