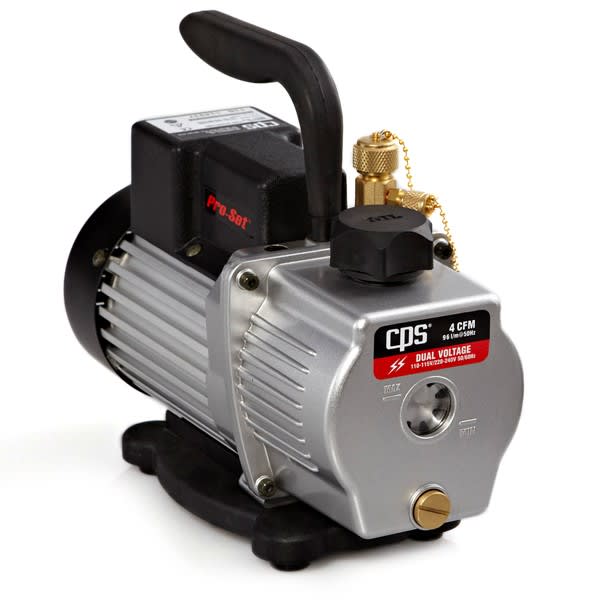

Cps VP4S Pro-Set® 4 CFM Vacuum Pump

Product Description

The CPS VP4S Pro-Set® vacuum pump is a 4 CFM, single-stage unit featuring a dual voltage 1/3HP motor. Engineered with high-quality, high-value features, this Pro-Set® Premium Series vacuum pump delivers performance and reliable service. It is designed for operation in high ambient temperatures and easy maintenance with a large oil sight glass and fill port.

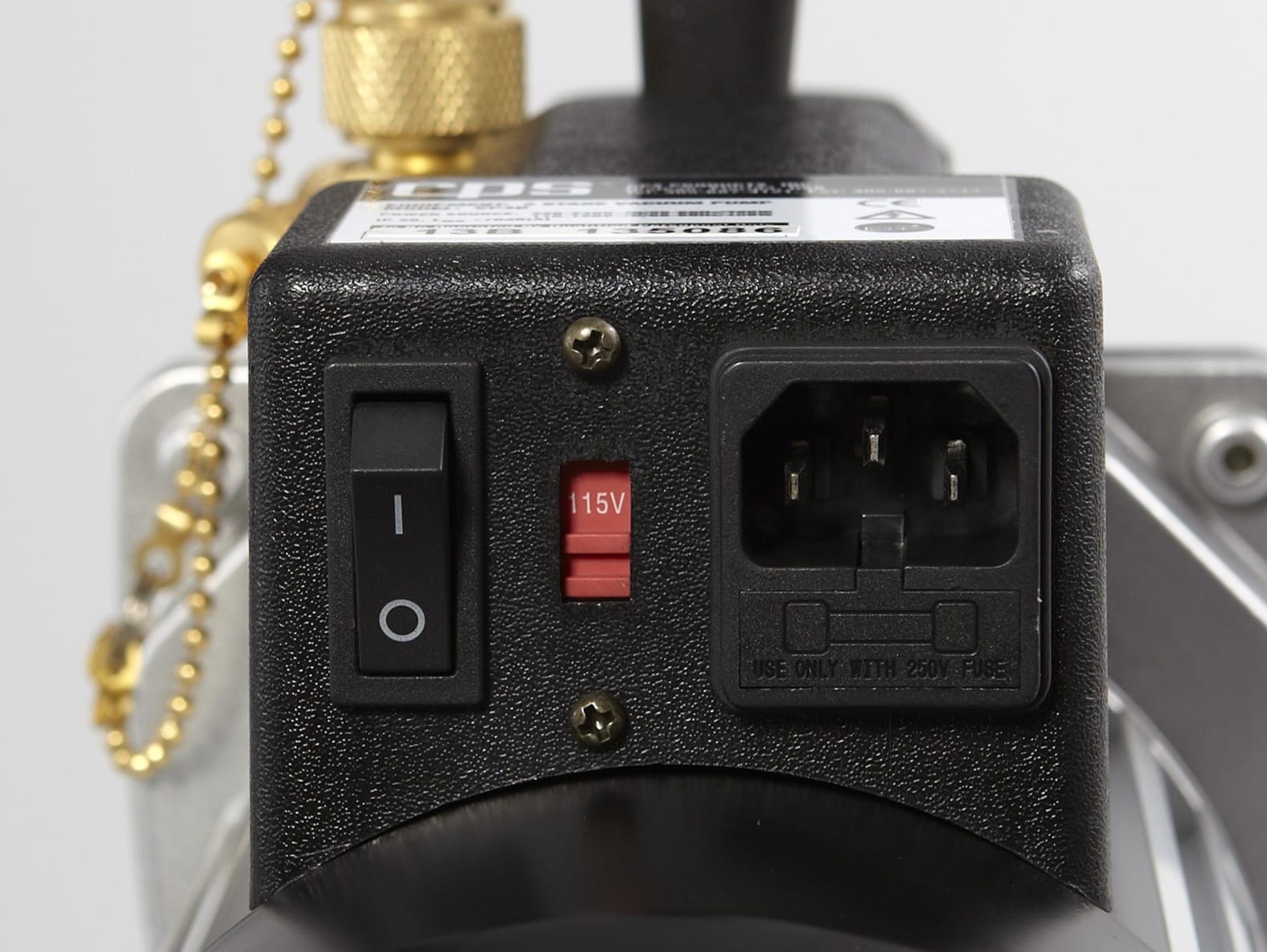

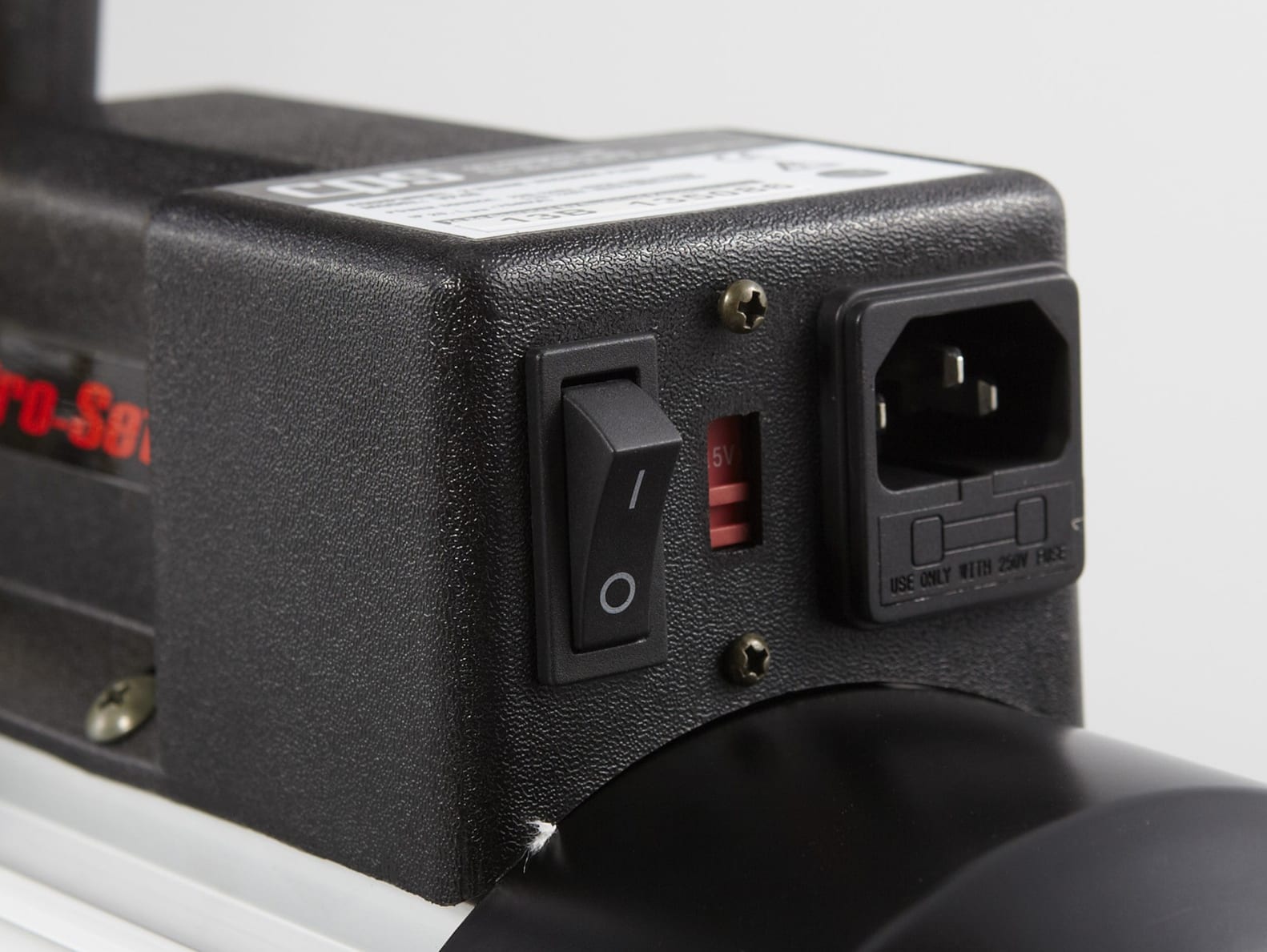

• Dual voltage operation 110-120V / 220V 50/60Hz
• Ultimate vacuum rating as low as 50 microns
• Multiple port connections for ¼”, ⅜” and ½” ACME

Product Highlights

The VP4S vacuum pump features a gas ballast valve, oil mist free exhaust port, and a solid rubber base for shock resistance. It is suitable for HVAC applications.

Product Information

Standard Information

• Brand: CPS
• Manufacturer Part Number: VP4S

Technical Specifications

• Free Air Displacement: 4 CFM @ 60HZ, 96l/m @ 50Hz
• Power Source: 110-120V / 220V 50/60Hz
• Horse Power RPM (50/60Hz): 1/3 (HP) 2880/3440
• Ultimate Vacuum: as low as 50 microns
• Intake Fittings: 1/4” SAE, 3/8” SAE, and 1/2” ACME
• Oil Capacity: 16 oz. / 470 ml
