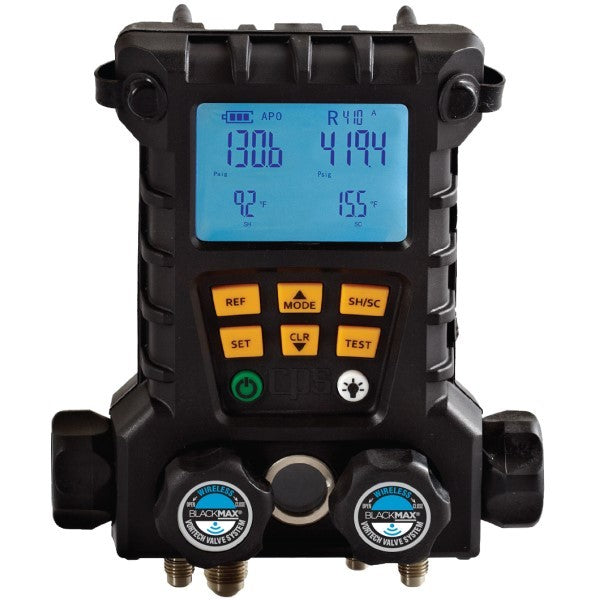

CPS Products MD100W 4-Valve Wireless Digital Manifold

Product Description

The CPS Products MD100W is a four-valve wireless digital manifold. This manifold allows connection to conventional manifolds or wirelessly with iOS or Android devices using the Manifold Link app.

• Real-time system measurement monitoring
• Convenient touch screen control
• Data logging features for performance tracking

Product Highlights

The CPS MD100W is designed for HVAC professionals requiring accurate and efficient system diagnostics.

Product Information

Standard Information

• Brand: CPS Products
• Part Number: T2171
• UPC:

Technical Specifications

• High Side Pressure Range: -14.5 to 800.0 PSIG (-1.0 to 55 bar)
• Low Side Pressure Range: -14.5 to 800.0 PSIG (-1.0 to 55 bar)
• Pressure Reading Accuracy: +/- 1% of reading or +/- 0.5 PSIG (+/- 0.05 bar)
• Temperature Range: -58.0 °F to 302 °F (-50 °C to 150 °C)
• Instrument Working Temperature: -4.0 °F to 122 °F (-20 °C to 50 °C)
• Weight: 3.3 lb. (1.5 kg)
• Communication Range: Up to 300 ft. (max)
• Display Life: 25+ hours with backlight ON using alkaline batteries
