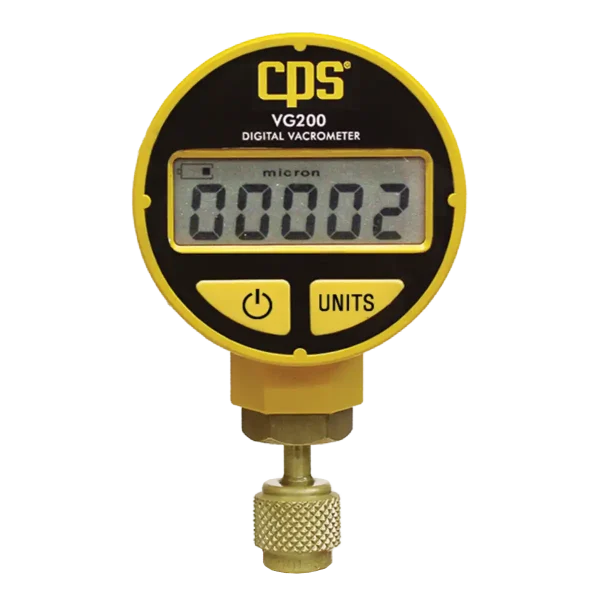

Cps Products CPS-VG200 Digital LCD Vacuum Gauge

Product Description

The CPS PRODUCTS CPS-VG200 Digital LCD Vacuum Gauge is designed for precise monitoring of evacuation procedures. Calibrated to strict NIST standards, it offers superior accuracy and reliability. This gauge features automatic temperature compensation for consistent readings and a cleanable sensor capable of withstanding up to 400 PSIG positive pressure. It allows flexible unit selection between microns, millibars, torr, and inches/hg, making it versatile for various measurement requirements in HVAC and refrigeration systems.

• Superior accuracy: Calibrated to strict NIST standards
• Flexible unit selection: Easily switch between microns, millibars, torr, and inches/hg with just two buttons
• Automatic temperature compensation: No manual adjustments needed, offers consistent readings in any environment

Product Highlights

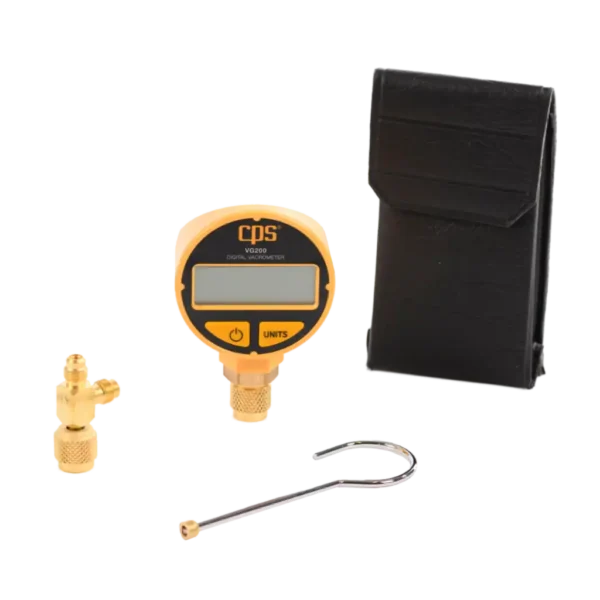

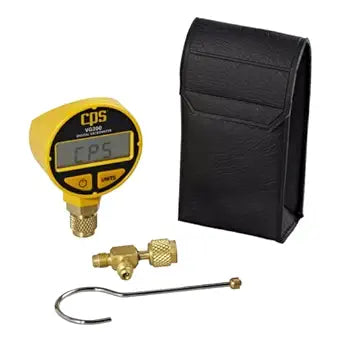

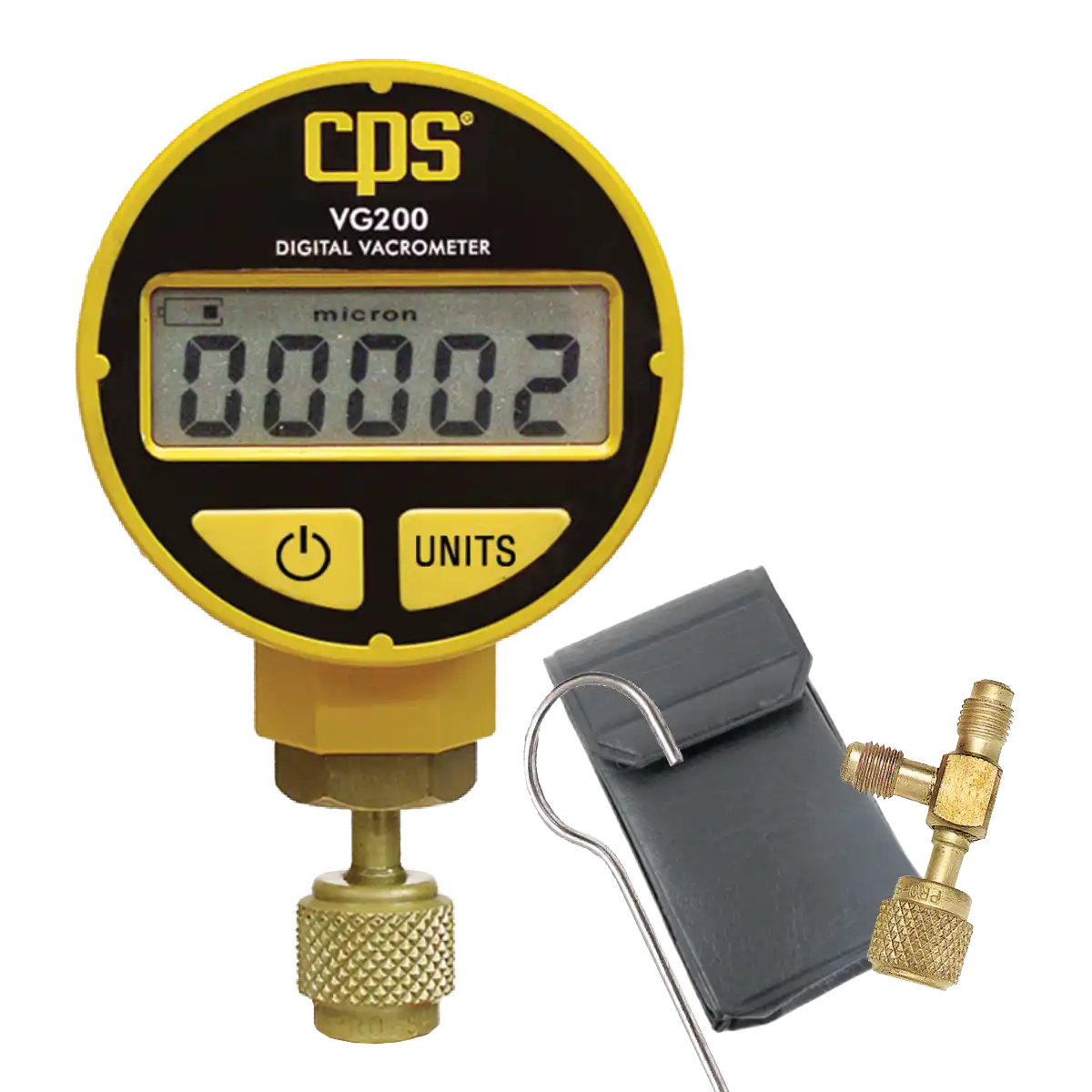

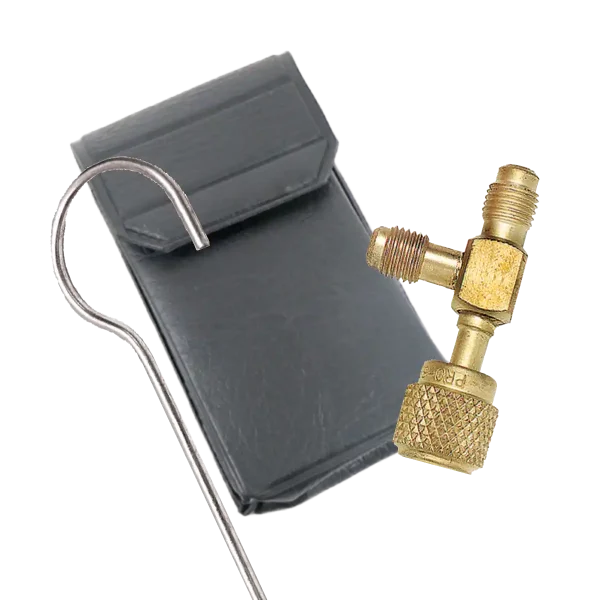

Durable digital vacuum gauge with a large 5-digit LCD display, cleanable sensor, and includes a gauge hook, T-fitting adapter, and padded vinyl case.

Product Information

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: CPS-VG200
• Country of Origin: USA

Technical Specifications

• Brand: CPS
• MPN: VG200
• Manufacturer: CPS
• Model Number: VG200
• Product Type: Digital LCD Vacuum Gauge
• Sensor Type: Self-heating thermistor bridge with integral temperature compensation from 0 to 50°C (32 to 122°F)
• Operating Pressure Range: Atmospheric pressure to 1 micron. Maximum working pressure: 400 PSIG
• Burst Pressure: 3000 PSIG
• Operating Range: Atmospheric to 1 micron
• Accuracy: +/- 10% of reading
• Operating Temperature Range: Compensated: 32.0°F to 122.0°F (0°C to 50°C)
• Operating and Storage Humidity: 0-95%, non-condensing
• Storage Temperature: -40 to 185°F / -40 to 85°C
• Power Source: One 9-volt alkaline battery (included)
• Battery Life: 25 hours continuous use. Automatic shut-off after 10 minutes
• Mechanical Connection: Standard 1/4" SAE female refrigerant hose type with core depressor
• Battery Indicator: Battery symbol with 3-segment power level bar graph
