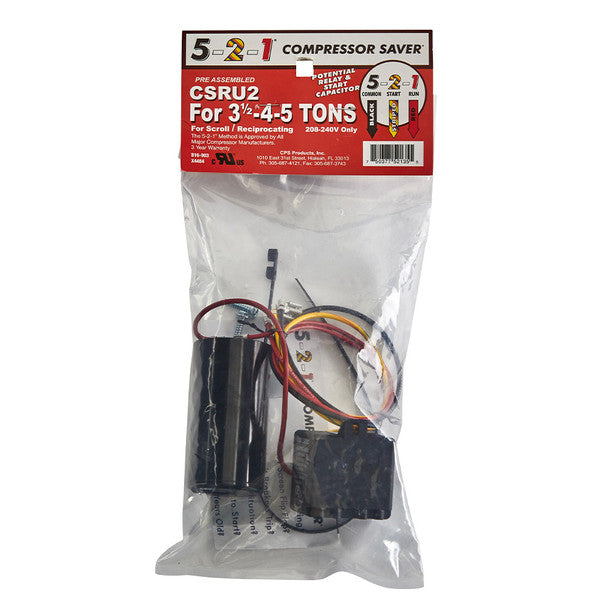

CPS PRODUCTS CPS-CSRU2 5-2-1 Compressor Saver

Product Description

The CPS PRODUCTS CPS-CSRU2 5-2-1 Compressor Saver is an essential component for 3.5 to 5 ton scroll or reciprocating AC units operating at 208-240V. This device reduces the start-up time of compressors and diminishes high amp in-rush current, which can draw unnecessary energy from your system.

• Reduces compressor start-up time and in-rush current by up to 50%
• Improves overall reliability and extends the lifespan of the compressor

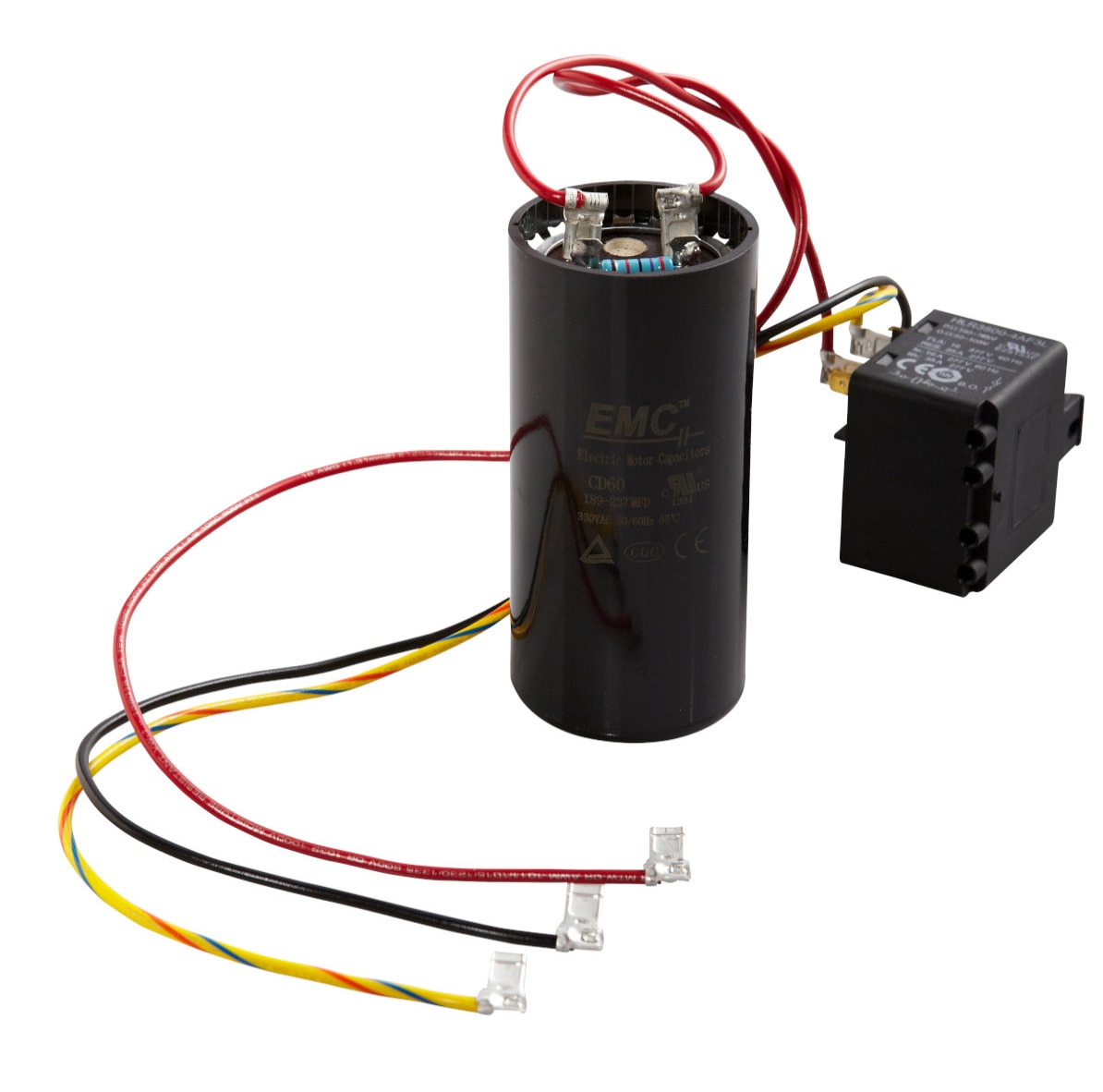

• Includes multi-layer starting capacitor and smart switch for effective operation

Product Highlights

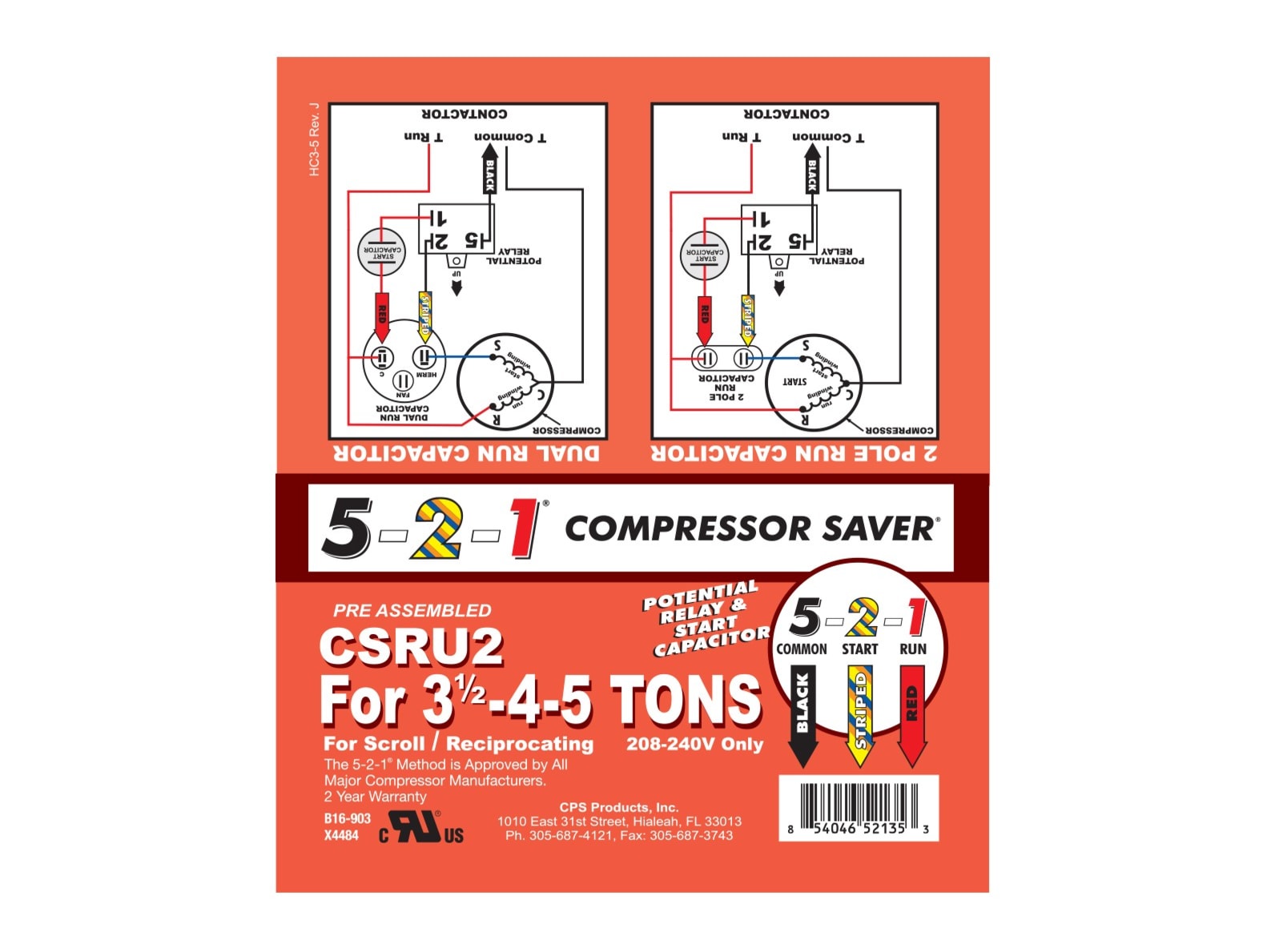

This product is pre-wired with color-coded wires for easy installation. Designed to protect the compressor's internal components, it operates efficiently at 60 Hz and accommodates capacitor sizes from 189 to 227 Mfd. The starting kit is specifically tailored for 3.5 to 5 ton compressors, enhancing overall efficiency.

Product Information

Standard Information

• Brand: CPS PRODUCTS
• MPN: CPS-CSRU2

Technical Specifications

• Catalog Number: X4484
• Base Unit of Measure: Unit
• EAN / UPC: 66255140723
• Product Height: 6 inches
• Product Width: 2 inches
• Gross Weight: 0.9 pounds
• Hertz: 60 Hz
• Product Length: 6 inches
• Wires: 3
• Max Torque: 3.5 to 5 tons
• Accessory Type: Start Kit
• Capacitor MFD: 189 - 227 Mfd
• Type: Hard Start Compressor Saver
• Series: 5-2-1
• Application: For 3.5 to 5 Ton AC Units
