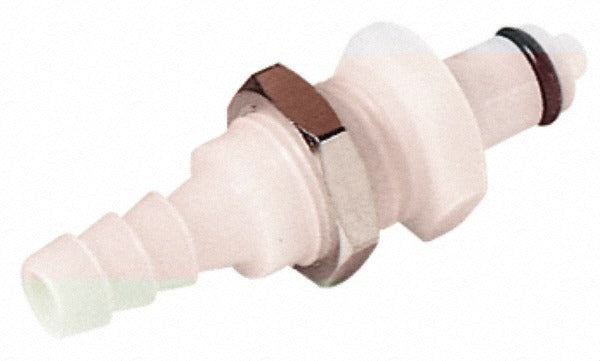

Cpc Colder Products PMCD4201NA Push-to-connect Connector

Product Description

The CPC COLDER PRODUCTS PMCD4201NA is a push-to-connect tube fitting connector designed for small-bore fluid and pneumatic line connections. Manufactured from polyoxymethylene (POM), this connector offers solid chemical resistance and dimensional stability under pressure. It accepts tubing with a 1/16 inch inside diameter and is rated to 120 psi, making it suitable for low-flow instrumentation lines, medical equipment, laboratory systems, and light-duty pneumatic circuits. The white POM construction keeps the fitting lightweight at 0.15 pounds. Plumbers, instrumentation technicians, and fluid system assemblers install this type of fitting where a tool-free, repeatable tube connection is required.

This connector fits applications where compact, reliable tube-to-tube or tube-to-component joins are needed in tight spaces. Typical use cases include laboratory fluid routing, diagnostic equipment fluid lines, and small-bore pneumatic control circuits. The push-to-connect design allows fast field assembly without solvents, clamps, or threaded fittings, reducing assembly time in production or service environments where 1/16 inch ID tubing is standard.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure retention
• Rated to 120 psi for use in low-to-medium pressure fluid and pneumatic systems
• Polyoxymethylene (POM) body provides chemical resistance and dimensional stability
• 1/16 inch inside diameter sizing for small-bore tubing applications
• White color for easy visual identification in multi-line installations
• Lightweight at 0.15 pounds, suitable for weight-sensitive assemblies

Compatibility

Designed for use with tubing having a 1/16 inch inside diameter in push-to-connect fluid and pneumatic systems. Consult system specifications and tubing material compatibility charts before installation to confirm suitability for the intended fluid or gas media.

Installation Notes

Depressurize and drain the fluid line completely before installing or removing this fitting. Cut tubing square and deburr the cut end before insertion to ensure a proper seal and full engagement with the internal collet. Verify that tubing outside diameter and material are compatible with the fitting before assembly. Installation should follow applicable system design codes and the fitting manufacturer's guidelines for maximum pressure and temperature ratings.
