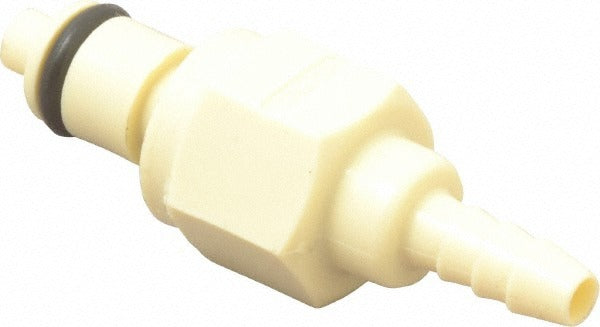

Cpc Colder Products PMCD220212 Inline Hose Barb Male Plug

Product Description

The CPC COLDER PRODUCTS PMCD220212 is a male inline hose barb plug designed for use in fluid handling systems requiring a positive shutoff connection. This fitting accepts a 1/8 inch inside diameter hose barb and provides a nominal flow size of 1/8 inch. The body is constructed from polypropylene with an EPDM o-ring seal, giving it solid chemical and temperature resistance. It is rated for a maximum working pressure of 120 psi and operates across a temperature range of 32 degrees F to 160 degrees F. Plumbers, fluid system technicians, and industrial maintenance professionals install this type of plug to terminate or cap inline quick-disconnect circuits.

This plug fitting is suited for low-pressure liquid transfer lines in residential and light commercial applications, including cooling systems, chemical dosing lines, irrigation sub-circuits, and fluid distribution manifolds. The inline hose barb configuration allows direct connection to standard flexible tubing with a 1/8 inch inside diameter. The male plug half mates with a compatible female coupler body to complete a shutoff-style quick-disconnect fitting pair. It is sold individually and is appropriate for new installations or replacement in existing quick-connect plumbing assemblies.

Key Features

• Shutoff valve type prevents fluid spillage when disconnected
• 1/8 inch nominal flow size with 1/8 inch inside diameter hose barb end
• Polypropylene body provides resistance to a wide range of water-based and mild chemical media
• EPDM o-ring seal handles temperatures from 32 degrees F to 160 degrees F
• Rated to 120 psi maximum working pressure
• Compact male plug design for inline installations

Compatibility

Designed as an OEM-style replacement or new-installation male plug for inline hose barb quick-disconnect coupling systems using 1/8 inch inside diameter flexible tubing.

Installation Notes

Installation is performed by plumbers or fluid system technicians. Depressurize and drain the fluid line completely before removing or installing any quick-disconnect fitting. Inspect the EPDM o-ring for damage before assembly and ensure the mating female coupler body is clean and free of debris. Do not exceed the rated 120 psi working pressure or the 160 degrees F maximum temperature limit for this fitting.
