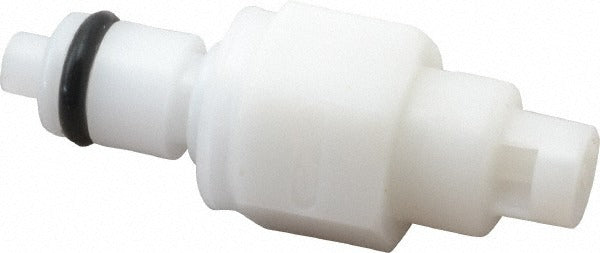

Cpc Colder Products PMCD2201 Inline Hose Barb Male Plug

Product Description

The CPC COLDER PRODUCTS PMCD2201 is an inline hose barb male plug designed for quick-disconnect fluid line applications. It accepts a 1/16-inch inside diameter hose barb connection with a 1/8-inch nominal flow size and incorporates a shutoff valve to stop flow automatically when the coupling is disconnected. The body is machined from acetal (POM) for chemical resistance and dimensional stability, and a Buna-N O-ring provides the sealing interface. Rated to 120 psi maximum working pressure and qualified across a temperature range of -40 to 180 degrees F, this plug suits demanding fluid handling environments where leak-free disconnection is required.

This male plug is used in liquid cooling, medical device, laboratory, and light industrial fluid circuits where a secure inline shutoff is needed at a hose barb termination. It is typically installed by technicians assembling or servicing fluid distribution manifolds, cooling loops, or process equipment that requires repeated make-and-break connections without fluid loss. The compact acetal construction keeps weight minimal at 0.15 pounds, making it well suited for space-constrained panel or tubing assemblies.

Key Features

• Shutoff valve stops flow upon disconnection, minimizing fluid spill
• Acetal (POM) body offers resistance to a broad range of process fluids and cleaning agents
• Buna-N O-ring provides reliable sealing across the rated temperature and pressure range
• 1/16-inch ID hose barb inlet suits small-bore tubing commonly used in cooling and instrument lines
• Rated to 120 psi maximum working pressure for confident use in pressurized fluid circuits
• Wide service temperature range of -40 to 180 degrees F covers most indoor industrial and laboratory conditions

Compatibility

Designed as an OEM-style inline male plug for small-bore hose barb quick-disconnect coupling systems using 1/16-inch ID tubing and a 1/8-inch nominal flow path.

Installation Notes

Installation is typically performed by fluid systems technicians or instrumentation mechanics working on low- to medium-pressure liquid circuits. Depressurize and drain the fluid line completely before removing or installing any coupling component. Confirm tubing inside diameter matches the 1/16-inch barb before assembly and seat the barb fully to ensure a leak-free connection. Follow applicable facility or equipment manufacturer guidelines for fluid system assembly and pressure testing after installation.
