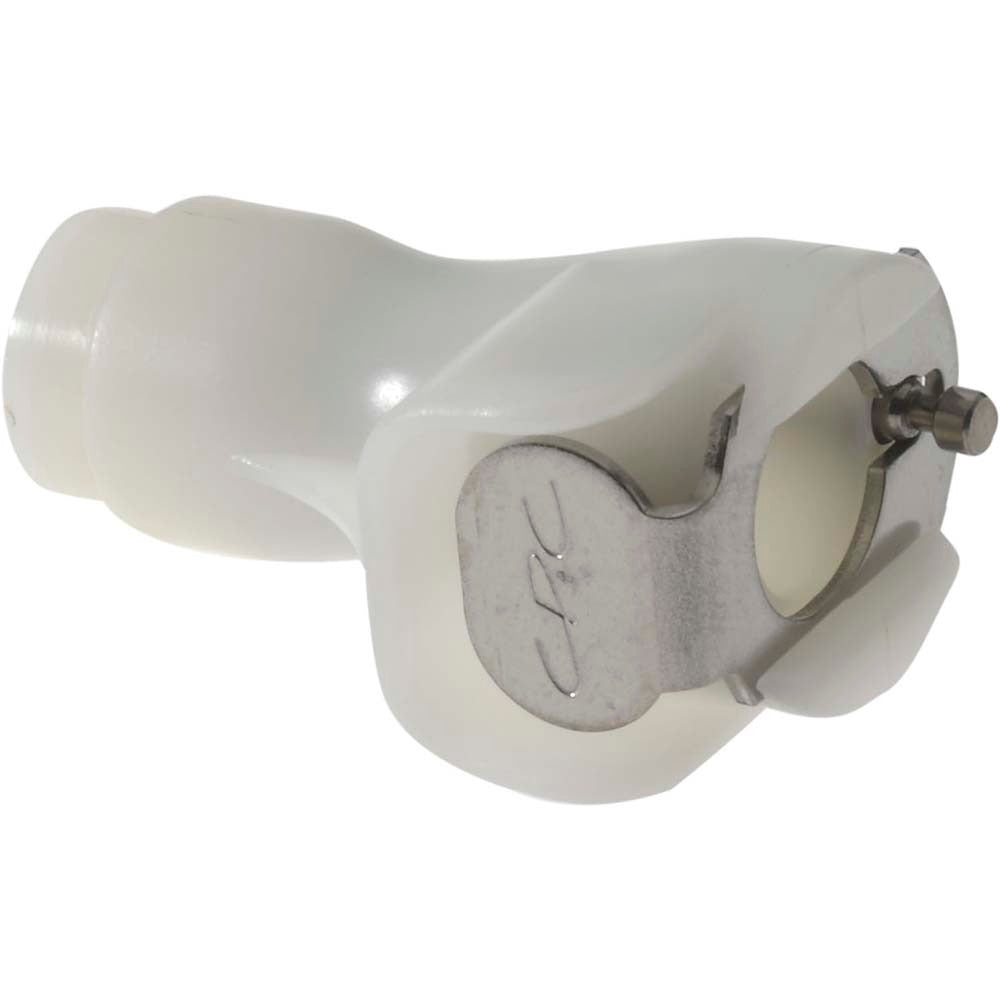

Cpc Colder Products PMCD191032 Inline Female Socket

Product Description

The CPC COLDER PRODUCTS PMCD191032 is an inline threaded female socket designed for fluid coupling applications where a reliable, leak-free shutoff connection is required. Built from acetal with a Buna-N O-ring seal, this fitting accepts a 10-32 female thread and provides a 1/8 inch nominal flow path. The integrated shutoff valve closes automatically when disconnected, preventing fluid loss during line breaks. Rated to 120 psi maximum working pressure and operable across a wide temperature range of -40 to 180 degrees F, it suits demanding industrial and OEM fluid handling environments. Plumbers, fluid system technicians, and equipment assemblers will find this fitting suited for precision plumbing in tight spaces.

This socket is well suited for inline fluid line assemblies in medical equipment, laboratory instrumentation, industrial machinery, and OEM fluid distribution systems. The 10-32 threaded female connection makes it compatible with standard small-bore tubing assemblies and manifold configurations where space and weight are at a premium. It ships individually and is available in single-unit quantities, making it practical for both service replacement and new builds.

Key Features

• Inline threaded female socket configuration for direct in-line installation
• Acetal body construction for chemical resistance and lightweight durability
• Buna-N O-ring seal provides reliable fluid containment
• Automatic shutoff valve closes upon disconnection to prevent fluid spillage
• 1/8 inch nominal flow size with 10-32 female thread for small-bore applications
• Wide operating range: -40 to 180 degrees F at up to 120 psi

Compatibility

Designed as an OEM-style inline threaded female socket for small-bore fluid line assemblies using 10-32 threaded connections. Consult the CPC COLDER PRODUCTS coupling series documentation to confirm mating plug compatibility before installation.

Installation Notes

Installation should be performed by a qualified fluid systems technician or plumber familiar with small-bore threaded fittings. Always depressurize and drain the fluid line completely before disconnecting or installing any coupling. Use appropriate thread sealant or tape only if specified by the system design, as some acetal fittings are sensitive to certain sealant chemistries. Verify the system operating pressure and temperature do not exceed the rated limits of 120 psi and 180 degrees F.
