Cpc Colder Products PMCD170212 Inline Hose Barb Coupling

Product Description

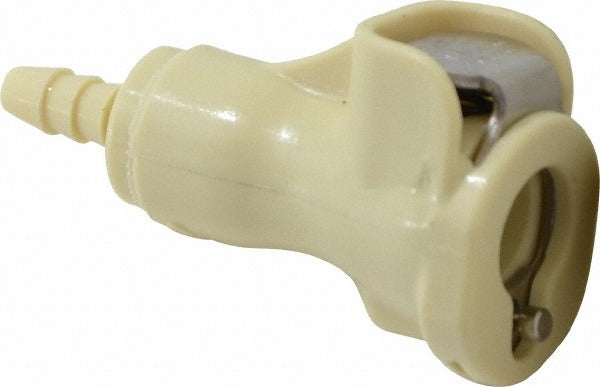

The CPC COLDER PRODUCTS PMCD170212 is a polypropylene inline hose barb to female socket coupling designed for fluid transfer applications in plumbing, industrial, and fluid handling systems. This shutoff-style coupling features a 1/8 inch nominal flow size and a 1/8 inch tube inside diameter. It handles pressures up to 120 psi and operates across a temperature range of 32 to 160 degrees F. The EPDM o-ring provides a reliable seal across this range. Plumbers, fluid system technicians, and equipment service professionals install this fitting where a compact, secure inline connection is required.

The PMCD170212 is suited for low-flow fluid lines in residential and light commercial equipment. Typical applications include inline connections on tubing runs where a hose barb on one end mates to a female socket on the other. The shutoff valve type allows the line to be closed during service without draining the full system. This coupling is appropriate for water, coolant, and other fluids compatible with polypropylene and EPDM materials within the listed pressure and temperature limits.

Key Features

• Shutoff valve type allows line isolation during maintenance
• 1/8 inch nominal flow size and 1/8 inch tube inside diameter for compact fluid lines
• 120 psi maximum working pressure for pressurized system use
• Operating temperature range of 32 to 160 degrees F
• Polypropylene body resists corrosion and common process fluids
• EPDM o-ring provides durable sealing across the rated temperature range

Compatibility

Designed as an OEM-style inline coupling for fluid transfer lines requiring a 1/8 inch hose barb to female socket connection in systems compatible with polypropylene construction and EPDM sealing.

Installation Notes

Installation should be performed by a qualified plumbing or fluid systems technician. Shut off and depressurize the fluid line completely before disconnecting or installing any coupling. Verify that system fluid, pressure, and temperature do not exceed the rated limits of this fitting before placing it in service. Follow applicable plumbing codes, including IPC guidelines, for fluid system connections.
