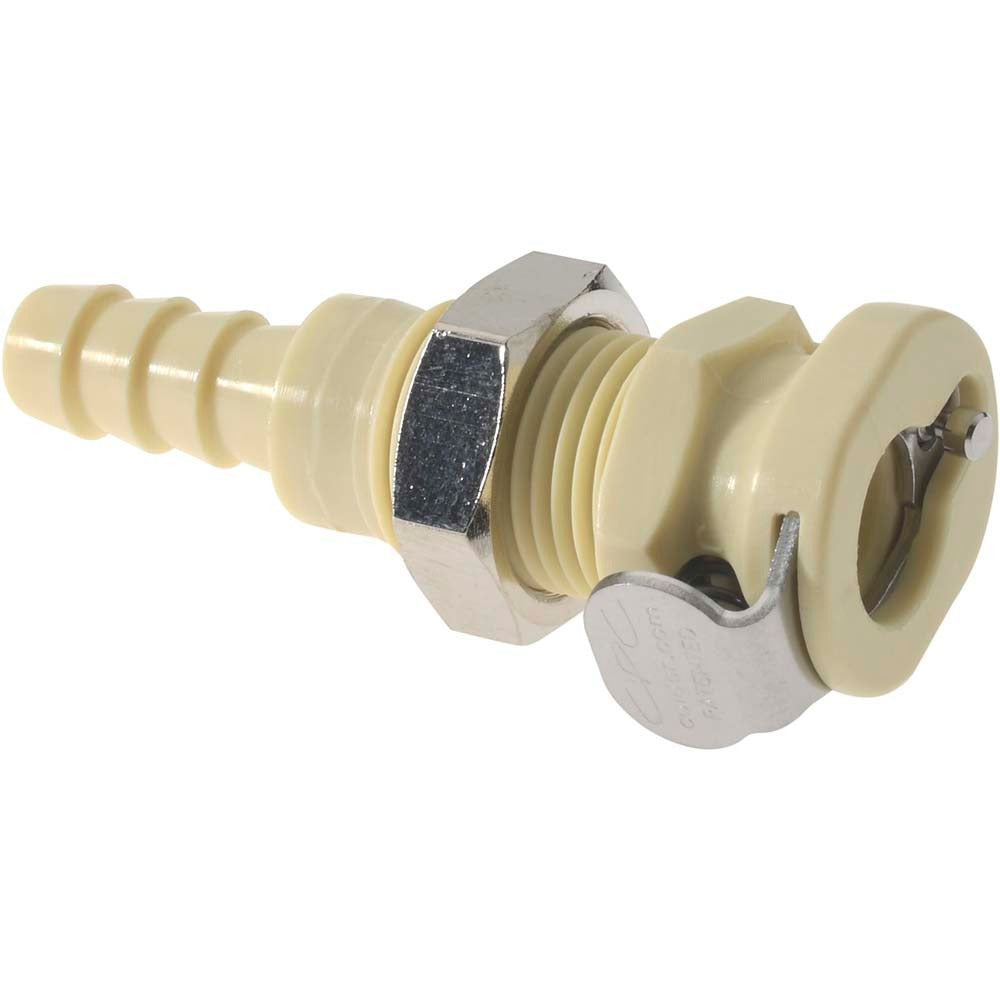

Cpc Colder Products PMCD160412NA Panel Mount Coupling

Product Description

The CPC COLDER PRODUCTS PMCD160412NA is a panel mount hose barb female socket coupling designed for quick-connect fluid line installations. It features a 1/8 inch nominal flow size and accepts tubing with a 1/4 inch inside diameter. The body is molded from polypropylene for chemical resistance in fluid handling systems, and an EPDM o-ring provides the sealing interface. Rated to 120 psi maximum working pressure and suitable for temperatures from 32 degrees F to 160 degrees F, this coupling fits into panel or bulkhead-mounted plumbing configurations where a secure, leak-resistant female socket connection is required. A built-in shutoff valve closes flow automatically when the coupling is disconnected.

This fitting is used in fluid distribution systems where tubing must pass through a panel or enclosure wall. Typical applications include industrial cooling circuits, laboratory fluid lines, medical equipment plumbing, and equipment wash-down stations. The hose barb end accepts flexible tubing directly, eliminating the need for additional fittings on the tube side. The panel mount design allows the socket to be installed flush with an enclosure surface, keeping the connection point accessible and secure. Installation is common in light industrial, process equipment, and specialty HVAC fluid-circuit work.

Key Features

• Panel mount design for bulkhead or enclosure wall installation
• Female socket with integrated shutoff valve - flow stops automatically on disconnect
• Polypropylene body offers broad chemical compatibility for fluid handling
• EPDM o-ring sealing suitable for water and many aqueous solutions
• 120 psi maximum working pressure
• Operating temperature range: 32 degrees F to 160 degrees F

Compatibility

Designed as an OEM-style panel mount female socket coupling for flexible tubing with a 1/4 inch inside diameter in quick-connect fluid circuit applications.

Installation Notes

Installation is typically performed by a plumber or fluid systems technician. Depressurize and drain the fluid circuit completely before installing or replacing any coupling. Ensure the panel cutout dimensions match the fitting body before securing the mount hardware. Verify tubing inside diameter and material compatibility with the system fluid before final assembly.
