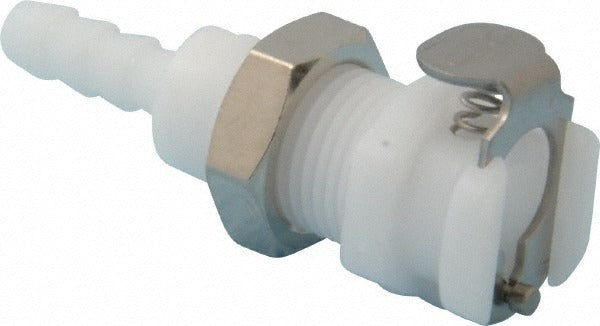

Cpc Colder Products PMCD1603NA Panel Mount Hose Barb Coupling

Product Description

The CPC COLDER PRODUCTS PMCD1603NA is a panel mount hose barb female socket coupling designed for fluid handling applications requiring a secure, leak-resistant connection at a panel or bulkhead interface. Built from acetal (POM) with a Buna-N O-ring, it handles working pressures up to 120 psi and operates across a temperature range of -40 to 180 degrees F. The coupling features a shutoff valve type, which stops flow automatically when disconnected. At 1/8 inch nominal flow size and 3/16 inch tube inside diameter, it suits low-to-medium flow liquid or gas lines. Installation is straightforward and requires no special tooling beyond standard panel-mount hardware.

This coupling is suited for industrial, OEM fluid system, and laboratory applications where a hose barb connection must be mounted through a panel or enclosure wall. It accepts 3/16 inch ID tubing on the barb end and mates with the corresponding CPC plug body. The shutoff feature makes it well suited for service lines where frequent connection and disconnection occur without line drainage. Trade professionals installing coolant circuits, pneumatic test equipment, or process fluid systems will find this fitting appropriate for low-flow panel routing tasks.

Key Features

• Panel mount design for bulkhead or enclosure wall installation
• 1/8 inch nominal flow size with 3/16 inch tube inside diameter barb end
• Acetal (POM) body construction for chemical resistance and durability
• Buna-N O-ring for reliable sealing across the rated pressure and temperature range
• Shutoff valve type stops flow automatically upon disconnection
• Rated to 120 psi maximum working pressure
• Operating range of -40 to 180 degrees F suits both cold and warm fluid service

Compatibility

Designed as an OEM-style panel mount female socket fitting for use in fluid handling systems requiring a 1/8 inch nominal flow hose barb connection at a fixed panel or bulkhead surface.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid system fittings and panel fabrication. Depressurize and drain the fluid line completely before removing any existing fitting or installing this coupling. Ensure the panel cutout diameter matches the fitting body specification and that all sealing surfaces are clean and free of debris before assembly. Follow applicable fluid system codes and the system manufacturer guidelines for torque and sealing requirements at the panel interface.
