Cpc Colder Products PMCD100212 Inline Female Socket 1/8 Npt

Product Description

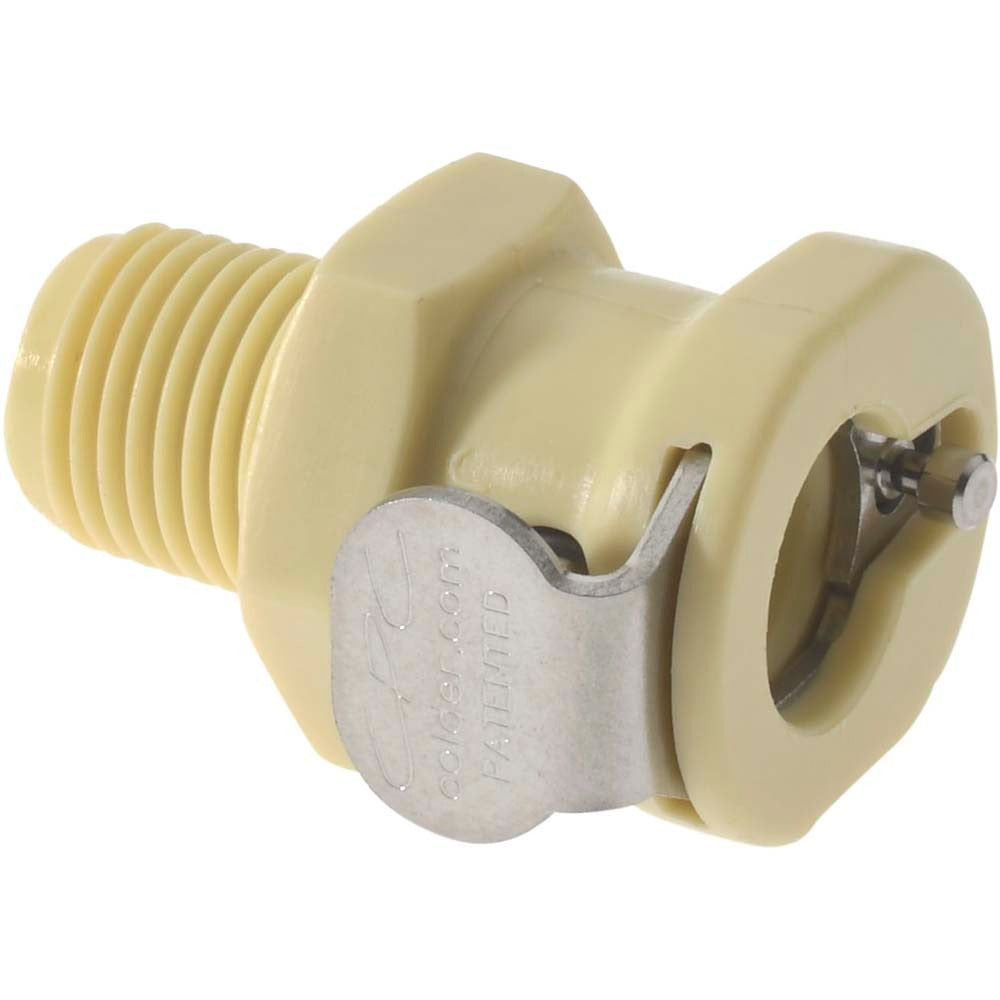

The CPC COLDER PRODUCTS PMCD100212 is a polypropylene inline threaded-female socket coupling designed for fluid handling systems requiring a reliable, shutoff-style quick-disconnect connection. Rated to 120 psi maximum working pressure and suitable for temperatures from 32 degrees F to 160 degrees F, this fitting handles a nominal flow size of 1/8 inch through a 1/8 NPT female thread interface. The EPDM o-ring provides a durable, chemical-resistant seal. This coupling is installed by plumbing, HVAC, and industrial service technicians working on low-pressure fluid or coolant circuits where a compact inline connection point is required.

This socket is suited for residential and light commercial applications involving water, coolant, or compatible fluid lines. Its inline orientation makes it appropriate for installation directly in a fluid line run without the need for additional fittings or adapters. The shutoff valve type means flow is stopped automatically when the coupling is disconnected, reducing fluid spillage during servicing. Technicians working on cooling loops, water treatment equipment, laboratory fluid circuits, or similar low-pressure systems will find this a practical service fitting.

Key Features

• Shutoff valve design stops flow automatically upon disconnection
• 120 psi maximum working pressure for low-pressure fluid circuits
• Operating temperature range of 32 degrees F to 160 degrees F
• Polypropylene body offers chemical resistance and lightweight construction
• EPDM o-ring provides reliable sealing against water and many common fluids
• 1/8 NPT female thread for straightforward inline installation

Compatibility

Designed as an OEM-style inline threaded female socket coupling for low-pressure fluid handling systems using 1/8 NPT threaded connections.

Installation Notes

Installation is performed by a qualified plumbing or fluid systems technician. Shut off and depressurize the fluid circuit completely before removing or installing any coupling. Apply thread sealant appropriate for the fluid type and verify the NPT connection is hand-tight before final torque to avoid cross-threading the polypropylene body. Confirm all connections are leak-free under pressure before returning the system to service.
