Cpc Colder Products PMCD1002 Inline Female Socket 1/8 Npt

Product Description

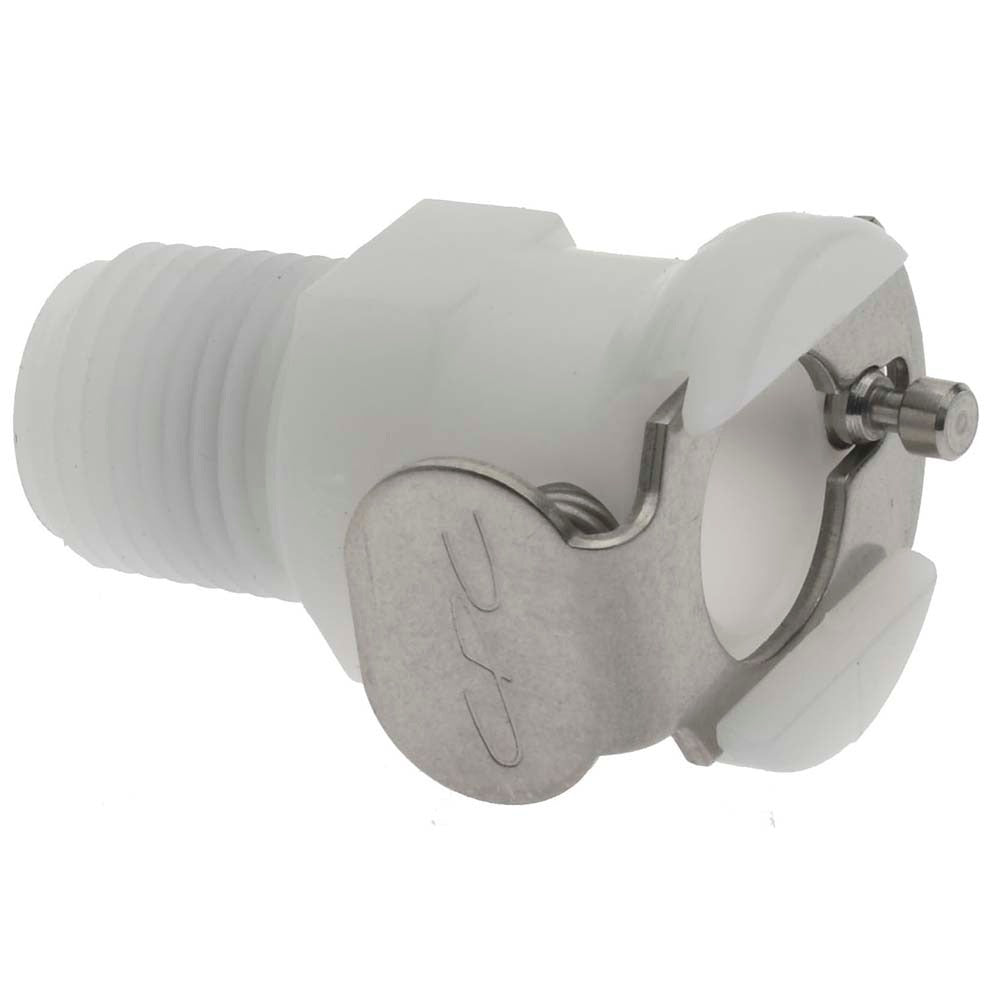

The CPC COLDER PRODUCTS PMCD1002 is an inline threaded female socket designed for fluid handling systems where a reliable, leak-resistant quick-disconnect connection is required. This shutoff-style coupling features a 1/8 NPT female thread, an acetal (POM) body, and a Buna-N O-ring seal. It handles pressures up to 120 psi and operates across a temperature range of -40 degrees F to 180 degrees F, making it suitable for demanding process and industrial plumbing applications. Licensed plumbers, industrial technicians, and fluid system specialists install this type of fitting in liquid cooling, chemical transfer, and general fluid distribution lines.

The PMCD1002 is suited for residential and light commercial fluid systems, laboratory equipment, process cooling lines, and medical device plumbing where a compact 1/8 nominal flow inline socket is required. Its shutoff valve design stops flow automatically when the coupling is disconnected, minimizing spillage during service. Applications include HVAC hydronic accessories, small-bore process tubing, and equipment requiring periodic fluid line disconnection without system drain-down.

Key Features

• Shutoff valve closes automatically on disconnect to prevent fluid loss
• Acetal (POM) body construction for chemical resistance and durability
• Buna-N O-ring provides a reliable, leak-resistant seal
• Rated to 120 psi maximum working pressure
• Wide operating temperature range: -40 degrees F to 180 degrees F
• 1/8 NPT female thread for standard pipe connection

Compatibility

Designed as an OEM-style inline threaded female socket for fluid system applications using 1/8 NPT threaded connections and 1/8 nominal flow quick-disconnect couplings.

Installation Notes

Installation should be performed by a qualified plumber or fluid systems technician. Shut off and depressurize the fluid system fully before removing or installing any coupling. Apply thread sealant appropriate for the fluid media to the NPT threads and tighten to fitting manufacturer standards without over-torquing the acetal body. Verify system pressure does not exceed the 120 psi rating before returning to service.
