Cpc Colder Products PMC2404 Inline Threaded Male Plug

Product Description

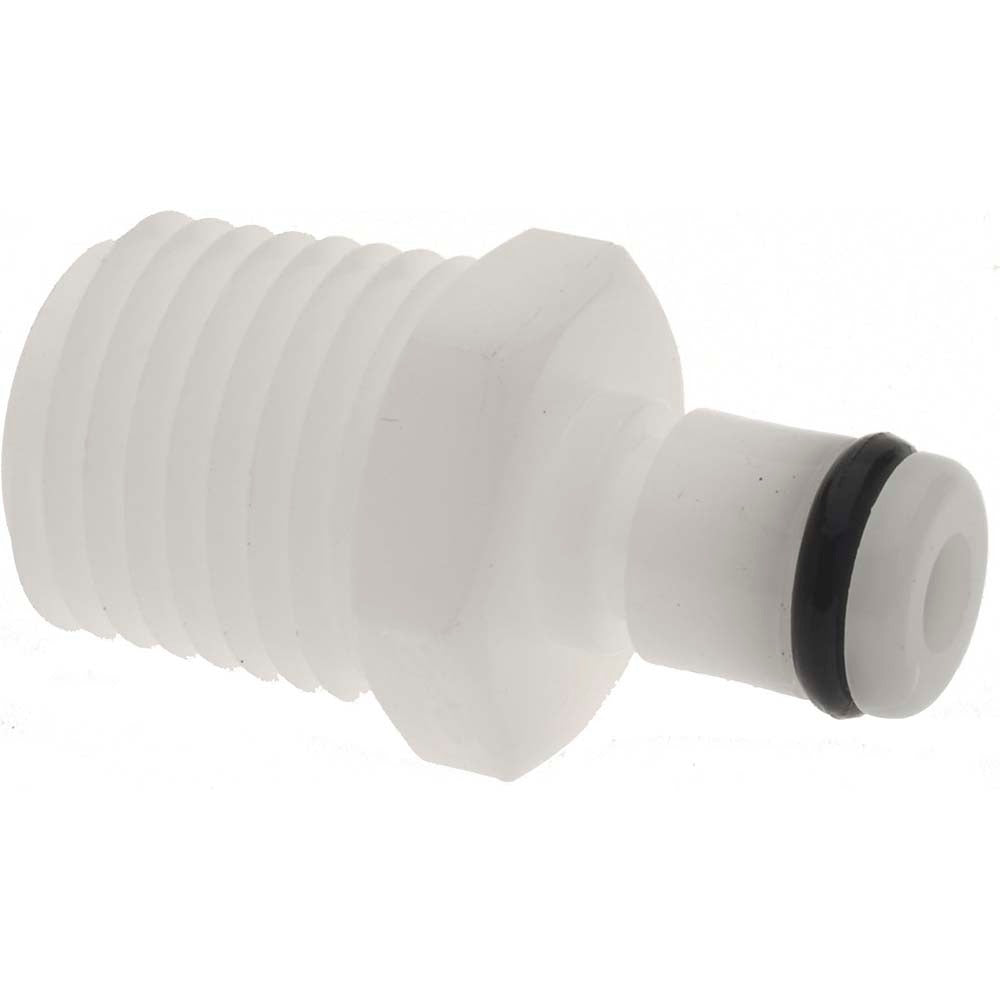

The CPC COLDER PRODUCTS PMC2404 is an inline threaded male plug designed for quick-disconnect fluid handling applications. This fitting accepts a 1/4 NPT male thread and provides a 1/8-inch nominal flow path. The body is constructed from acetal (POM), a rigid thermoplastic well suited to chemical resistance and dimensional stability under pressure. A Buna-N O-ring provides the sealing interface. Rated to 120 psi maximum working pressure and operable across a temperature range of -40 to 180 degrees F, this plug suits a broad range of liquid cooling, pneumatic, and fluid transfer circuits encountered in HVAC, refrigeration, and industrial service environments.

This plug is used in inline plumbing configurations where a threaded male connection point is required on a fluid line. Typical installations include chilled water circuits, process cooling lines, equipment manifolds, and pneumatic distribution systems in both light commercial and industrial settings. Licensed plumbers, HVAC technicians, and mechanical contractors install this fitting when assembling or servicing quick-disconnect coupler systems that require a threaded male plug terminus.

Key Features

• 1/8-inch nominal flow size for low-flow fluid and pneumatic circuits
• 1/4 NPT male thread for standard threaded port connections
• Acetal (POM) body offers chemical resistance and structural rigidity
• Buna-N O-ring seal rated for a wide range of fluid media
• 120 psi maximum working pressure for demanding service conditions
• Operating temperature range of -40 to 180 degrees F

Compatibility

Designed as an OEM-style inline threaded male plug for quick-disconnect coupling systems using 1/4 NPT male threaded connections with a 1/8-inch nominal flow path.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical technician. Depressurize and drain the fluid circuit completely before removing or installing any fitting. Apply thread sealant appropriate to the fluid media and temperature range when making NPT connections, and tighten to the fitting manufacturer's recommended engagement without over-torquing the acetal body. Verify the system does not exceed the 120 psi working pressure rating after returning to service.
