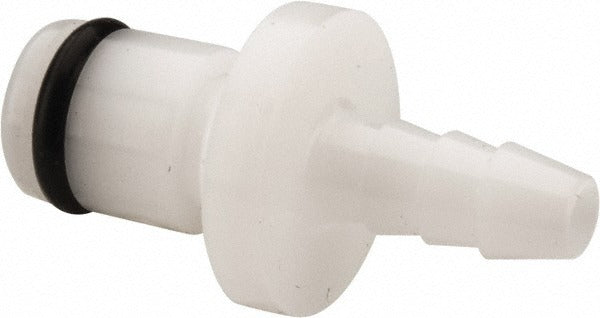

Cpc Colder Products PMC2202 Inline Hose Barb Male Plug

Product Description

The CPC COLDER PRODUCTS PMC2202 is an inline hose barb male plug designed to seal off fluid lines in low-pressure plumbing and fluid-handling systems. This coupling plug accepts a 1/8-inch inside-diameter hose barb and is rated for a maximum working pressure of 120 psi. Constructed from acetal (POM) with a Buna-N O-ring, it delivers solid chemical resistance and dimensional stability across a wide service range. Licensed plumbers, fluid-system technicians, and industrial maintenance personnel install this type of fitting during system service, line isolation, or reconfiguration tasks.

The PMC2202 is suited for inline fluid line applications where a barbed male plug is needed to terminate or cap a 1/8-inch ID hose connection. Its operating temperature range of -40 to 180 degrees F makes it compatible with both chilled-water and moderately heated fluid circuits. Typical installations include light industrial equipment, laboratory fluid systems, medical device plumbing, and HVAC auxiliary tubing where quick-disconnect or inline plug fittings are specified.

Key Features

• 1/8-inch nominal flow size with 1/8-inch tube inside diameter
• Maximum working pressure of 120 psi for reliable line sealing
• Wide service temperature range: -40 to 180 degrees F
• Acetal (POM) body construction for chemical resistance and low moisture absorption
• Buna-N O-ring provides a positive, leak-resistant seal
• Male inline hose barb plug configuration for straightforward line termination

Compatibility

Designed as an OEM-style inline plug for 1/8-inch ID hose barb fluid line connections in light industrial, laboratory, and HVAC auxiliary plumbing applications.

Installation Notes

Installation should be performed by a qualified plumber or fluid-systems technician. Depressurize and drain the fluid line completely before removing or installing any inline fitting. Verify that hose ID and barb sizing match before seating the barb to avoid fitting pullout under pressure. Confirm that the Buna-N O-ring is properly seated and undamaged prior to pressurizing the system.
