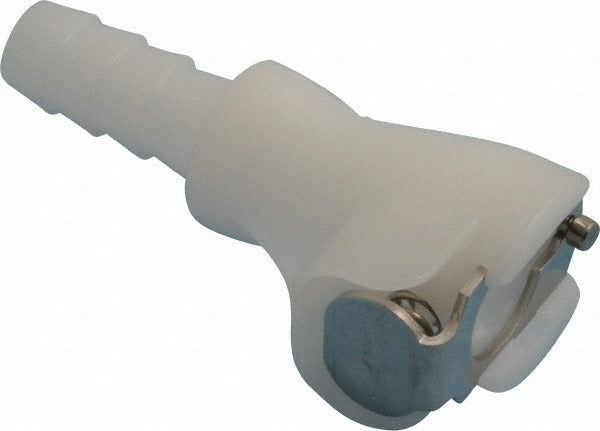

Cpc Colder Products PMC1704 Inline Hose Barb Coupling

Product Description

The CPC COLDER PRODUCTS PMC1704 is an inline hose barb female socket coupling designed for fluid transfer applications in plumbing, HVAC, and industrial systems. This fitting features a 1/8 inch nominal flow size with a 1/4 inch inside diameter and accepts a standard hose barb connection on the inline end with a female socket on the mating end. Constructed from acetal (POM) with a Buna-N O-ring seal, the PMC1704 handles a maximum working pressure of 120 psi and operates across a wide temperature range of -40 to 180 degrees F. It weighs 0.15 pounds and is sold individually.

The PMC1704 is suited for residential and light commercial fluid line connections where a secure, leak-resistant inline coupling is required. Typical applications include tubing assemblies, water treatment systems, and process fluid lines where quick-connect or push-in fittings are used alongside barbed tubing. The acetal body offers good chemical resistance for many common fluid media. Licensed plumbers, HVAC technicians, and industrial maintenance professionals are the primary installers of this fitting type.

Key Features

• Inline hose barb to female socket configuration for direct tubing integration
• 1/8 inch nominal flow size with 1/4 inch inside diameter
• Acetal (POM) body provides chemical resistance and durability
• Buna-N O-ring seal rated to 120 psi maximum working pressure
• Wide operating temperature range: -40 to 180 degrees F

Compatibility

Designed as an OEM-style inline hose barb female socket coupling for fluid transfer tubing assemblies requiring 1/4 inch inside diameter barb connections at 1/8 inch nominal flow.

Installation Notes

Installation should be performed by a qualified plumber or HVAC technician familiar with fluid line fittings and applicable local codes. Shut off fluid supply and depressurize the line before removing or installing any coupling. Ensure the hose barb end is fully seated and secured with an appropriate clamp to prevent pull-off under pressure. Do not exceed the rated working pressure of 120 psi or the stated temperature limits.
