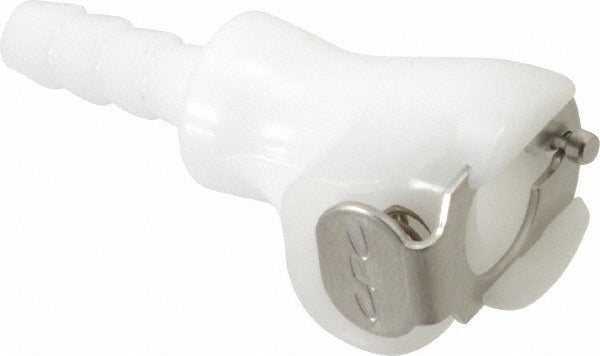

Cpc Colder Products PMC1703 Inline Hose Barb Female Socket

Product Description

The CPC COLDER PRODUCTS PMC1703 is an inline hose barb to female socket coupling designed for fluid handling and tubing connections in a wide range of industrial and trade applications. This quick-disconnect style fitting accepts 3/16 inch inner diameter tubing and delivers 1/8 inch nominal flow. Constructed from acetal with a Buna-N o-ring, the PMC1703 handles working pressures up to 120 psi and operates reliably across a temperature range of -40 to 180 degrees F. It is installed by plumbing, HVAC, and industrial maintenance technicians wherever a secure, leak-resistant inline connection is required between flexible tubing runs.

The PMC1703 is suited for inline tubing assemblies in light industrial, laboratory, medical equipment, and fluid transfer systems. The female socket configuration allows for tool-free mating with compatible male inserts, making it a practical choice for systems that require periodic disconnection without fluid spillage. Its compact form factor fits into tight plumbing layouts where space is limited.

Key Features

• Acetal body construction for chemical resistance and dimensional stability
• Buna-N o-ring provides a reliable fluid seal across the rated temperature range
• Rated to 120 psi maximum working pressure
• Operating temperature range of -40 to 180 degrees F
• 3/16 inch inner diameter hose barb accepts standard flexible tubing
• 1/8 inch nominal flow size for low-to-moderate flow applications

Compatibility

Designed as an OEM-style inline coupling for flexible tubing assemblies with a 3/16 inch inner diameter, compatible with systems rated within the 120 psi and -40 to 180 degrees F operating envelope.

Installation Notes

Installation is performed by qualified plumbing or industrial maintenance technicians. Depressurize and drain the fluid circuit fully before disconnecting or installing any coupling. Ensure tubing is fully seated on the barb and secured with an appropriate clamp to maintain rated pressure integrity. Verify that process fluid compatibility with acetal and Buna-N is confirmed before installation.
