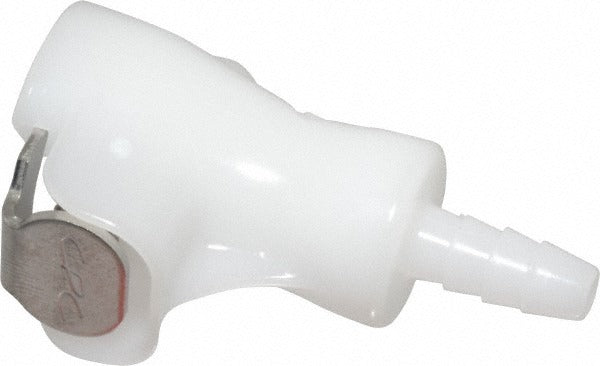

Cpc Colder Products PMC1702 Inline Hose Barb Coupling

Product Description

The CPC COLDER PRODUCTS PMC1702 is an inline hose barb female socket coupling designed for fluid transfer applications in plumbing, industrial, and fluid-handling systems. The coupling features a 1/8 inch nominal flow size and accepts tubing with a 1/8 inch inside diameter. It is constructed from acetal (POM) with a Buna-N O-ring seal, giving it solid chemical resistance and durability across a wide temperature range. Rated to 120 psi maximum working pressure and suitable for temperatures from -40 to 180 degrees F, this fitting handles demanding service conditions. Plumbers, fluid system technicians, and industrial maintenance professionals typically work with this type of fitting.

The PMC1702 is suited for inline connection points in low-flow fluid circuits where a hose barb entry connects to a female socket on the mating side. Typical applications include laboratory fluid lines, cooling circuits, and light industrial fluid distribution systems. The acetal body resists many common chemicals and moisture, making it appropriate for water-based and mild fluid service. Its compact size and single-piece inline design allow installation in tight spaces where rigid pipe fittings are impractical.

Key Features

• 1/8 inch nominal flow size with 1/8 inch inside diameter hose barb connection
• Acetal (POM) body construction for chemical resistance and dimensional stability
• Buna-N O-ring seal provides reliable, leak-resistant performance
• Rated to 120 psi maximum working pressure
• Wide operating temperature range: -40 to 180 degrees F
• Inline hose barb to female socket configuration for straightforward plumbing integration

Compatibility

Designed as an OEM-style inline coupling fitting for fluid transfer systems requiring a 1/8 inch hose barb female socket connection in acetal construction.

Installation Notes

Installation is typically performed by plumbers or fluid system technicians. Before servicing or replacing any inline coupling, depressurize the system completely and purge residual fluid from the line. Ensure hose barb tubing is fully seated and secured with an appropriate clamp to prevent pull-off under pressure. Verify that the fluid media and operating conditions are compatible with acetal and Buna-N materials before placing the fitting into service.
