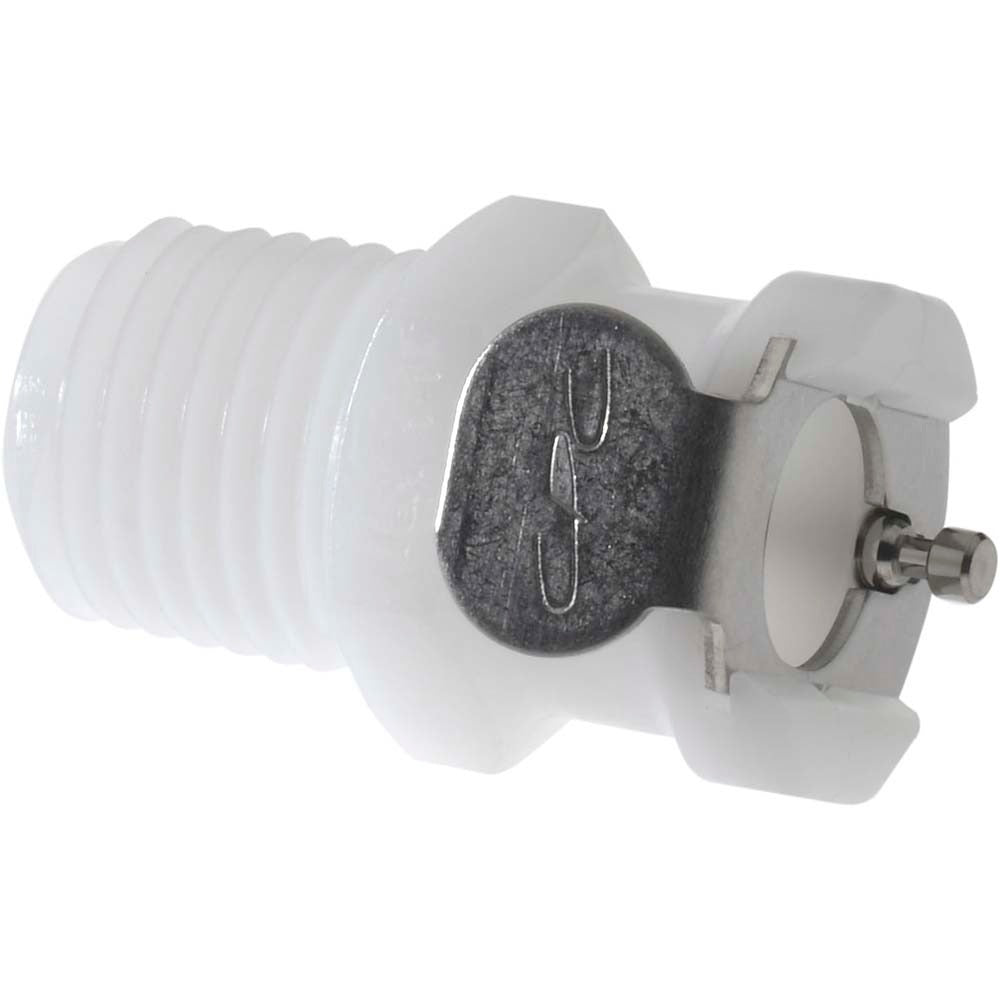

Cpc Colder Products PMC1004 Inline Threaded Female Socket

Product Description

The CPC COLDER PRODUCTS PMC1004 is an inline threaded female socket designed for fluid handling and pneumatic line connections in industrial and commercial plumbing applications. Built from acetal (POM) with a Buna-N O-ring seal, this coupling handles a maximum working pressure of 120 psi and operates across a temperature range of -40 to 180 degrees F. The 1/4 NPT female thread provides a standard, reliable connection point. This type of fitting is typically installed by plumbers, industrial maintenance technicians, and fluid system integrators working on coolant, water, or low-pressure air lines.

The PMC1004 is suited for inline installation on tubing or pipe assemblies where a 1/8 inch nominal flow path and a 1/4 NPT threaded female socket are required. Its acetal construction makes it a practical choice for applications where corrosion resistance and chemical compatibility with water-based or mild chemical media are needed. Typical use cases include laboratory fluid systems, industrial cooling circuits, and light-duty pneumatic assemblies operating within the rated pressure and temperature limits.

Key Features

• 1/8 inch nominal flow size for controlled, low-volume fluid or air passage
• 1/4 NPT female thread for standard pipe and fitting connections
• 120 psi maximum working pressure rating
• Operating temperature range: -40 to 180 degrees F
• Acetal (POM) body construction for corrosion resistance and chemical compatibility
• Buna-N O-ring seal for reliable leak-resistant performance

Compatibility

Designed as an OEM-style inline threaded female socket fitting compatible with standard 1/4 NPT male-threaded plumbing and fluid system components operating within the rated pressure and temperature specifications.

Installation Notes

Installation should be performed by a qualified plumber or fluid systems technician. Depressurize and drain the line completely before removing or installing any coupling fitting. Apply thread sealant appropriate for the media being conveyed and do not overtighten, as acetal threads can crack under excessive torque. Follow all applicable IPC guidelines for fluid system connections and verify compatibility of the Buna-N O-ring with the specific fluid media before commissioning.
