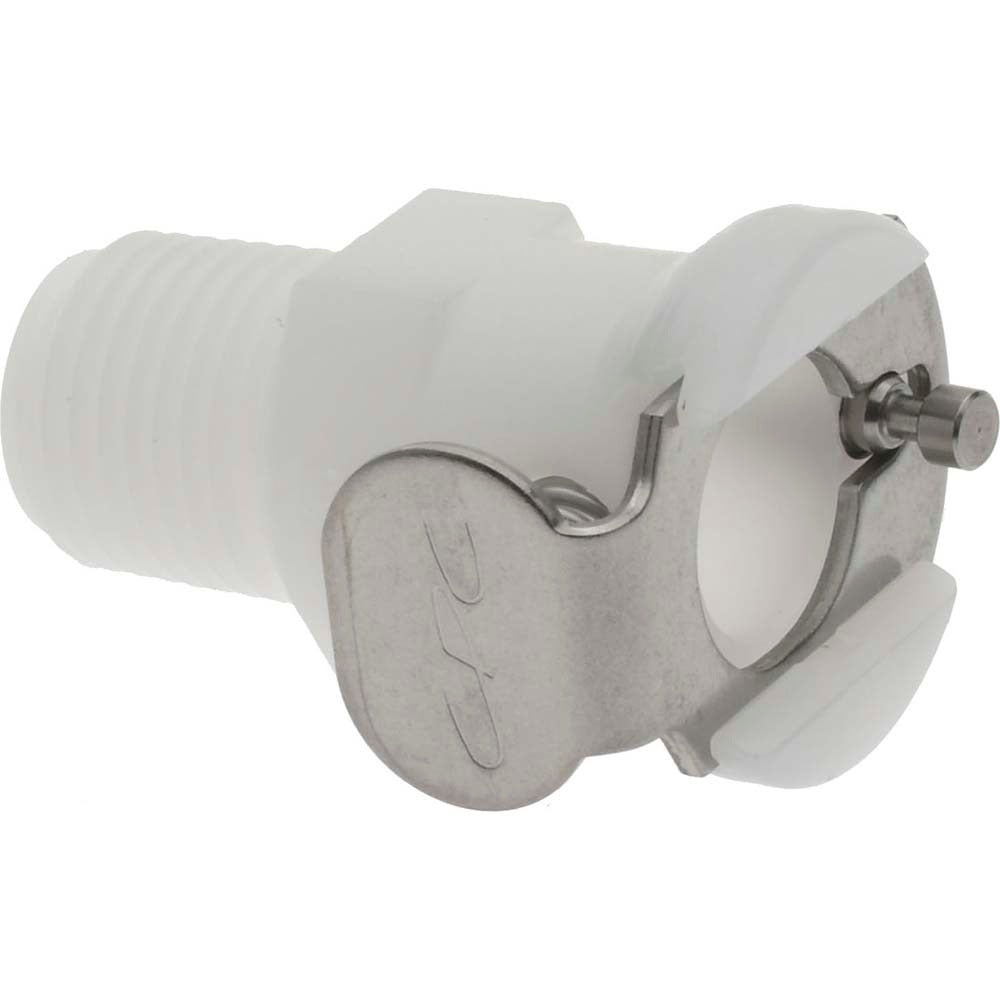

Cpc Colder Products PMC1002 Inline Female Socket 1/8 Npt

Product Description

The CPC COLDER PRODUCTS PMC1002 is an inline threaded female socket coupling designed for fluid handling and pneumatic line connections. It accepts a 1/8 NPT female thread and provides a nominal flow size of 1/8 inch. Constructed from acetal (POM) with a Buna-N O-ring seal, this socket is rated for a maximum working pressure of 120 psi and handles temperatures from -40 degrees F to 180 degrees F. Plumbers, HVAC technicians, and fluid system installers use this fitting to create secure, inline connections in low-to-medium pressure liquid or gas circuits.

The PMC1002 is suited for residential and light commercial applications where a compact inline socket connection is needed. Typical installations include fluid transfer systems, compressed air lines, cooling circuits, and pneumatic equipment feeds. The acetal body resists many common chemicals and provides dimensional stability across the rated temperature range, making it a reliable choice for service environments where repeated connect and disconnect cycles are expected.

Key Features

• 1/8 NPT female thread for straightforward inline installation
• Acetal (POM) body construction for chemical resistance and dimensional stability
• Buna-N O-ring seal for reliable pressure containment
• Rated to 120 psi maximum working pressure
• Wide operating temperature range: -40 degrees F to 180 degrees F
• Compact inline design for space-constrained plumbing and pneumatic assemblies

Compatibility

Designed as an OEM-style inline threaded female socket fitting compatible with standard 1/8 NPT male-threaded components in fluid and pneumatic systems.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified fluid systems technician. Shut off and depressurize the line completely before removing or installing any coupling. Apply thread sealant or PTFE tape as appropriate per system requirements and local plumbing codes. Do not exceed the rated working pressure or temperature limits of the fitting.
