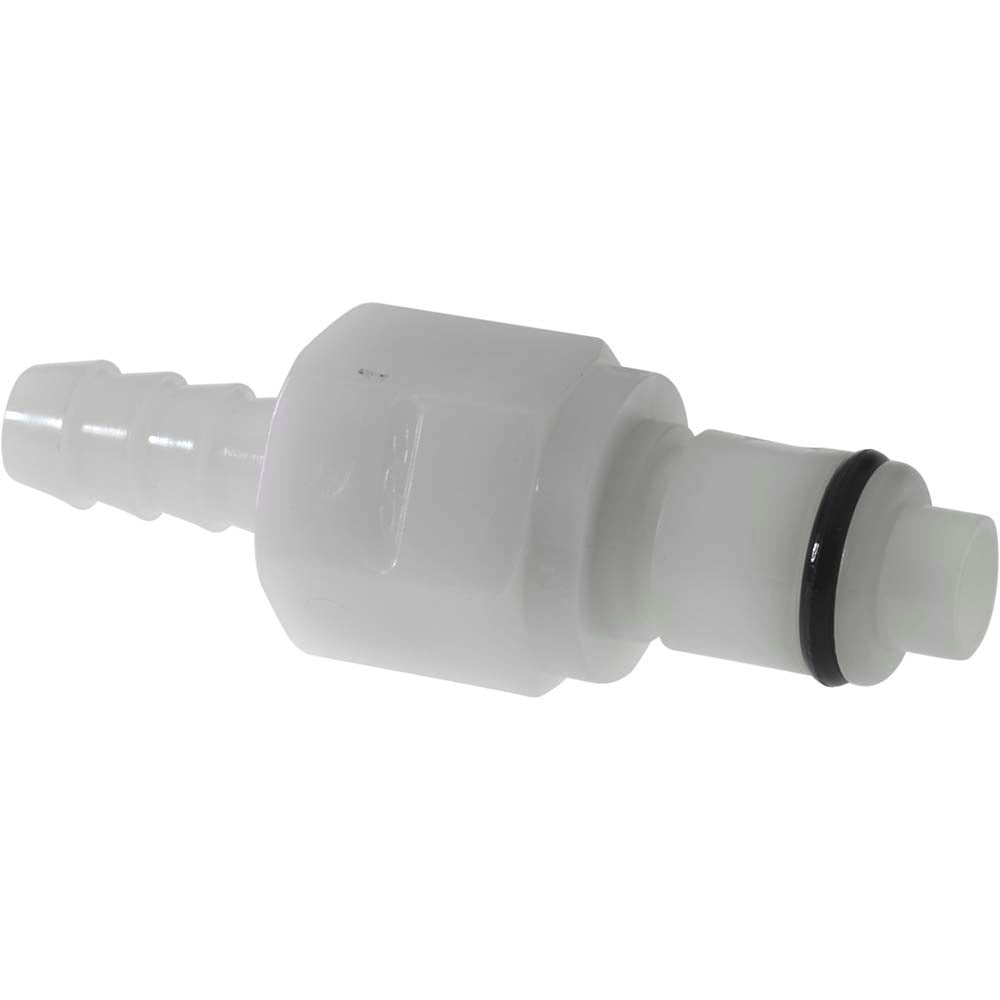

Cpc Colder Products PLCD22004 Inline Hose Barb Male Plug

Product Description

The CPC COLDER PRODUCTS PLCD22004 is an inline hose barb male plug designed for quick-disconnect fluid line applications. It features a 1/4 inch nominal flow size and accepts tubing with a 1/4 inch inside diameter. The body is constructed from acetal (POM) with a Buna-N O-ring seal, delivering reliable shutoff performance across a working pressure range up to 120 psi and a temperature range of -40 degrees F to 180 degrees F. Plumbers, HVAC technicians, and fluid-handling specialists install this fitting where a positive shutoff is required at an inline hose barb connection point.

This male plug is suited for residential and light commercial fluid transfer systems where tubing must be capped or disconnected cleanly without line purging. Typical applications include cooling circuits, water treatment lines, chemical dosing systems, and equipment that requires frequent service disconnects. The inline barb configuration allows direct insertion into compatible hose or tubing without additional adapters. The acetal construction resists many common industrial fluids, making it appropriate for a range of low-to-medium pressure plumbing and process line scenarios.

Key Features

• Shutoff valve type provides positive flow control when disconnected
• Acetal (POM) body resists common industrial fluids and corrosion
• Buna-N O-ring seal maintains integrity across the rated pressure and temperature range
• Rated to 120 psi maximum working pressure
• Operating temperature range of -40 degrees F to 180 degrees F
• 1/4 inch nominal flow with 1/4 inch ID hose barb for direct tubing attachment

Compatibility

Designed as an OEM-style inline male plug fitting compatible with standard 1/4 inch ID hose barb quick-disconnect coupling systems rated for the same pressure and temperature parameters.

Installation Notes

Install by a qualified plumber or fluid-systems technician. Depressurize and drain the line completely before removing or installing any inline fitting. Ensure the mating female coupling is the correct series and flow size before assembly. Verify the fluid media is compatible with acetal body material and Buna-N O-ring before placing the line into service.
