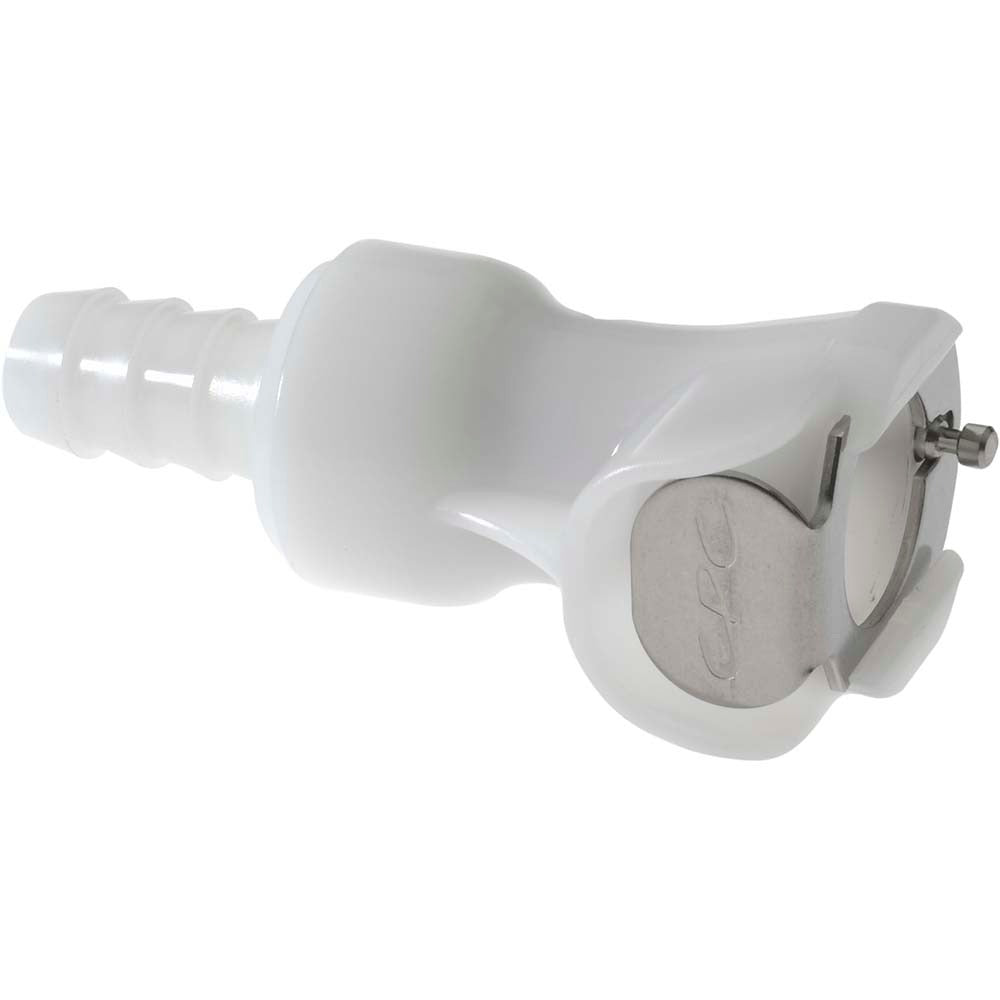

Cpc Colder Products PLCD17005 Inline Hose Barb Coupling

Product Description

The CPC COLDER PRODUCTS PLCD17005 is a female inline hose barb-to-female socket coupling designed for fluid transfer applications requiring a reliable shutoff connection. Built from acetal (POM) with a Buna-N O-ring seal, this fitting handles a maximum working pressure of 120 psi and operates across a temperature range of -40 to 180 degrees F. With a nominal flow size of 1/4 inch and a tube inside diameter of 5/16 inch, it is sized for common low-to-medium-flow hose assemblies. Licensed plumbers, industrial maintenance technicians, and fluid system installers typically work with this type of coupling.

The PLCD17005 is suited for inline hose barb connections in fluid handling systems where a shutoff valve is integrated directly into the coupling body. The acetal construction makes it appropriate for water, coolant, and many chemical fluid lines in both light industrial and OEM equipment contexts. The female socket end mates with compatible CPC-style insert fittings, allowing tool-free disconnection while the shutoff valve prevents fluid spillage when the coupling is separated. This fitting is packaged and sold individually.

Key Features

• Integrated shutoff valve prevents fluid spillage during disconnection
• Acetal (POM) body offers resistance to moisture, fuels, and many solvents
• Buna-N O-ring provides a reliable seal across the rated pressure and temperature range
• 1/4 inch nominal flow size with 5/16 inch tube inside diameter for common hose assemblies
• Rated to 120 psi maximum working pressure
• Wide service temperature range: -40 to 180 degrees F

Compatibility

Designed as an OEM-style inline hose barb female socket coupling compatible with standard CPC-style quick-disconnect insert fittings in 1/4 inch nominal flow configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid system quick-disconnect fittings. Depressurize and drain the fluid line before disconnecting or installing any coupling. Confirm that the hose inside diameter matches the 5/16 inch barb before seating the hose, and ensure the barb is fully engaged and the hose is secured to prevent pullout under pressure. Do not exceed the 120 psi maximum working pressure or the rated temperature limits of this fitting.
