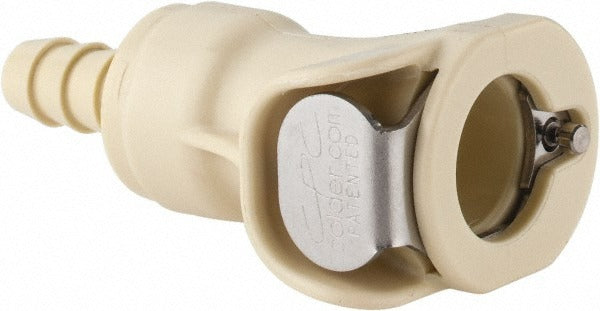

Cpc Colder Products PLCD1700412 Inline Hose Barb Coupling

Product Description

The CPC COLDER PRODUCTS PLCD1700412 is a polypropylene inline hose barb female socket coupling designed for fluid handling systems requiring a secure, shutoff-style connection. Built with a 0.25 inch nominal flow size and a 0.25 inch inner diameter, this fitting accepts standard hose barb connections and incorporates an EPDM O-ring for reliable sealing. It handles working pressures up to 120 psi and operates across a temperature range of 32 degrees F to 160 degrees F. Licensed plumbers, HVAC technicians, and fluid system installers working with liquid transfer or cooling lines will find this fitting straightforward to integrate into new or existing assemblies.

This coupling is suited for inline fluid line applications where a female socket entry point is required on the hose barb side. Its shutoff valve type allows flow to be interrupted at the coupling point, making it practical for maintenance access on cooling, water treatment, and process fluid lines in both light commercial and residential settings. The polypropylene body resists corrosion and is appropriate for a range of compatible media within its rated pressure and temperature envelope.

Key Features

• Shutoff valve type allows flow to be stopped at the coupling point without additional valving
• Polypropylene body provides corrosion resistance for compatible fluid applications
• EPDM O-ring delivers consistent sealing across the rated temperature range
• Rated to 120 psi maximum working pressure
• Operating temperature range of 32 degrees F to 160 degrees F
• 0.25 inch nominal flow size with 0.25 inch inner diameter for direct hose barb fitment

Compatibility

Designed as an OEM-style inline hose barb female socket coupling for fluid handling, cooling, and liquid transfer line applications requiring a 0.25 inch ID shutoff-style connection.

Installation Notes

Installation should be performed by a licensed plumber or qualified fluid systems technician. Depressurize and drain the line completely before disconnecting or installing any coupling. Verify that the media, pressure, and temperature of the application fall within the rated limits of this fitting before placing it into service. Follow applicable plumbing codes, including IPC guidelines, for fluid connection integrity and system testing.
