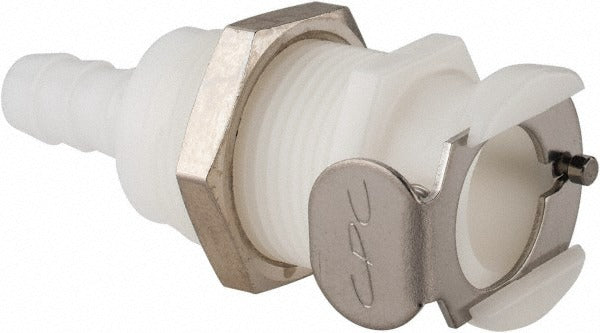

Cpc Colder Products PLC16004NA Panel Mount Hose Barb Socket

Product Description

The CPC COLDER PRODUCTS PLC16004NA is a panel mount hose barb female socket designed for quick-disconnect fluid line applications. It features a 1/4 inch nominal flow size with a 1/4 inch tube inside diameter and is constructed from acetal (POM) with a Buna-N O-ring seal. Rated to 120 psi maximum working pressure and capable of handling temperatures from -40 to 180 degrees F, this fitting suits a wide range of industrial and process fluid systems. Licensed plumbers, fluid system technicians, and equipment assemblers commonly install this style of coupling on panel-mounted fluid distribution assemblies.

This panel mount socket is suited for use in residential and light commercial fluid handling systems where a secure, leak-resistant barb connection is required at a panel or bulkhead. Its acetal construction resists many common process fluids and cleaning agents, making it appropriate for OEM equipment assemblies, cooling circuits, and fluid transfer panels. The female socket design mates with compatible male inserts to allow repeated connect-disconnect cycles without tools.

Key Features

• 1/4 inch nominal flow size with 1/4 inch tube inside diameter for consistent flow performance
• 120 psi maximum working pressure for reliable service in pressurized fluid lines
• Operating temperature range of -40 to 180 degrees F suits both cold and warm fluid applications
• Acetal (POM) body construction offers chemical resistance and dimensional stability
• Buna-N O-ring provides a positive, low-leak seal at the connection interface
• Panel mount configuration allows secure bulkhead installation in equipment enclosures

Compatibility

Designed as an OEM-style panel mount female socket for use in quick-disconnect hose barb coupling systems requiring a 1/4 inch nominal flow connection.

Installation Notes

Installation is typically performed by plumbers, fluid system technicians, or OEM equipment assemblers. Depressurize and drain the fluid line completely before removing or installing any coupling component. Ensure the panel or bulkhead cutout dimensions match the fitting body before mounting to achieve a proper seal. Follow all applicable plumbing codes and the equipment manufacturer guidelines for fluid line assembly.
