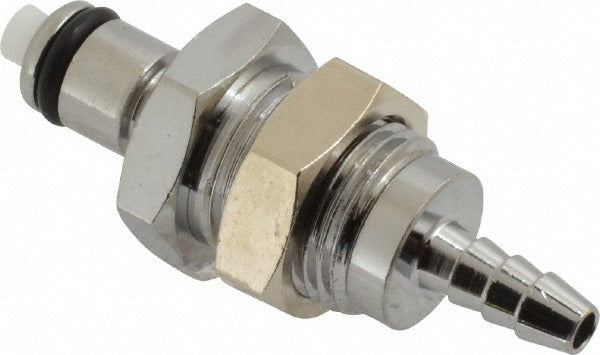

Cpc Colder Products MCD4202NA Quick Disconnect Coupling

Product Description

The CPC COLDER PRODUCTS MCD4202NA is a brass, hose barb valved panel mount coupling insert designed for quick disconnect fluid line applications. It features a 1/8 inch inside tube diameter and a chrome plated finish for corrosion resistance. With a rated maximum pressure of 250 psi and an operating temperature range of -40 to 180 degrees F, this fitting suits demanding fluid transfer environments. The overall assembled length is 1.87 inches with an overall height of 0.75 inches. It is typically installed by plumbing, HVAC, or fluid system technicians working on panel-mounted hydraulic or liquid cooling circuits.

This coupling insert is suited for use in residential, commercial, and light industrial fluid systems where quick disconnect panel mount connections are required. It accommodates hose barb connections at 1/8 inch inside diameter, making it compatible with small-bore fluid lines. Panel mount configurations allow the fitting to be fixed to an enclosure or manifold surface, providing a reliable inline connect and disconnect point without tool access to the line itself.

Key Features

• 1/8 inch inside tube diameter hose barb connection for small-bore fluid lines
• Valved design maintains line integrity when disconnected, preventing fluid loss
• Panel mount configuration allows secure fixture to enclosures or manifolds
• Brass construction with chrome plated finish for strength and corrosion resistance
• Rated to 250 psi maximum operating pressure
• Wide temperature range: -40 to 180 degrees F

Compatibility

Designed as an OEM-style replacement or system-build component for panel-mounted quick disconnect fluid line assemblies using 1/8 inch inside diameter hose barb connections.

Installation Notes

Installation is typically performed by a licensed plumber or qualified fluid systems technician. Depressurize and drain the fluid line completely before removing or installing any quick disconnect fitting. Ensure the panel mount surface is clean and structurally sound before securing the fitting. Follow applicable IPC guidelines and the fitting manufacturer instructions for sealing and torque requirements.
