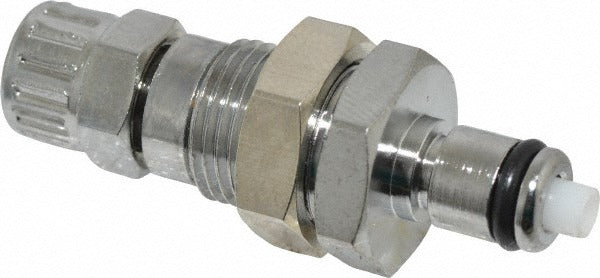

Cpc Colder Products MCD4004NA Panel Mount Coupling Insert

Product Description

The CPC COLDER PRODUCTS MCD4004NA is a valved panel mount coupling insert designed for quick-disconnect fluid line applications. Constructed from PTF brass with a chrome-plated finish, this insert provides a secure, leak-resistant connection point mounted directly to a panel or bulkhead. It is rated for pressures up to 250 psi and handles temperatures from -40 degrees F to 180 degrees F. The overall assembled length is 1.87 inches with an overall height of 0.63 inches. Plumbing professionals and fluid system technicians install this fitting in pressurized line systems where fast disconnection and panel-mounted access are required.

This coupling insert is suited for industrial and trade fluid handling systems where a valved quick-disconnect is needed at a panel or enclosure interface. The valved design automatically closes flow when the coupling is disconnected, reducing fluid loss during service. Typical installations include compressed fluid circuits, coolant distribution panels, and similar pressurized systems operating within the rated temperature and pressure envelope.

Key Features

• Maximum operating pressure of 250 psi for reliable performance in pressurized line systems
• Temperature range from -40 degrees F to 180 degrees F suits a wide range of service environments
• Valved design closes flow automatically upon disconnection to minimize fluid loss
• PTF brass body construction offers corrosion resistance in fluid handling applications
• Chrome-plated finish adds surface protection and a clean appearance
• Compact form factor at 1.87 inches OAL and 0.63 inches overall height for space-constrained panel installations

Compatibility

Designed as an OEM-style panel mount coupling insert compatible with MC series quick-disconnect systems from CPC COLDER PRODUCTS. Specific system or model compatibility should be confirmed against the MC series coupling mating body before installation.

Installation Notes

Installation is typically performed by a licensed plumber or qualified fluid systems technician. Depressurize and drain the line completely before removing or installing any coupling. Use appropriate wrenches sized to the fitting flats and avoid over-torquing brass fittings, which can crack the body or distort the seat. Verify that the mating coupling body is fully compatible with this insert before placing the system back in service.
