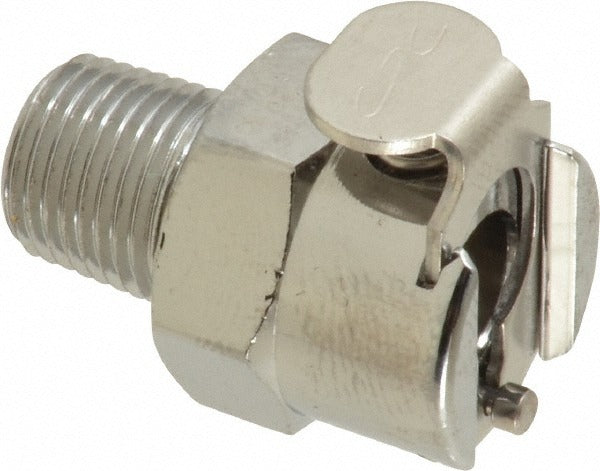

Cpc Colder Products MCD1002 Quick Disconnect Coupling

Product Description

The CPC COLDER PRODUCTS MCD1002 is a valved quick disconnect coupling body designed for fast, tool-free fluid line connections in a wide range of industrial and trade applications. Machined from brass with a chrome plated finish, this coupling body features a 1/8 NPT thread connection and an internal valve that stops flow when the coupling is disconnected. It holds up to 250 psi and operates across a temperature range of -40 to 180 degrees F. The compact form factor measures 1.08 inches overall length and 0.63 inches overall height, making it well suited for tight installations where space is limited.

This coupling body is commonly installed in fluid handling systems including coolant lines, pneumatic circuits, and process piping in light industrial, HVAC, and mechanical service environments. The 1/8 NPT thread size fits standard pipe fittings found in residential and light commercial equipment. Plumbers, pipefitters, and mechanical technicians typically install this fitting when a reliable, leak-resistant quick disconnect point is needed without requiring specialized tooling at the connection site.

Key Features

• Valved design stops flow automatically upon disconnection, minimizing fluid loss
• 1/8 NPT thread for compatibility with standard pipe fittings
• Brass construction with chrome plated finish for corrosion resistance
• Rated to 250 psi maximum working pressure
• Wide operating temperature range: -40 to 180 degrees F
• Compact size: 1.08 inches overall length x 0.63 inches overall height

Compatibility

Designed as an OEM-style replacement or new-install quick disconnect coupling body for fluid systems using 1/8 NPT threaded connections. Part of the CPC MC Series quick disconnect product line.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or qualified mechanical technicians. Shut off and depressurize the fluid system completely before installing or replacing any coupling body. Apply thread sealant or PTFE tape to NPT threads in accordance with applicable IPC or IFGC guidelines. Do not exceed the rated working pressure of 250 psi during operation or testing.
