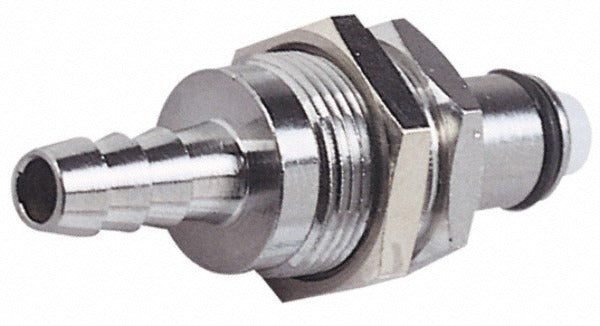

Cpc Colder Products MC4202NA Hose Barb Coupling Insert

Product Description

The CPC COLDER PRODUCTS MC4202NA is a brass quick disconnect hose barb panel mount coupling insert designed for fluid handling systems requiring fast, reliable connections. Built for 1/8 inch inside tube diameter hose barb applications, this insert handles up to 250 psi and operates across a temperature range of -40 to 180 degrees F. The chrome plated finish provides additional corrosion resistance. At 1.12 inches overall length and 0.75 inches overall height, this compact insert suits tight installations. Plumbers, HVAC technicians, and industrial fluid system specialists install this type of fitting in panel-mounted quick disconnect assemblies.

This coupling insert is suited for residential and light commercial fluid system applications where a panel-mount quick disconnect is required. The hose barb end accepts 1/8 inch inside diameter tubing, making it compatible with small-bore fluid lines common in cooling, pneumatic, and process control systems. Its compact form factor allows installation in equipment enclosures and panel cutouts where space is limited.

Key Features

• 1/8 inch inside tube diameter hose barb end for small-bore tubing connections
• Rated to 250 psi maximum working pressure
• Operating temperature range of -40 to 180 degrees F
• Brass construction with chrome plated finish for corrosion resistance
• Panel mount design for secure equipment enclosure installation
• Compact profile: 1.12 inches overall length, 0.75 inches overall height

Compatibility

Designed as an OEM-style replacement or new-installation panel mount quick disconnect coupling insert for fluid systems using 1/8 inch inside diameter hose barb connections rated to 250 psi.

Installation Notes

Installation is typically performed by licensed plumbers or qualified fluid system technicians. Depressurize and drain the system completely before removing or installing any quick disconnect fitting. Ensure the panel cutout dimensions match the fitting body for a secure mount. Follow applicable IPC guidelines and the fitting manufacturer recommendations for maximum torque and sealant use on threaded interfaces.
