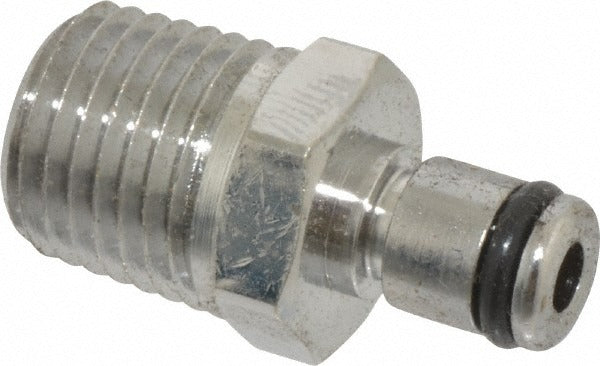

Cpc Colder Products MC2404 Coupling Insert 1/4 Inch Npt

Product Description

The CPC COLDER PRODUCTS MC2404 is a push-to-connect coupling insert designed for straight inline tube connections using a 1/4 inch NPT male thread. Constructed from chrome-plated brass, this non-valved fitting handles pressures up to 250 psi and operates across a wide temperature range of -40 degrees F to 180 degrees F. The push-to-connect mechanism allows for fast, tool-free tube insertion, reducing installation time in general-purpose fluid and pneumatic systems. Plumbers, HVAC technicians, and industrial pipefitters use this type of fitting where a reliable inline connection is needed without a shutoff valve at the coupling point.

The MC2404 suits general-purpose plumbing and fluid transfer applications where 1/4 inch OD tubing meets a male NPT port. Its straight configuration works in tight runs where a direct, low-profile connection is preferred. The chrome finish provides corrosion resistance in light-duty wet environments. The nitrile O-ring seals are well-suited to water, air, and many common industrial fluids across the rated temperature range.

Key Features

• Push-to-connect design for fast, tool-free tube insertion
• Rated to 250 psi for general-purpose pressure applications
• Chrome-plated brass body for corrosion resistance
• 1/4 inch NPT male thread for standard port compatibility
• Nitrile O-ring seal suitable for water, air, and common industrial fluids
• Non-valved design allows unrestricted flow when connected

Compatibility

Designed as a general-purpose push-to-connect coupling insert for systems using 1/4 inch OD tubing and 1/4 inch NPT male threaded ports in fluid or pneumatic applications.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified pipefitter. Depressurize and drain the system completely before removing or installing any fitting. Ensure the tube end is cut square and free of burrs before inserting into the push-to-connect body to achieve a proper seal. Apply thread sealant tape to the NPT threads in accordance with applicable plumbing codes before threading into the mating port.
