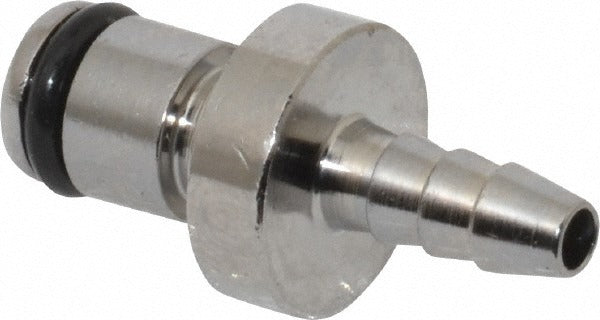

Cpc Colder Products MC2202 Hose Barb Coupling Insert

Product Description

The CPC COLDER PRODUCTS MC2202 is a brass, chrome-plated hose barb inline coupling insert designed for quick-disconnect fluid line connections. Built to accept a 1/8-inch inside tube diameter, this insert provides a secure, leak-resistant connection in pressurized fluid systems. With a maximum working pressure of 250 psi and a temperature range of -40 to 180 degrees F, the MC2202 handles demanding service conditions. The overall assembly measures 1.12 inches in length and 0.63 inches in overall height. Licensed plumbing and mechanical contractors, as well as qualified technicians, install this type of fitting in fluid handling and transfer systems.

The MC2202 is suited for use in residential and light commercial fluid line assemblies where quick-disconnect hose barb fittings are required. It is part of the MC Series product line and is appropriate for applications requiring reliable inline coupling in pressurized tubing circuits. Typical installations include equipment fluid loops, coolant lines, and similar low-diameter tubing systems where fast, tool-free disconnection is required.

Key Features

• 1/8-inch inside tube diameter hose barb design for secure tubing retention
• Brass construction with chrome plating for corrosion resistance and durability
• Maximum working pressure of 250 psi
• Operating temperature range of -40 to 180 degrees F
• Compact profile at 1.12 inches overall length and 0.63 inches overall height
• Quick-disconnect inline coupling format for fast installation and removal

Compatibility

Designed as an OEM-style quick-disconnect hose barb coupling insert compatible with 1/8-inch inside diameter flexible tubing in pressurized fluid line applications. Part of the CPC COLDER PRODUCTS MC Series.

Installation Notes

Installation should be performed by a qualified plumbing or mechanical technician. Depressurize and drain the fluid system completely before removing or installing any coupling insert. Verify that the tubing inside diameter and material are compatible with the fitting before assembly. Follow applicable local plumbing codes and the equipment manufacturer guidelines for fitting torque and assembly procedures.
