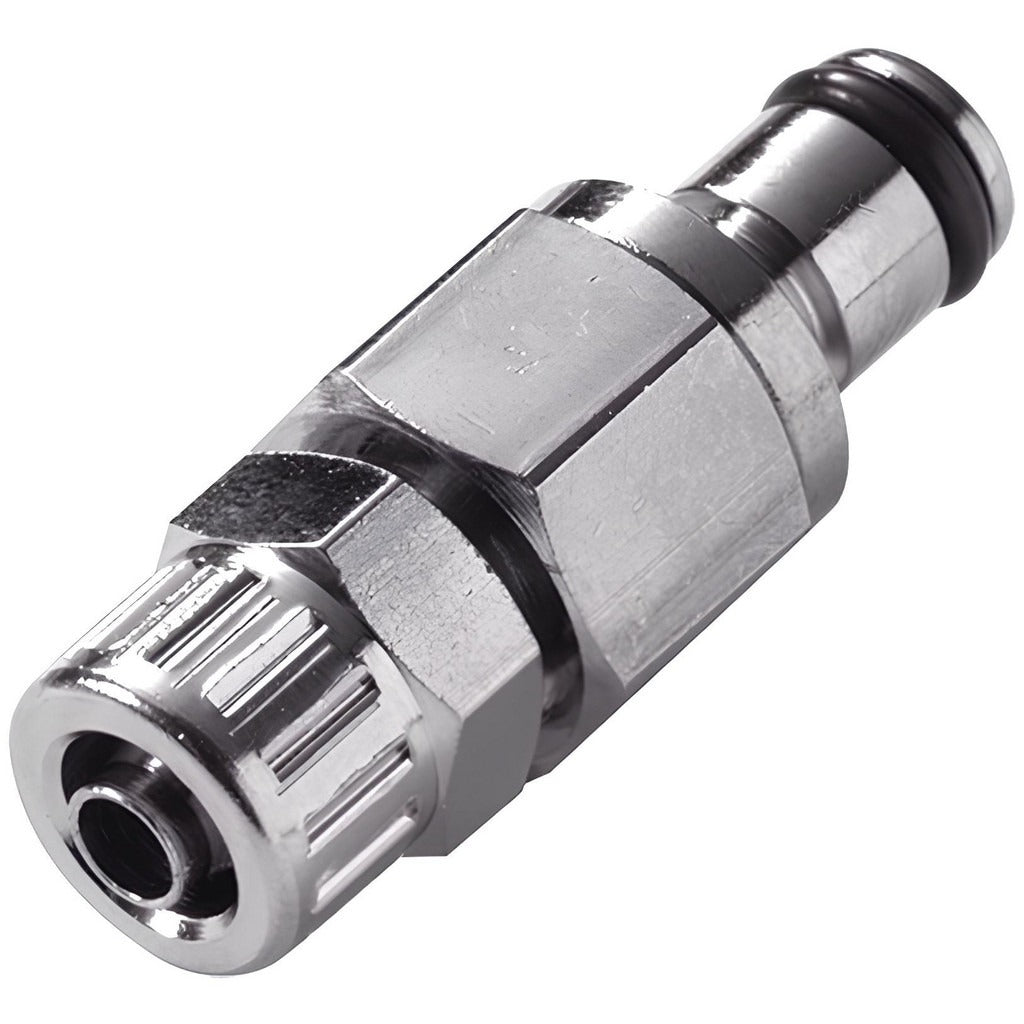

Cpc Colder Products MC2004NA Push-to-connect Coupling Insert

Product Description

The CPC COLDER PRODUCTS MC2004NA is a straight push-to-connect coupling insert designed for general-purpose fluid handling and pneumatic tubing systems. It accepts 1/4 inch OD tubing and features a chrome-plated brass body rated to 250 psi. The non-valved, free-floating design allows straightforward inline tube coupling without a shutoff mechanism. Plumbers, HVAC technicians, and fluid-system installers use this fitting where a reliable, tool-free tube connection is needed in compact runs. The nitrile O-ring provides a durable seal across a wide service temperature range, making it suitable for both cold and warm fluid applications.

This fitting is intended for general-purpose tubing installations in residential and light commercial environments. Its push-to-connect mechanism simplifies field assembly where quick, repeatable connections are required. Typical applications include water supply lines, pneumatic control circuits, and general fluid transfer tubing. The chrome finish and brass construction suit both exposed and concealed installations where corrosion resistance is a priority.

Key Features

• Push-to-connect design for tool-free, repeatable tube insertion with 1/4 inch OD tubing
• Chrome-plated brass body rated to 250 psi working pressure
• Non-valved, free-floating configuration for simple inline coupling
• Nitrile O-ring seal compatible with a broad range of general-purpose fluids
• Operating temperature range: -40 degrees F to 180 degrees F
• Straight coupling insert geometry for direct tube-to-tube connections

Compatibility

Designed as an OEM-style push-to-connect coupling insert for general-purpose tubing systems accepting 1/4 inch OD tube with NPT thread compatibility.

Installation Notes

Installation is performed by plumbers, HVAC technicians, or fluid-system mechanics. Before connecting or disconnecting, isolate and depressurize the tubing circuit completely. Ensure tubing ends are cut cleanly and squarely with no burrs before insertion into the fitting to maintain O-ring integrity. Follow applicable IPC and local plumbing code requirements for fluid system connections.
