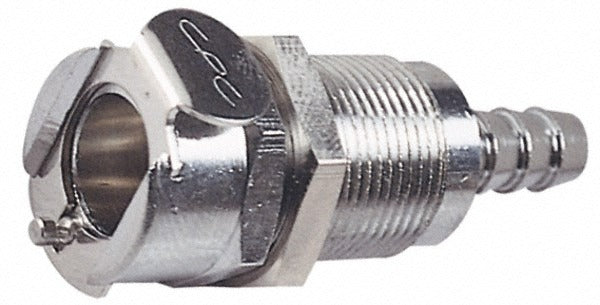

Cpc Colder Products MC1602NA Quick Disconnect Coupling Body

Product Description

The CPC COLDER PRODUCTS MC1602NA is a brass, hose barb panel mount coupling body designed for quick disconnect fluid line connections. Built for the MC series, this fitting accepts a 1/8 inch inside tube diameter hose barb and mounts directly through a panel for clean, low-profile installations. It handles up to 250 psi and operates across a temperature range of -40 to 180 degrees F. The chrome plated finish adds corrosion resistance suitable for demanding service environments. Overall length is 1.87 inches with an overall height of 0.75 inches. Plumbers, fluid system technicians, and industrial service pros install this fitting where secure panel-mounted quick connect capability is required.

This coupling body is suited for residential and light commercial fluid handling systems where a panel-mounted quick disconnect is needed. Typical applications include equipment manifolds, coolant circuits, chemical dosing lines, and fluid transfer systems that require frequent connect and disconnect cycles without tools. The hose barb end accepts standard flexible tubing with a 1/8 inch inside diameter, making it compatible with a wide range of light-duty fluid circuit assemblies in HVAC, refrigeration, and process equipment.

Key Features

• 1/8 inch inside tube diameter hose barb connection for standard flexible tubing
• Panel mount design allows secure bulkhead installation in equipment enclosures
• Rated to 250 psi maximum working pressure
• Operating temperature range of -40 to 180 degrees F
• Brass construction with chrome plated finish for corrosion resistance
• Compact profile: 1.87 inches overall length, 0.75 inches overall height

Compatibility

Designed as an OEM-style replacement or new-installation fitting for quick disconnect fluid line assemblies using 1/8 inch inside diameter hose barb tubing in panel-mounted configurations. Part of the CPC MC series.

Installation Notes

Installation is typically performed by plumbers or fluid system technicians. Depressurize and drain the fluid circuit completely before removing or installing any quick disconnect fitting. Ensure the panel cutout dimensions match the coupling body mounting requirements before installation. Follow applicable plumbing and fluid system codes for the specific application and fluid type being conveyed.
