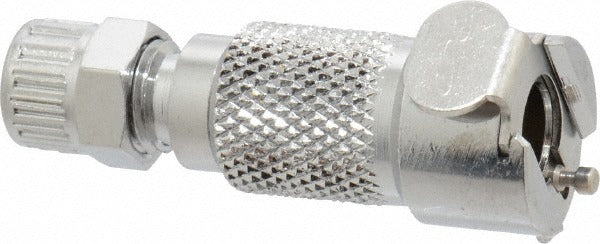

Cpc Colder Products MC1304NA Push-to-connect Coupling

Product Description

The CPC COLDER PRODUCTS MC1304NA is a straight push-to-connect coupling body designed for quick, tool-free tube connections in general-purpose fluid handling systems. Constructed from chrome-plated brass, it accepts 1/4-inch OD tubing and holds a maximum working pressure of 250 psi. The non-valved, free-floating design allows fluid to pass through without interruption when connected. This fitting is installed by plumbers, HVAC technicians, and fluid system technicians in applications where fast, reliable tube connections are required without threading or compression tooling.

This coupling body is suited for general-purpose plumbing and fluid transfer lines in both light commercial and residential settings. The push-to-connect interface allows tubing to seat and seal with a single straight insertion, reducing installation time on new runs and service calls alike. The chrome finish provides corrosion resistance in typical indoor environments. Operating temperature range spans from -40 degrees F to 180 degrees F, making it appropriate for a wide range of ambient and process conditions.

Key Features

• Push-to-connect interface allows tool-free tube insertion for fast installation
• Chrome-plated brass construction offers corrosion resistance and durability
• Rated to 250 psi maximum working pressure
• Non-valved, free-floating design allows unrestricted flow when connected
• Nitrile O-ring provides reliable sealing across the rated temperature range
• Operating range of -40 degrees F to 180 degrees F suits general-purpose fluid systems

Compatibility

Designed for use with 1/4-inch OD tubing in general-purpose fluid handling applications. Fitting connection type is push-to-connect with NPT thread type.

Installation Notes

Installation is performed by licensed plumbers or qualified fluid system technicians. Depressurize and isolate the fluid line completely before removing any existing fitting or inserting this coupling. Ensure tubing is cut cleanly and squarely with no burrs before insertion into the push-to-connect port. Follow applicable IPC and local plumbing code requirements for fitting selection and line pressure ratings.
