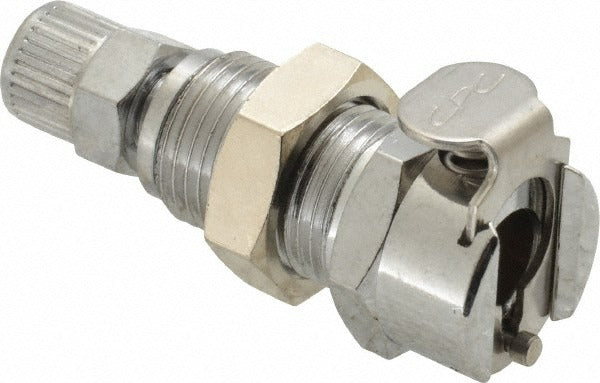

Cpc Colder Products MC12025NA Panel Mount Coupling Body

Product Description

The CPC COLDER PRODUCTS MC12025NA is a PTF brass, panel mount coupling body designed for quick-disconnect fluid line connections in industrial and trade applications. Rated to 250 psi maximum working pressure, it handles a wide service temperature range of -40 degrees F to 180 degrees F, making it suitable for demanding plumbing and fluid handling environments. The chrome-plated finish provides corrosion resistance and a clean appearance. With an overall length of 1.87 inches and an overall height of 0.63 inches, this compact coupling body installs directly into a panel or bulkhead to create a secure, leak-free disconnect point for fluid lines.

This coupling body is used in panel-mount and bulkhead applications where a quick-disconnect fitting must be secured to a surface or enclosure wall. Typical installations include fluid distribution panels, machine tool coolant systems, pneumatic lines, and industrial process equipment. It is commonly installed by plumbers, pipefitters, and industrial maintenance technicians who require a reliable, pressure-rated disconnect point at a fixed panel location. The MC Series design is a recognized standard in quick-disconnect coupling systems.

Key Features

• PTF brass construction for durable, pressure-rated fluid service
• Chrome-plated finish for corrosion resistance
• Maximum working pressure of 250 psi
• Wide service temperature range: -40 degrees F to 180 degrees F
• Compact panel-mount profile: 1.87 inches overall length x 0.63 inches overall height
• Quick-disconnect design allows fast, tool-free line connection and disconnection

Compatibility

Designed as an OEM-style panel mount coupling body within the MC Series quick-disconnect coupling system. Confirm series and thread specifications against existing fittings before installation.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or qualified industrial maintenance technician. Shut off and depressurize the fluid line completely before installing or servicing any quick-disconnect coupling. Ensure panel cutout dimensions and thread engagement meet system design requirements. Follow all applicable plumbing and fluid system codes for the installation environment.
