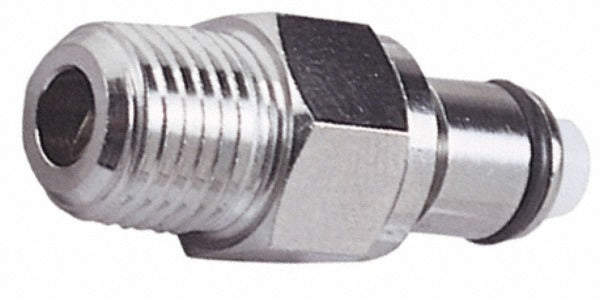

Cpc Colder Products LCD24006 Qd Valved Coupling Insert

Product Description

The CPC COLDER PRODUCTS LCD24006 is a valved quick disconnect coupling insert designed for industrial and mechanical fluid systems requiring a reliable, leak-resistant connection point. Constructed from brass with a chrome-plated finish, it features a 3/8 NPT threaded connection and a built-in valve that closes automatically when disconnected, preventing fluid loss and contamination. Rated to 250 psi maximum working pressure and tested across a temperature range of -40 to 180 degrees F, this insert suits demanding environments. Overall assembled length measures 1.22 inches with an overall height of 0.49 inches, making it a compact solution for tight installations. It weighs 0.1 pounds.

This coupling insert is suited for use in industrial fluid lines, cooling systems, hydraulic circuits, and similar plumbing applications where quick connect and disconnect capability is required without system shutdown. The NPT thread standard ensures compatibility with standard North American pipe fittings. It is appropriate for both shop fabrication and field service work where controlled fluid handling is a priority.

Key Features

• Valved design closes automatically on disconnect, stopping fluid flow and minimizing spillage
• Brass construction with chrome-plated finish for corrosion resistance and durability
• 3/8 NPT threaded connection for standard North American pipe fitting compatibility
• 250 psi maximum working pressure rating
• Wide operating temperature range: -40 to 180 degrees F
• Compact form factor: 1.22 inches overall length x 0.49 inches overall height

Compatibility

The LCD24006 is part of the CPC COLDER PRODUCTS LC Series and is designed for use with compatible LC Series quick disconnect couplings using 3/8 NPT connections in fluid handling and cooling systems.

Installation Notes

Installation should be performed by a qualified plumber or mechanical technician familiar with pressurized fluid systems. Depressurize and drain the system completely before removing or installing any quick disconnect fittings. Apply thread sealant appropriate for the fluid media and pressure rating to the NPT threads before installation. Follow applicable IPC and facility-specific codes when integrating into process or cooling lines.
